Periodic resistance testing of electrical windings can detect deterioration or contamination in the insulation which will shorten winding life. This testing is recommended to prevent major failures and to determine when corrective action should be taken.

PHENIX Technologies offers the PM5A as a multifunction insulation analyzer. This unit can be operated as a conventional Megohmmeter/Hipot or in automatic modes to perform a Dielectric Absorption Ratio Test, Polarization Index (PI) Test or Step Voltage Test. The test set provides up to 5kVDC and performs all necessary calculations to accurately determine the results. Test results can be viewed on the LCD Display or printed out via the built in printer.

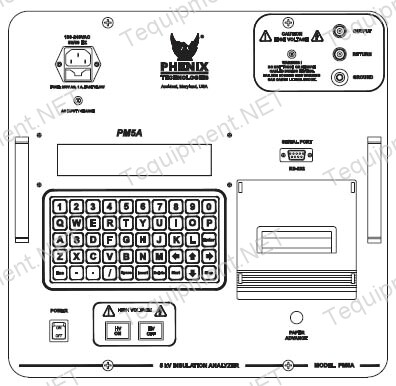

Control Panel Layout.
