Portable, rugged and ideal for field laboratory use is what describes the Phenix Technologies line of AC/DC Kilovoltmeters. Our 200kV model offer precision accuracy and lasting reliability satisfying a wide range of testing applications. If you are looking for higher voltages, just ask the experts at Phenix Technologies and we will be happy to accommodate your testing requirements.

These units consist of a high voltage divider, metering section and interconnect cables all packaged in a rugged carrying case. The unit is battery powered with a universal line voltage charger.

The Phenix KVM200 can measure in Peak Responding, Peak Value, True RMS, Average, DC as well as RMS value of DC ripple. It is compactly packaged for ease of transportation and offer excellent durability for field or laboratory use.

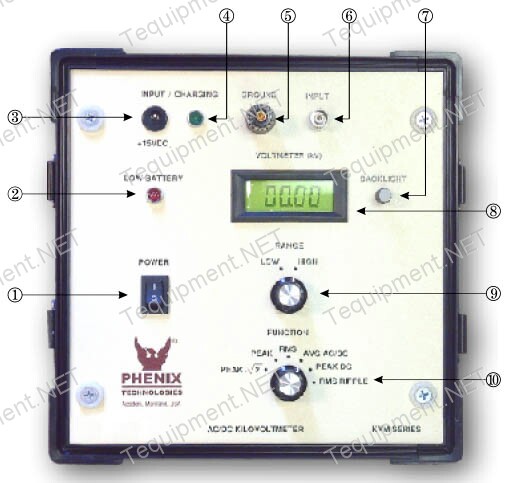

Control Panel Layout.

1. Meter Power Switch
2. Low Battery Lamp
3. External Input/Charging Jack
4. External Input/Charging Lamp
5. Ground Terminal
6. Divider Input Terminal
7. Backlight Intensity Control
8. 4½ digit Backlit LCD display
9. Range Switch
10. Voltage Measurement Selection Switch
