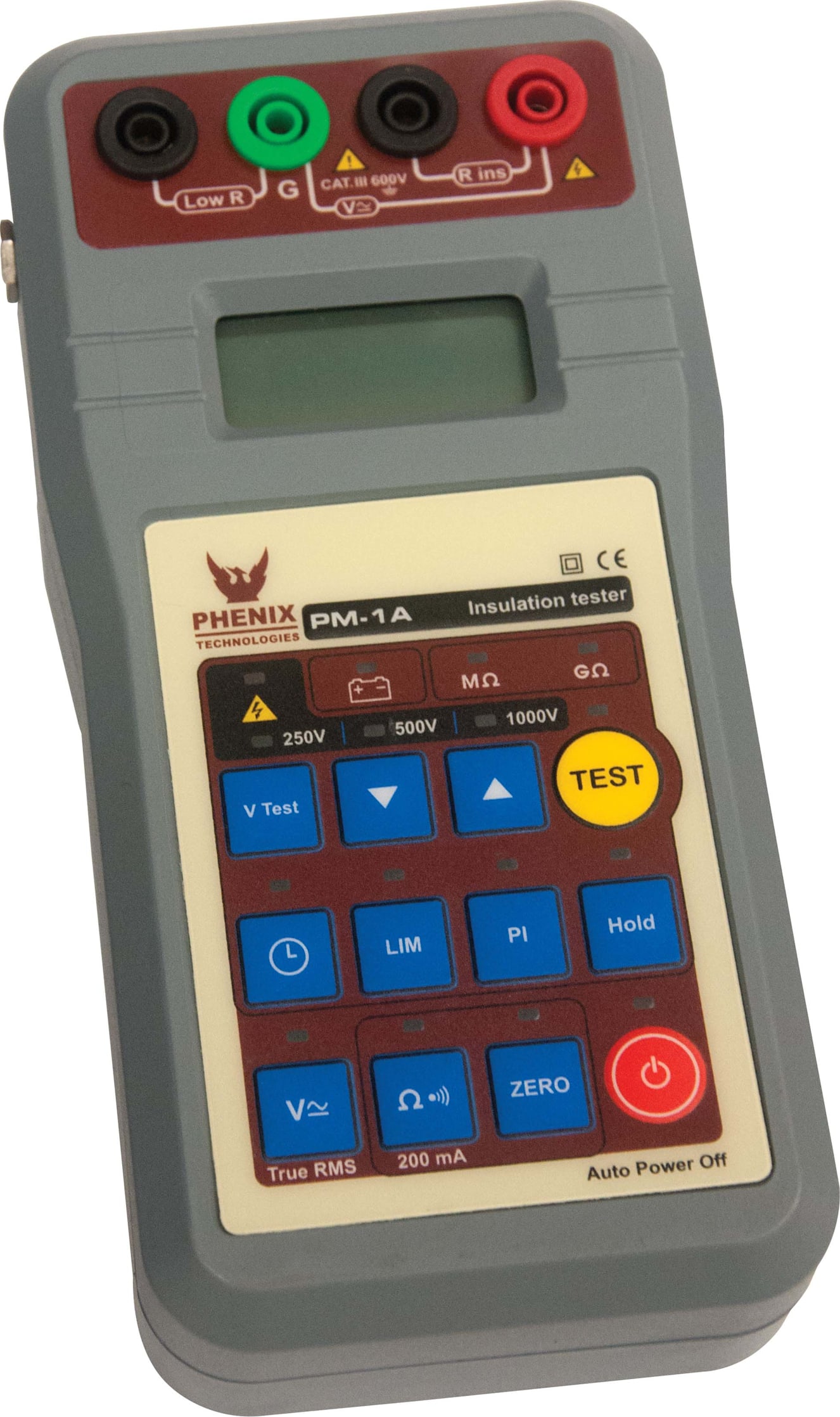

Phenix PM1A - 1kVDC Hipot/Megohmmeter

Name: Phenix PM1A - 1kVDC Hipot/Megohmmeter
Brand: Phenix
SKU: PhenixPM1A
Price: 940.00 USD
Availability: InStock

0 reviews | Model: Phenix PM1A

Compare

1kV DC 200GOhms Megohmmeter

Insulation Resistance testing up to 200GΩ
Pass / Fail test
Low Resistance and Continuity measurement
AC/DC Voltmeter up to 600V True RMS
Automatic Polarization Index
Automated testing with microprocessor controller
Auto-range
External noise rejection
Rechargeable battery
IEC compliant
Accredited 17025 Calibration

View Product Details

Your Price: $940.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Phenix PM1A 1kV DC 200GOhms Megohmmeter	Phenix PM15-2 15kVDC Hipot/Megohmmeter	Phenix PM10A 10kV DC Insulation Resistance Megohmmeter	Phenix PM5 5kVDC Hipot/Megohmmeter	Phenix PM20 20kVDC Hipot/Megohmmeter
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Phenix PM1A - 1kVDC Hipot/Megohmmeter

Insulation Resistance testing up to 200GΩ
Pass / Fail test
Low Resistance and Continuity measurement
AC/DC Voltmeter up to 600V True RMS
Automatic Polarization Index

The Phenix PM1A 1kVDC Megohmmeter perform multiple testing functions such as insulation resistance test, dielectric absorption ratio test, polarization index test, capacitance test, leakage current test, guarded current measurements, step voltage test, pass/fail test, low resistance and continuity measurement and AC/DC voltmeter up to 600 V True RMS.

General Specifications
Test Voltages	250V - 500V - 1000V DC, negative
Accuracy	-0 / +15% for resistances between 10MΩ and open circuit
Resistance Measurement	10kΩ to 200GΩ
Accuracy	±5% of reading ±2 digits
Leakage Current Measurement	Maximum 1.5mA
Accuracy	±0.3mA
Low Resistance Measurement & Continuity Tester	0.05Ω to 150Ω
Accuracy	±5% of reading ±2 digits
Test Current	up to 200mA
Continuity indicator	Activates at R <5Ω ±0.5Ω
Built-in Timer	up to 15 minutes
External Voltage Metering	0-600V AC/DC
Accuracy	±3% of reading ±2 digits
Protection	CAT. III - 600V
Input	Internal Rechargeable Battery
Basic Accuracy	R ≤50GΩ ±5% of reading ±2 digits R ≤50GΩ ±10% of reading ±2 digits
Operating Temperature	-5°C to 50°C
Storage Temperature	-10°C to 60°C
Humidity	<95%, non-condensing
Dimensions (L x W x H)	4" (102 mm) x 7.75" (195 mm) x 1.75" (46 mm)
Weight	1 lb (0.5 kgs)

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 250 V, 500 V
Maximum Insulation Resistance	200 G Ohms
Automated Test Results	Other
Type	Battery
Variable Incremental Voltage	No
Display (Megohmmeter)	Digital
Continuity Test	Yes
Live Circuit Voltage Detection	Yes
Power Supply	Battery
Timer	Yes Timer Up to 15 minutes
CAT Rating	III
CAT Voltage	600 V
Test Equipment General Attributes
Unique Features	Made in USA. Lightweight Easy to use Rugged construction
Warranty	1 YEARS
Data Logging	No
HTS/Schedule B Number	9030.33.0080
Calibration Included	Factory Calibration
Power Supply Voltage	Battery Powered
Country of Origin	United States
