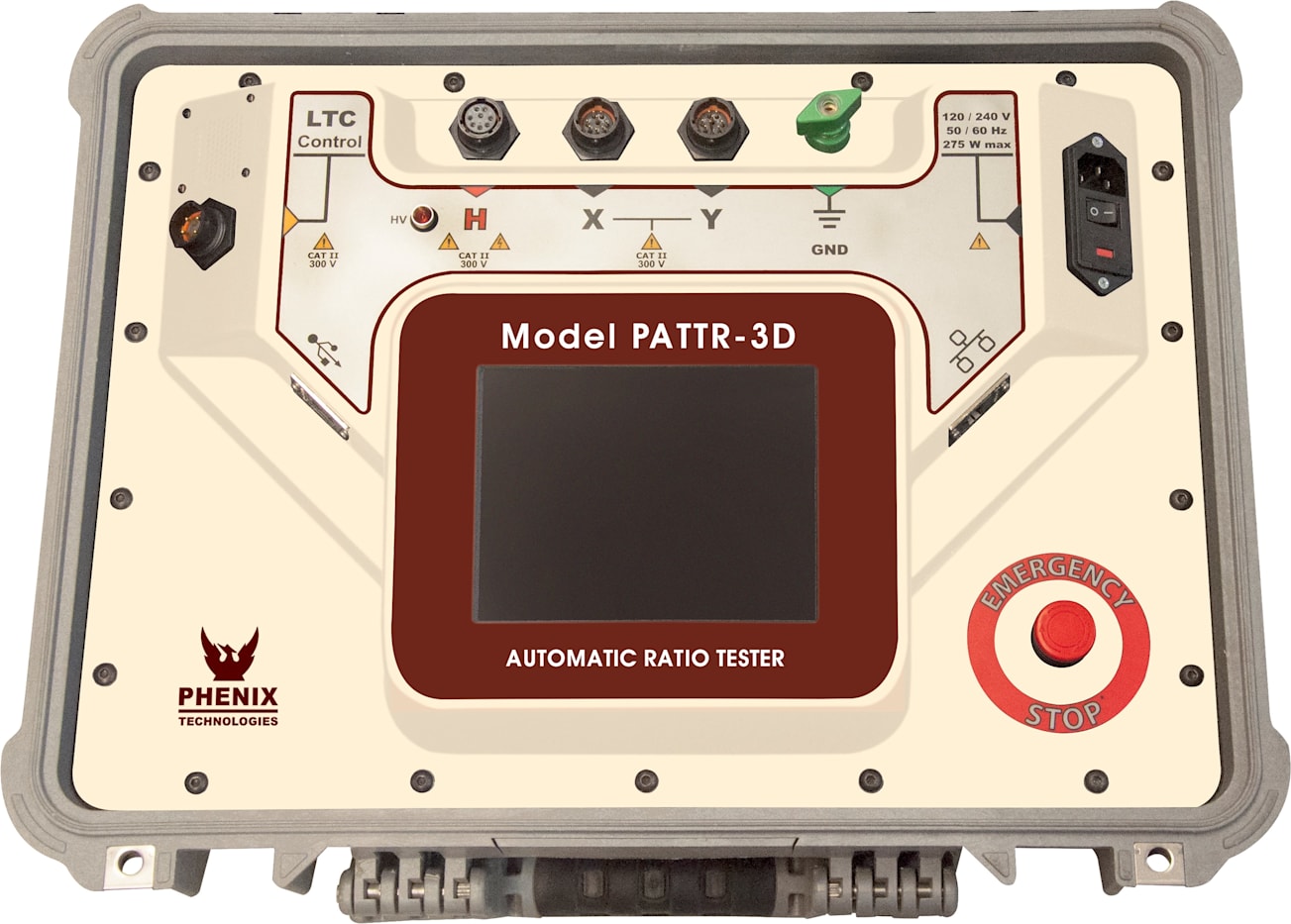

Phenix PATTR-3D-230 Three-Phase Transformer Ratio Test Set

Name: Phenix PATTR-3D-230 Three-Phase Transformer Ratio Test Set
Brand: Phenix
SKU: PhenixPATTR-3D-230
Price: 23220.00 USD
Availability: InStock

0 reviews | Model: Phenix PATTR-3D-230

Compare

Three-Phase Transformer Ratio Test Set, full color HMI

Three-Phase Transformer Ratio Test Set, full color HMI (230V
Real 3-phase test voltage output
Up to 275 Volts output for high accuracy
Optional tertiary winding channel
Fully automatic tap changer test mode
Large color, sunlight readable, touch screen display
USB thumb drive and Ethernet ports
Easy cable management

View Product Details

Your Price: $23,220.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series


Product	Phenix PATTR-3D-230 Three-Phase Transformer Ratio Test Set, full color HMI	Phenix PATTR-03D Three-Phase Transformer Ratio Test Set, full color HMI (120V)
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Phenix PATTR-3D-230 Three-Phase Transformer Ratio Test Set

Three-Phase Transformer Ratio Test Set, full color HMI (230V
Real 3-phase test voltage output
Up to 275 Volts output for high accuracy
Optional tertiary winding channel

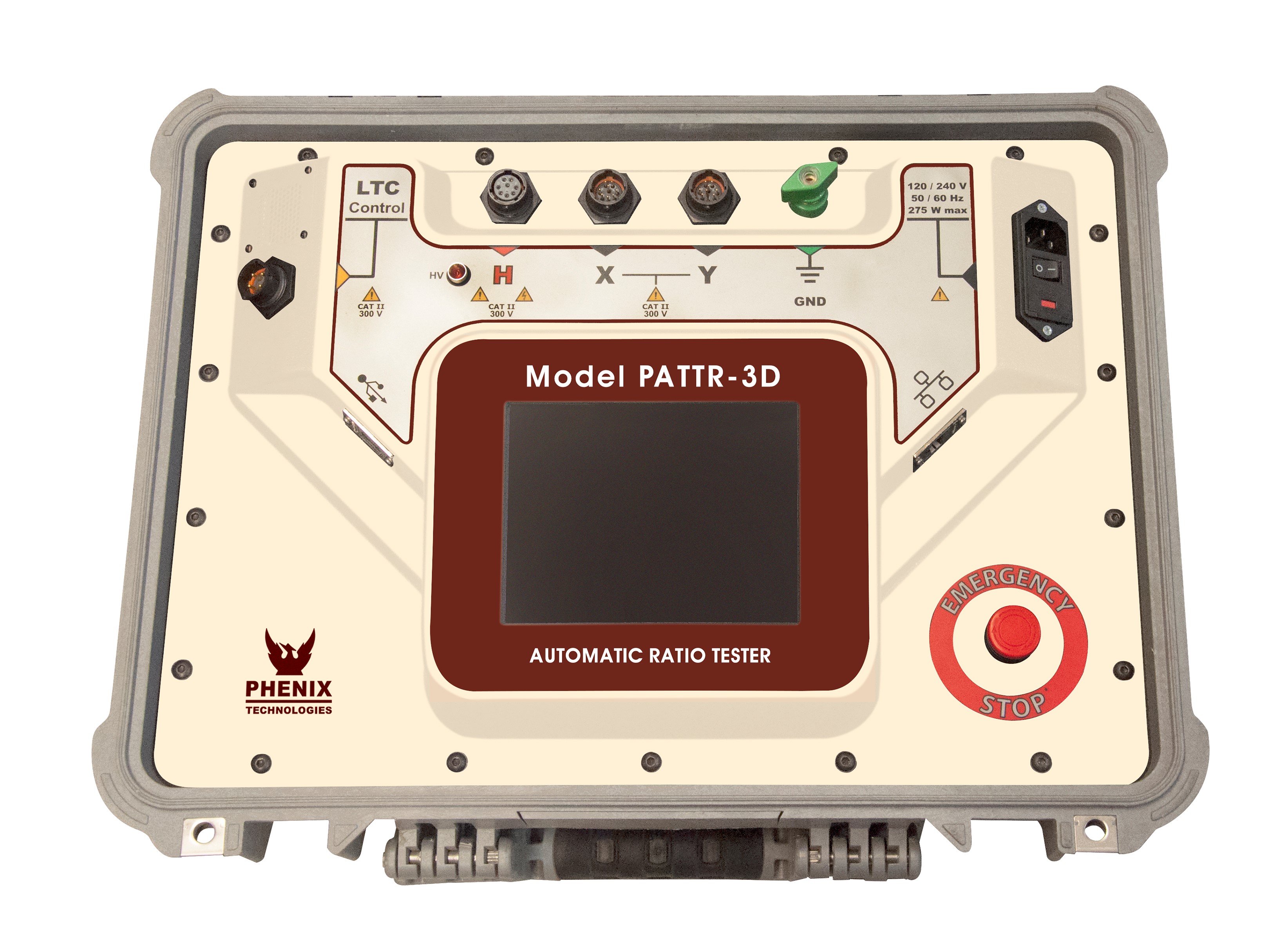

The PATTR-3D ratio meter is a high precision instrument, designed to measure turn ratios, phase displacements, excitation currents of single phase and three phase power, distribution and instrument transformers in compliance with IEEE C57.12.90 and IEC 60076 standards.

General Speicifications
Ratio range	0.6 to 50000
Ratio accuracy	0.03% from 0.8 to 1000:1 at 275 V 0.05% from 0.6 to 1000:1 with 8 V, 40 V & 100 V 0.1% from 1000 to 5000:1 0.2% from 5000 to 10000:1 0.3% from 10000 to 50000:1
Test voltages	8 V, 40 V, 100 V, 275 V
Power input	100 V to 265 V, 45-65 Hz. MUST BE SPECIFIED AT TIME OF ORDER
Phase angle range	±180 degrees
Phase angle accuracy	±0.05 degree
Phase angle resolution	±0.1 degree
Magnetizing current range	Up to 2 A
Magnetizing current accuracy	±1% of reading + 1 digit
Measuring time	5 to 10 seconds
Data Storage	> 10,000 test files
Display	Backlight 6.5" LCD, 640x480, Ultra high brightness
Data displayed	• Vector group, phase, tap position, ratio, ratio deviation, phase angle displacement, excitation current, pass-fail results • Up to 3 test files can be loaded simultaneously for comparison • Graphical and tabulated representation of test results
Interface	USB (USB memory drive), Ethernet (remote control)
Tested for	EMI, Safety
Dimensions/Weight (approx.)	55 lbs (25 kgs) 20” (508 mm) L x 16” (406 mm) W x 9” (229 mm) H
Shipping Size (approx.)	60 lbs (27 kgs) 24” (610 mm) L x 21” (533 mm) W x 15” (381 mm) H
