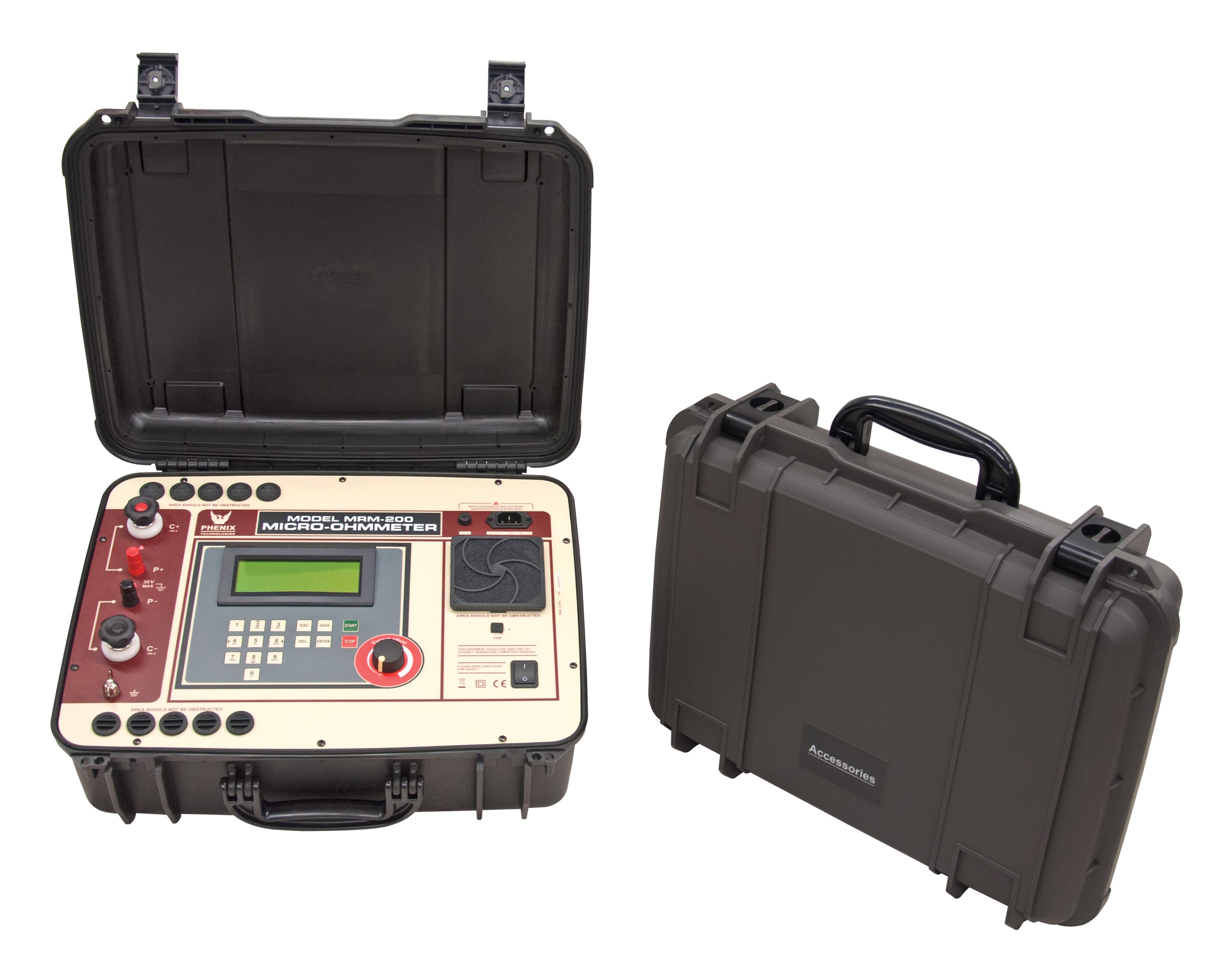

Phenix MRM-200-230 Micro-Ohm Meters 200 Amps

Name: Phenix MRM-200-230 Micro-Ohm Meters 200 Amps
Brand: Phenix
SKU: PhenixMRM-200-230
Price: 5500.00 USD
Availability: InStock

0 reviews | Model: Phenix MRM-200-230

Compare

MRM-200, 200A Max Current 0.1 Micro Ohm Resolution

Microprocessor controlled
4-wire Kelvin measurement
Easy to read digital screen display
IEC safety compliant
Separate Cable / Accessory carrying case
Accredited 17025 Calibration

View Product Details

List Price: $5,500.00

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

Accessories

Choose a Category

Warranty and Calibration

for the Phenix MRM-200-230

Phenix CAL/DATA Certificate of Calibration and Test Report

Catalog: CAL-DATA

(1)

In Stock!

Add to Cart

Phenix MRM-200 Micro-Ohm Meters MRM Series

Microprocessor controlled
4-wire Kelvin measurement
Easy to read digital screen display
IEC safety compliant

Phenix Technologies’ Microhmmeters are your contact resistance testing solution. The MRM Series will accurately measure very low contact resistances on all types of electrical products including motors, switchgear, breakers, busbars, generators, reclosers, transformers

(2) Combined test leads (current and potential), clamp type "C" (sargent), 49ft (15m)
(2) Combined test leads (current and potential), alligator clip, 16ft (5m)
(1) Ground cable
(1) Power cord
Accredited 17025 Calibration
(1) USB Communication cable
(1) Carrying case for the test leads
(1) Software license
(1) User guide

General Specifications
Model	MRM-10	MRM-10E	MRM-100A	MRM-200
Test Current	1mA - 10A	1mA - 10A	up to 100 A (true DC)	5A - 200A (True DC)
Resistance Ranges	0-2000μΩ @ 10A 0-20mΩ @ 10A 0-200mΩ @ 1A 0-2000mΩ @ 100mA 0-20Ω @ 10mA 0-200Ω @ 1mA	0-2000μΩ @ 10A 0-20mΩ @ 10A 0-200mΩ @ 1A 0-2000mΩ @ 100mA 0-20Ω @ 10mA 0-200Ω @ 1mA	0.1 μΩ to 300 mΩ	0.1μΩ to 2mΩ, with 0.1μΩ resolution 2mΩ to 200mΩ, with 10μΩ resolution 200mΩ to 1Ω, with 1mΩ resolution
Resolution	1μΩ @ 10A	0.1μΩ @ 10A	up to 0.1 μΩ	up to 0.1μΩ
Input	100-240V, 50/60Hz	100-240V, 50/60Hz	100-240 V, 50/60 Hz	100-240V, 50/60Hz
Basic Accuracy	±( 0.2% of reading ±2 digits)	±(0.1% of reading + 0.005% of full scale)	±(1% of reading ±1 digit)	±0.5% of measured value
Protection	N/A	N/A	Overcurrent, short-circuit and thermal	Overcurrent, short-circuit and thermal
Operating Temperature	-5°C to 50°C	-5°C to 50°C	-5°C to 50°C	-5°C to 50°C
Storage Temperature	-25°C to 65°C	-25°C to 65°C	-10°C to 60°C	-10°C to 60°C
Humidity	<90%, non-condensing	<90%, non-condensing	<90%, non-condensing	<90%, non-condensing
Advanced Features	Powered by rechargeable battery Measured value display hold function	Powered by rechargeable battery Measured value display hold function	Programmable set-up test time 5-120 seconds Software w/ automatic report generator, including operator's comments Built-in memory with capacity to store 50 registers with 80 readings each Built-in-Printer	Programmable set-up test time 5-120 seconds Software w/ automatic report generator, including operator's comments Built-in memory with capacity to store 50 registers with 80 readings each
Dimensions (L x W x H)	15" (378mm) x 12" (308mm) x 7" (175mm)	15" (378mm) x 12" (308mm) x 7" (175mm)	20" (502mm) x 15.5" (394mm) x 7.5" (190mm)	20" (502mm) x 15.5" (394mm) x 7.5" (190mm)
Weight	19 lbs (8.7 kgs)	17 lbs (7.6 kgs)	45 lbs (20.5 kgs)	45 lbs (20.5 kgs)

Tech Specs

Micro / Milli / Meg Ohmmeters/Micro-Ohmmeter / DLRO / Bond Testing Template
Maximum Test Current	200 A
Variable Test Current	Yes
Line Power or Battery power	Battery Power, Line Power
Kelvin Four-Terminal Measurement	Yes
Test Equipment General Attributes
Warranty	1 YEARS
Product Height	16.00 IN
Product Length	8.00 IN
Product Width	20.00 IN
HTS/Schedule B Number	9030.33.0080
Country of Origin	United States
Shipping Height	16.00 IN
Shipping Length	8.00 IN
Shipping Width	20.00 IN
