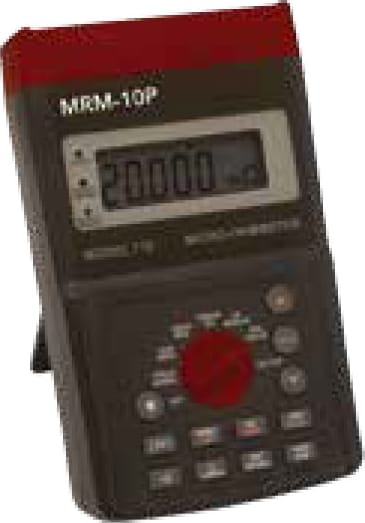

Phenix MRM-10P Micro-Ohm Meters, 10A Max, 500 Micro Ohm Min Reading

Name: Phenix MRM-10P Micro-Ohm Meters, 10A Max, 500 Micro Ohm Min Reading
Brand: Phenix
SKU: PhenixMRM-10P
Price: 2600.00 USD
Availability: InStock

0 reviews | Model: Phenix MRM-10P

Compare

MRM-10P, 10A Max, 500 Micro Ohm Min Reading. Battery/Line Power

10A Max, 500 Micro Ohm Min Reading. Battery/Line Power
Manual or Auto Range (6 ranges of current measurement, plus 3 ranges within each current range).
Measurement of resistive and inductive materials (Two terminal measurement; Four terminal Kelvin measurement)
Programmable Hi-Lo alarm with memory of 20 data. Auto-judgments of Hi (readings higher than Hi-Limit), Lo (readings lower than Lo-Limit) and Pass (readings between Hi-Lo Limits). Alarm (beeper) for Hi and Lo.
Readings Hold function
Communicate with PC via RS232C (to USB bridge) cable.

View Product Details

List Price: $2,600.00

In Stock:

View Payment Options

Recommended for you

Phenix MRM Series Micro-Ohm Meters

MRM-10P Micro-Ohm Meters, 10A Max, 500 Micro Ohm Min Reading

The MRM Series will accurately measure very low contact resistances on all types of electrical products including switches and circuit breaker contacts, transformer and motor windings, wire and cable samples, joints in busbars, or any application where low resistance current is required.

General Specifications
TEST CURRENT	100 µA - 10 A
RESISTANCE RANGES	0.4 mΩ-60 mΩ @ 10 A 4 mΩ-600 Ω @ 1 A 0.04 Ω-6 Ω @ 100 mA 0.4 Ω-60 Ω @ 10 mA 4 Ω-600 Ω @ 1 mA 40 Ω-6000 Ω @ 100 µA
RESOLUTION	1 µΩ @ 10 A
INPUT	100-240 V, 50/60 Hz
BASIC ACCURACY	±( 0.25% of reading ± 25 µΩ)
PROTECTION	Overcurrent, short-circuit and thermal
OPERATING TEMPERATURE	14°F to 122° F (-10°C to 50°C)
STORAGE TEMPERATURE	-4°F to 140° F (-20°C to 00°C)
HUMIDITY	<95%, non-condensing
DIMENSIONS	Length: 6” (152 mm) Width: 2.5” (64 mm) Height: 11” (279 mm) WEIGHT: 3 lbs (1.4 kgs)

Tech Specs

Test Equipment General Attributes
Product Height	6.00 IN
Product Length	11.00 IN
Product Width	3.00 IN
HTS/Schedule B Number	9030.33.3800
ECCN Number	3A922a
Country of Origin	Canada
Shipping Height	6.00 IN
Shipping Length	11.00 IN
Shipping Width	3.00 IN
