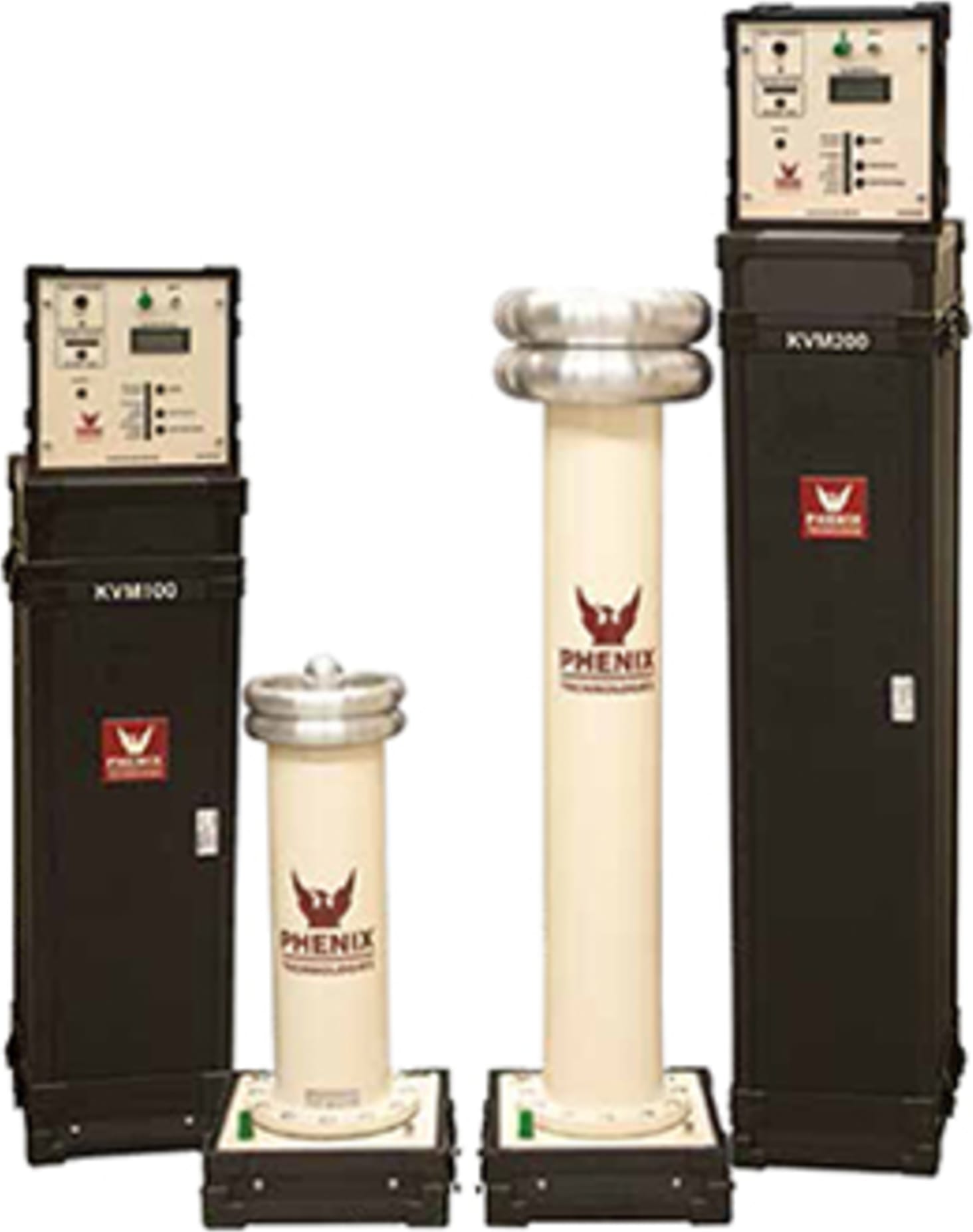

Phenix KVM50A 50 kV AC/DC Kilovoltmeter

Name: Phenix KVM50A 50 kV AC/DC Kilovoltmeter
Brand: Phenix
SKU: PhenixKVM50A
Price: 8420.00 USD
Availability: InStock

0 reviews | Model: Phenix KVM50A

Compare

50 kV AC/DC Kilovoltmeter

Input Power: 100-240 VAC, 0.4 A, 47-63 Hz, Single Phase
Battery Power: 9.6 V, Ni-MH, 3200 mA hr
Input Charging Jack: +15 VDC, 1.5 A
Precise and reliable
Battery or line powered
Compactly packaged in a rugged carrying case

View Product Details

Your Price: $8,420.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Phenix KVM50A 50 kV AC/DC Kilovoltmeter

AC/DC Kilovoltmeter

Precise and reliable
Battery or line powered
Compactly packaged in a rugged carrying case

Phenix Technologies’ AC/DC Kilovoltmeters voltage measurement functions include AC Average, AC RMS, AC Peak, AC Peak/√2, DC Average, DC Peak, DC Ripple. Traceable to NIST standards, units can be used for calibration and general high voltage measurements. Voltage divider can also be used with other measuring devices such as an oscilloscope or multimeter. These units are precise, reliable, and satisfy a wide range of testing applications.

Model: KVM50A Specifications
Input Power	100-240 VAC, 0.4 A, 47-63 Hz, Single Phase
Battery Power	9.6 V, Ni-MH, 3200 mA hr
Input Charging Jack +15 VDC, 1.5 A
Resolution	Range
1 VOLT	0-20 kV
10 VOLT	0-50 kV
100 VOLT	n/a
High Voltage Input
Low Range	0-30 kV AC/DC
High Range	0-50 kV AC/DC
Peak	AC 0-71 kV
Divider Impedance
Resistance	300 M Ohms
Capacitance	15 pF
RATIO	10,000:1
Dimensions & Weight
Length	9 1/2” (241 mm)
Width	9 1/2” (241 mm)
Height	30 1/2” (775 mm)
Weight	30 lbs (14 kgs)
Shipping Size
Length	14” (356 mm)
Width	14” (356 mm)
Height	36” (914 mm)
Weight	36 lbs (16 kgs)

Tech Specs

Test Equipment General Attributes
Product Height	20.00 IN
Product Length	14.00 IN
Product Width	14.00 IN
HTS/Schedule B Number	9030.39.0100
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	20.00 IN
Shipping Length	14.00 IN
Shipping Width	14.00 IN
