180 kVAC, 18 mA Bucket Truck Tester
Phenix Technologies offers a rugged, The BK line of test equipment startsportable line of AC high voltage equipment for dielectric testing of aerial lift platforms and trucks. These units provide a complete testing solution in one convenient package. The standard safety features combined with advanced metering make the Phenix line of aerial lift high voltage test systems the premium choice for testing single trucks to maintaining a whole fleet.

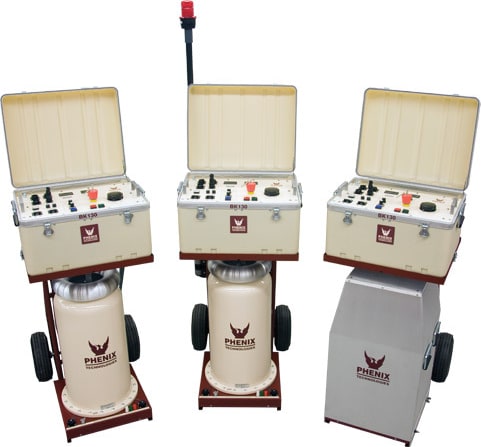

The BK line of test equipment starts with the model BK130/36 which has the capability to test booms and liners to the boom only test equipment which is covered by models BK60 and BK180.
The precision digital metering equipped with a guard circuit to eliminate stray leakage currents ensures only boom leakage is measured. Standard safety features include a zero start interlock, adjustable output overload circuit and short and long term thermal magnetic protection.
The oil-filled high voltage section is built in a rugged, fiberglass reinforced insulating tank which is light weight and durable for years of field use.
Testing Applications
-
Ideal for testing aerial lift devices and elevated platforms
-
Capable of testing double and horseshoe liners (BK130/36)
-
Complies with latest ANSI and IEC standards (A92.2 / IEC 61813)
-
Suitable for common dielectric and insulation testing requirements
