Phenix 660-10PA-230 60kVAC, 10 mA, Vacuum Bottle Test Set (230V) with Bluetooth

Name: Phenix 660-10PA-230 60kVAC, 10 mA, Vacuum Bottle Test Set (230V) with Bluetooth
Brand: Phenix
SKU: Phenix660-10PA-230
Price: 23620.00 USD
Availability: InStock

0 reviews | Model: Phenix 660-10PA-230

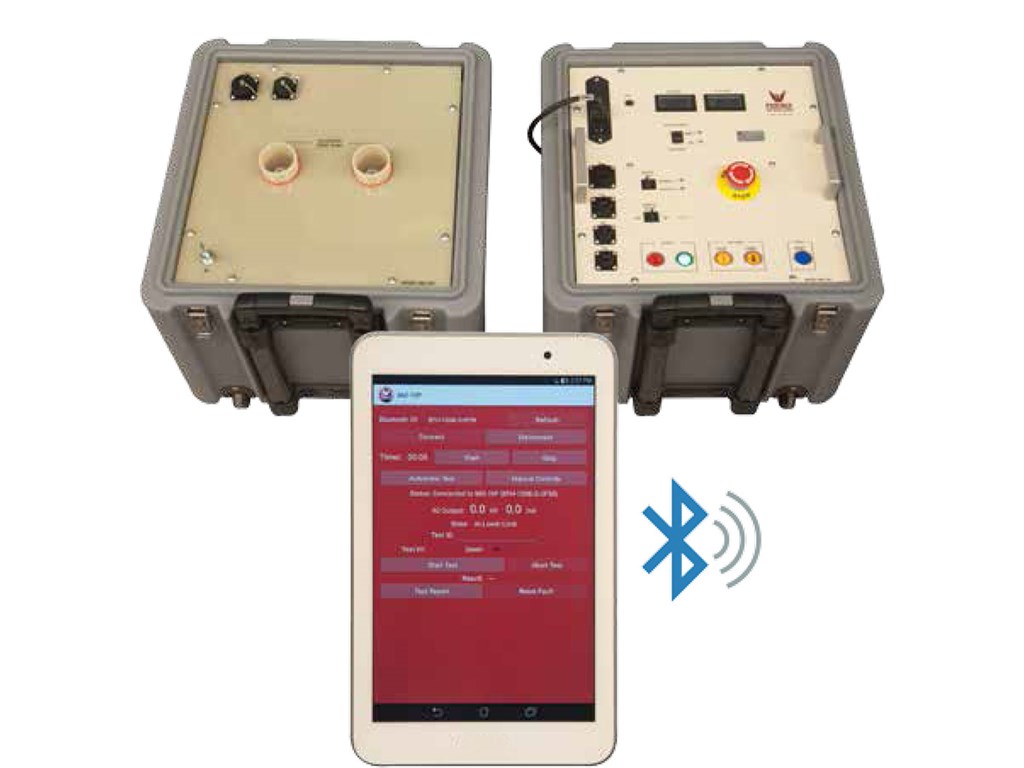

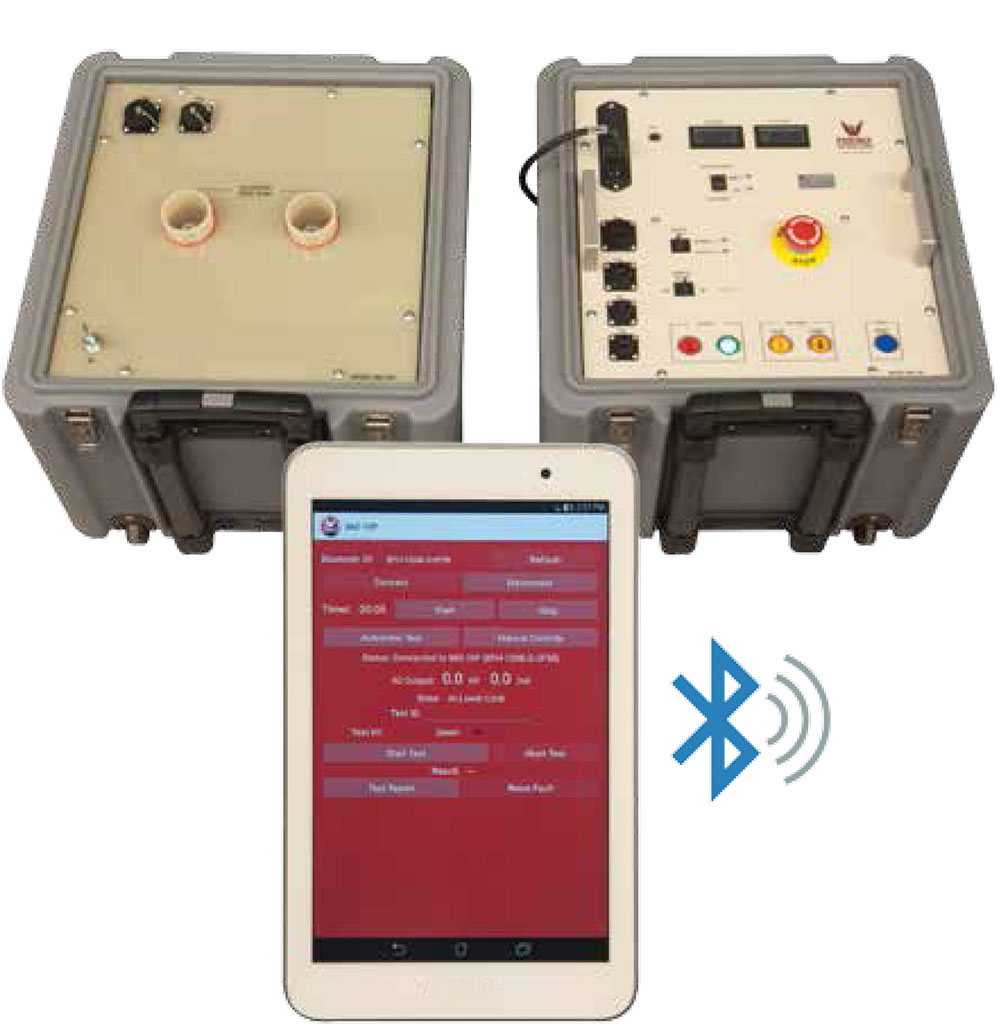

Phenix 600 Series Portable AC Dielectric Test Set

Compare

60kVAC, 10 mA, Vacuum Bottle Test Set (120V)w. Bluetooth

60kVAC, 10 mA, Vacuum Bottle Test Set (230V) with Bluetooth
Test report generation and test data storage
Safety foot switch with 10’ cable
Shielded high voltage output cables with plug-in connectors
Selectable rate of rise, 500 and 3000 volts per second
Emergency Off pushbutton
Slow and fast-acting transient protection on all meters and relays
Failure indicator with reset switch
Digital, direct-reading output voltmeter with memory feature
Digital, direct-reading output currentmeter
120 or 220 V input, customer selectable
2-piece design
Center-tapped high voltage transformer
High voltage On/Off pushbuttons with indicator
Automated or Manual control of output voltage
Remote control via Bluetooth connection (Android tablet and software included)
External interlock provision
Warning circuit
Wheeled case for easy mobility
Heavy duty canvas bag for cable storage

View Product Details

Your Price: $23,620.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series


Product	Phenix 660-10PA-230 60kVAC, 10 mA, Vacuum Bottle Test Set (120V)w. Bluetooth	Phenix 6CP100/50-7.5-230 100kVAC, 75mA/50KV, 150mA (66% Comp, 120V)	Phenix 6CP30/15-3-230 30kVAC, 100mA/15kAVC, 200 mA (50% Comp., 120V)	Phenix 640-0.4P 40kVAC, 10 mA, Vacuum Bottle Test Set (120V)	Phenix 6CP100/50-7.5 100kVAC, 75mA/50KV, 150mA (66% Comp, 120V)	Phenix 6CP100/50-10 100kVAC, 100mA/50KV, 200mA (50% Comp, 230V Only)	Phenix 6CP120/60-10 120kVAC, 83mA/60KV, 166mA (50% Comp, 230V Only)	Phenix 6CP120/60-7.5 120kVAC, 62.5mA/60KV, 125mA (66% Comp, 120V)	Phenix 6CP120/60-7.5-230 120kVAC, 62.5mA/60KV, 125mA (66% Comp, 120V)	Phenix 6CP200/100-10 200kVAC,50mA/100kVAC, 100mA (50% Comp, 230V Only)	Phenix 6CP30/15-3 30kVAC, 100mA/15kAVC, 200 mA (50% Comp., 120V)	Phenix 6CP50/10-3 50kVAC, 60 mA/10kV, 300mA (50% Comp,120V)	Phenix 6CP50/10-3-230 50kVAC, 60 mA/10kV, 300mA (50% Comp,120V)	Phenix 660-10PA 60kVAC, 10 mA, Vacuum Bottle Test Set (120V)w. Bluetooth	Phenix 640-0.4P-230 40kVAC, 10 mA, Vacuum Bottle Test Set (230V)
Price
In Stock
Test Type Hipot		AC	AC	AC	AC	AC	AC	AC	AC	AC	AC	AC	AC		AC
Max AC Test Voltage		100 kV	30 kV	40 kV	100 kV	100 kV	120 kV	120 kV	120 kV	200 kV	30 kV	50 kV	50 kV		40 kV
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Phenix 660-10PA-230 Accessories

Choose a Category

General Accessories
Hipot Enclosures

for the Phenix 660-10PA-230

Cortek SE-MAT Insulation Mat

Catalog: SE-MAT

(0)

In Stock!

Add to Cart

Cortek SE-2420 Hipot Electrical Safety Enclosure, OD: 24" W x 20" D x 12.5" H

Catalog: SE-2420

(0)

In Stock!

Add to Cart

Cortek SE-3624 Hipot Electrical Safety Enclosure, OD: 36" W x 24" D x 16" H

Catalog: SE-3624

(0)

In Stock!

Add to Cart

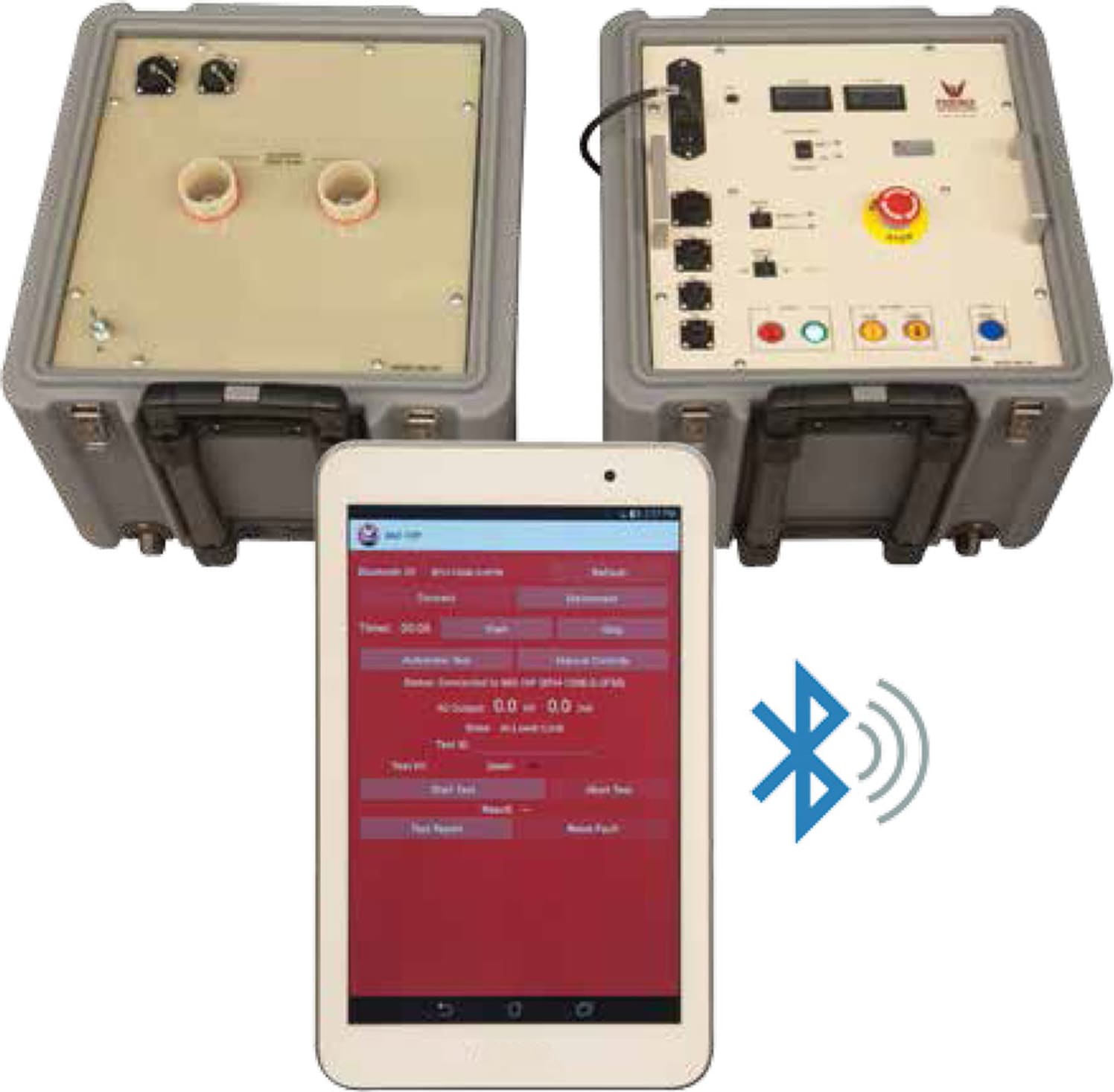

Phenix 600 Series Portable AC Dielectric Test Set

60kVAC, 10 mA, Vacuum Bottle Test Set (230V) with Bluetooth

Test report generation and test data storage
Safety foot switch with 10’ cable
Shielded high voltage output cables with plug-in connectors
Selectable rate of rise, 500 and 3000 volts per second
Emergency Off pushbutton

The Phenix offers the new model of AC Vacuum Interrupter Test Sets with ratings from 40 kV to 60 kV which are suited for testing a wide range of electrical equipment. These units are lightweight and ruggedly constructed for field use. Each unit provides easy to read digital instrumentation and clean efficient controls.

Testing Applications

Designed primarily for vacuum interrupter testing; however, unit can be used for testing breakers, switch gear and many other apparatus.

Control and Metering Description

Phenix_660-10P-230-desc

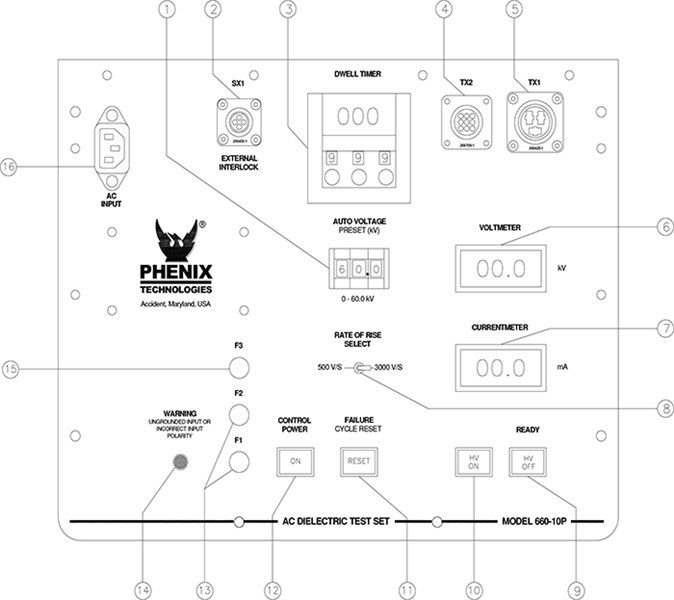

Auto Voltage Preset. Press (+) and (-) buttons to select desired test level. Range 00.0 to 60.0 kV
SX1 Connector. Provision for connecting external interlocking switching loop. Open loop prevents high voltage turn on
Dwell Timer. Rotate knobs to preset desired test dwell time. Test time is displayed digitally
TX2 Connector. Connect mating cable to high voltage tank. Metering circuits
TX1 Connector. Connect mating cable to high voltage tank. Power circuits
Output Voltmeter. Dual function digital meter displaying output voltage or failure voltage directly in kilovolts
Output Currentmeter. Digital currentmeter to directly display the test current in milliamperes
Rate of Rise Select. Switch to select desired rate of rise (500 V/S or 3000 V/S)
HV Off Switch/Ready Indicator. Press to turn high voltage off and to abort testing cycle. Lights when high voltage can be turned on
HV On Switch/Indicator. Press to turn high voltage on and to start testing cycle. Lights when high voltage is on. High voltage will not turn on until Ready indicator is lit or if Failure indicator is lit
Failure Indicator/Cycle Reset Switch. Lights to show that failure has occurred or cycle has completed. Press to reset memory meter, cycle and failure detector circuits so that testing may proceed
Control Power On Switch/Indicator. Press to turn on control power. Lights to show that control power is on
Input Power Fuses F1 and F2. Connect power cord to main power source. Main fuses to protect entire test set (10A/120V or 5A/220V)
Fault Indicator. Lights if unit not grounded or line and neutral inputs are reversed. Correct fault so light is out before operating unit
F3 Fuse. Protects primary circuit of high voltage transformer (5A Slo Blow/120V or 5A/220V)
Power Input Connector

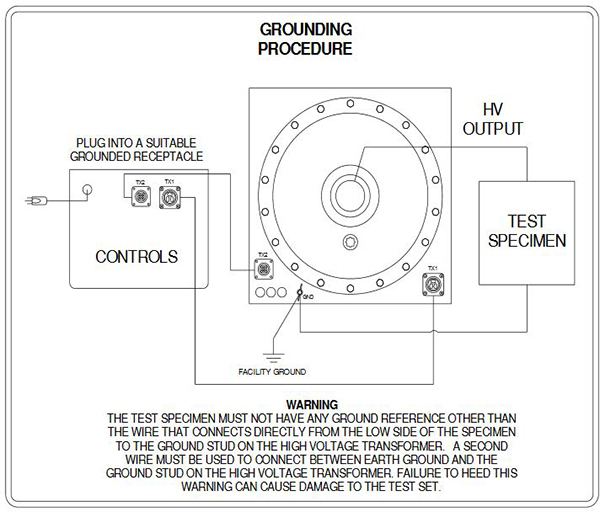

Connections and Grounding

Position set in the desired location
Ground set by use of ground terminal on base of high voltage transformer
Connect TX1 and TX2 cables between controls and high voltage transformer
Connect SX1 - external interlock circuit as appropriate
Connect return lead, provided, to low side of test specimen
Connect high voltage output to high side of test specimen
Connect main power cord to appropriate receptacle

(Further instructions on test connections may be found in ANSI C37-60.)

General Specifications
Input
Voltage/Current	110-120 V, 6 A 220-240 V, 3 A
Frequency	50/60 Hz
Output
Voltage/Current	±30 kV, total of 60 kV, 10 mA
Duty Cycles	5 min ON/15 min OFF @ 10 mA
Digital Metering
Metering Accuracy	0.8% Reading +0.2% Full Scale
Voltmeter Range(s)	0-60 kV
Currentmeter Range(s)	0-10 mA
Dimension and Weights
Controls
Length	17" (432 mm)
Width	18" (457 mm)
Height	19" (483 mm)
Weigh	57 lbs (26 kgs)
HV Section
Length	17" (432 mm)
Width	18" (457 mm)
Height	19" (483 mm)
Weight	55 lbs (25 kgs)
Shipping Size
Length	20" (508 mm)
Width	20" (508 mm)
Height	31.5" (800 mm)
Weight	66 lbs (30 kgs)
Cables Included
Input Power	8'(2.4 m)
Power Interconnect	10'(3m) (2)
Ground	10'(3m)
Output	5' (1.5 m)

Test Equipment General Attributes
HTS/Schedule B Number	9030.33.0080
Country of Origin	United States
