Phenix 46CP100/120-3.75/10-230 100kVAC 37.5mA / 120kVDC 10mA AC/DC Dielectric Test Hipot w. Cart (230V)

Name: Phenix 46CP100/120-3.75/10-230 100kVAC 37.5mA / 120kVDC 10mA AC/DC Dielectric Test Hipot w. Cart (230V)
Brand: Phenix
SKU: Phenix46CP100/120-3.75/10-230
Price: 30240.00 USD
Availability: InStock

0 reviews | Model: Phenix 46CP100/120-3.75/10-230

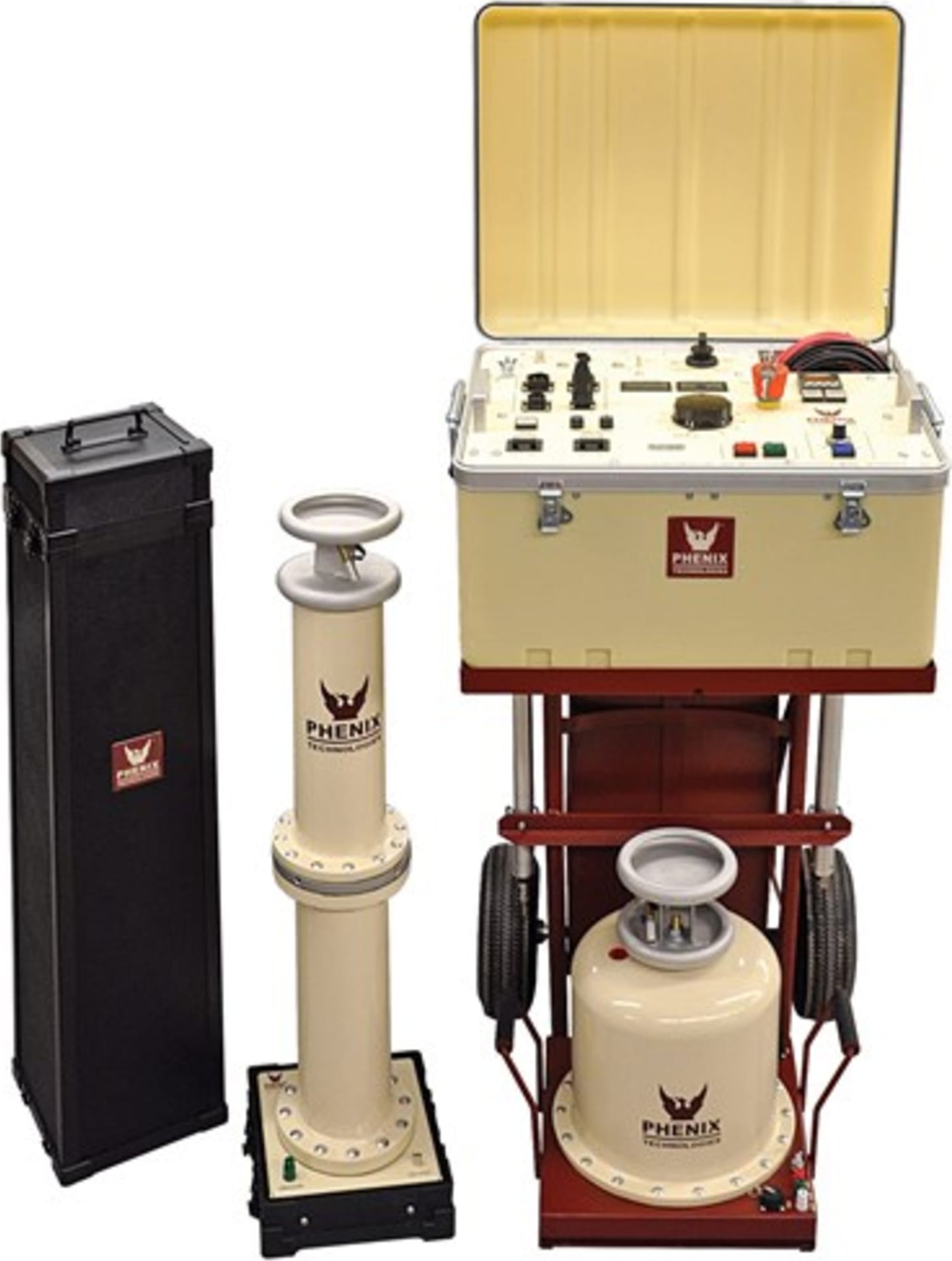

Phenix 46CP100-120-3.75-10-230 Dielecric Test Sets

Compare

100kVAC 37.5mA / 120kVDC 10mA AC/DC Hipot* w. Cart

Cannot Ship Air

100kVAC 37.5mA / 120kVDC 10mA AC/DC Hipot w. Cart (230V)
Circuit breaker protection
External interlock provision
High voltage On/Off push buttons with indicator
Zero Start Interlock
Manual control of output voltage
Adjustable overload circuit
Slow and fast-acting transient protection on all meters and relays
Digital timer with audible alarm
Emergency Off push button with key lockout
Guard mode for accurate current measurements
Output overload indicator with reset switch
Direct metering of the output

View Product Details

Your Price: $30,240.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series


Product	Phenix 46CP100/120-3.75/10-230 100kVAC 37.5mA / 120kVDC 10mA AC/DC Hipot* w. Cart	Phenix 46CP100/120-3.75/10 100kVAC 37.5mA / 120kVDC 10mA AC/DC Hipot w. Cart (120V)	Phenix 46CP50/70-2-10 High Voltage AC/DC Dielectric Test Set 50kVAC-40mA/70kVDC-10mA w. Ca ...	Phenix 46CP50/70-2/10-230 50kVAC 40mA /70kVDC 10mA AC/DC Hipot w. Cart
Price
In Stock
Test Type Hipot	AC, DC	AC, DC	AC, DC	AC, DC
Max AC Test Voltage	100 kV	100 kV	50 kV	50 kV
Max DC Test Voltage	120 kV	120 kV	70 kV	70 kV
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Phenix 46CP100/120-3.75/10-230 Accessories

Choose a Category

for the Phenix 46CP100/120-3.75/10-230

Phenix DS100-2 100 kVDC Discharge Stick

Catalog: DS100-2

(1)

In Stock!

Add to Cart

Phenix FL-1 Flashing Light on Extender Arm for Portable Systems

Catalog: FL-1

(0)

In Stock!

Add to Cart

Phenix FL-2 Flashing Light ONLY w/Magnetic Base

Catalog: FL-2

(0)

In Stock!

Add to Cart

Phenix GS100-2 100 kVDC or 100 kVAC Ground Stick (2 piece)

Catalog: GS100-2

(0)

In Stock!

Add to Cart

Phenix GS160-2 160 kVDC or 100 kVAC Ground Stick (2 Piece)

Catalog: GS160-2

(0)

In Stock!

Add to Cart

Phenix GS30 30kV Ground Stick

Catalog: GS-30

(0)

In Stock!

Add to Cart

Phenix GSDS-30 30kV Combination Ground and Discharge Stick

Catalog: GSDS-30

(0)

In Stock!

Add to Cart

Phenix KVM-METER-HEAD KVM Metering Head Requires 10000:1 Ratio Divider

Catalog: KVM-METER-HEAD

(0)

In Stock!

Add to Cart

Cortek SE-MAT Insulation Mat

Catalog: SE-MAT

(0)

In Stock!

Add to Cart

Phenix FL-3 Red/Green Light w/Folding Base, Telescoping Pole, Security Circuit

Catalog: FL-3

(0)

In Stock!

Add to Cart

Phenix FL-4 Flashing Light w/Security Circuit and Magnetic Base

Catalog: FL-4

(0)

In Stock!

Add to Cart

Cortek SE-2420 Hipot Electrical Safety Enclosure, OD: 24" W x 20" D x 12.5" H

Catalog: SE-2420

(0)

In Stock!

Add to Cart

Cortek SE-3624 Hipot Electrical Safety Enclosure, OD: 36" W x 24" D x 16" H

Catalog: SE-3624

(0)

In Stock!

Add to Cart

Phenix 46CP100/120-3.75/10-230 AC/DC Dielectric Test Sets

100kVAC 37.5mA / 120kVDC 10mA AC/DC Hipot w. Cart (230V)
Circuit breaker protection
External interlock provision
High voltage On/Off push buttons with indicator
Zero Start Interlock
Manual control of output voltage

Perform both AC and DC dielectric testing of a wide range of electrical apparatus with Phenix Technologies 46CP series AC/DC Hipots. The mobile 3-piece design with hand cart is ruggedly constructed and simple to set-up and operate.

Options

KVM Metering Head - turns High Voltage Divider into fully functional 100kV AC/DC Kilovoltmeter with specifications as described in Phenix Technologies.
Positive polarity output (must be specified when ordering)
Model GS100-2 (100kV) or GS160-2 (160kV) Ground Stick, 2-piece design with 25' (7m) ground lead
Model GS30 (30kV) Ground Stick, single piece design with 25' (7m) ground lead
Model DS100-2 (100kV, 100kΩ, 50kJ) Discharge Stick, 2-piece design with 25' (7m) ground lead
Model GSDS-30 (30kV) Combination Ground/ Discharge Stick with 25' (7m) ground lead

Environmental Conditions

10-40°C, indoor/outdoor in fair weather
Humidity <95% non-condensing
Altitude <3300 ft (1000 meters)

Testing Applications

Mobile 3-piece design with hand cart
Ruggedly constructed for both indoor and outdoor use
Simple set-up and operation

General Specifications
Model		46CP50/70-2/10	46CP100/120-3.75/10
Input	Voltage/Current	110-120 V, 15 A 220-240 V, 10 A	110-120 V, 30 A 220-240 V, 20 A
Input	Frequency	50/60 Hz	50/60 Hz
Output	Voltage/Current	~0-50 kV AC, 40 mA ~0-70 kV DC, 10 mA Negative output, positive ground	~0-100 kV AC, 37.5 mA ~0-120 kV DC, 10 mA Negative output, positive ground
Duty cycle		5 min ON / 15 min OFF at 2 kVA	5 min ON / 15 min OFF at 3.75 kVA
Digital metering	Metering Accuracy	±(0.8% of Reading +0.2% Range)	±(0.8% of Reading +0.2% Range)
	Voltmeter Range	0-70 kV AC/DC	0-120 kV AC/DC
	Currentmeter Range	Multiple range up to 40 mA	Multiple range up to 40 mA

Safety Testing / Surge Testing/Hipot Tester Template
Test Type Hipot	AC, DC
Max AC Test Voltage	100 kV
Max DC Test Voltage	120 kV
Min AC Test Voltage	0 V
Min DC Test Voltage	0 V
Max Trip Current AC Test	10 mA
Min Trip Current AC Test	0 mA
Max Trip Current DC Test	10 mA
Min Trip Current DC Test	0 mA
Programmable (hipot)	Yes
Insulation Resistance Test	No
Connection Type	Probe
Arc Detection	No
Scanning control capable for Multipoint Testing	No
Test Equipment General Attributes
Warranty	1 YEARS
Data Logging	No
HTS/Schedule B Number	9030.33.0080
Calibration Included	NIST Calibration
Power Supply Voltage	120V 50/60 Hz, 220V Only, 240V Only
Country of Origin	United States
