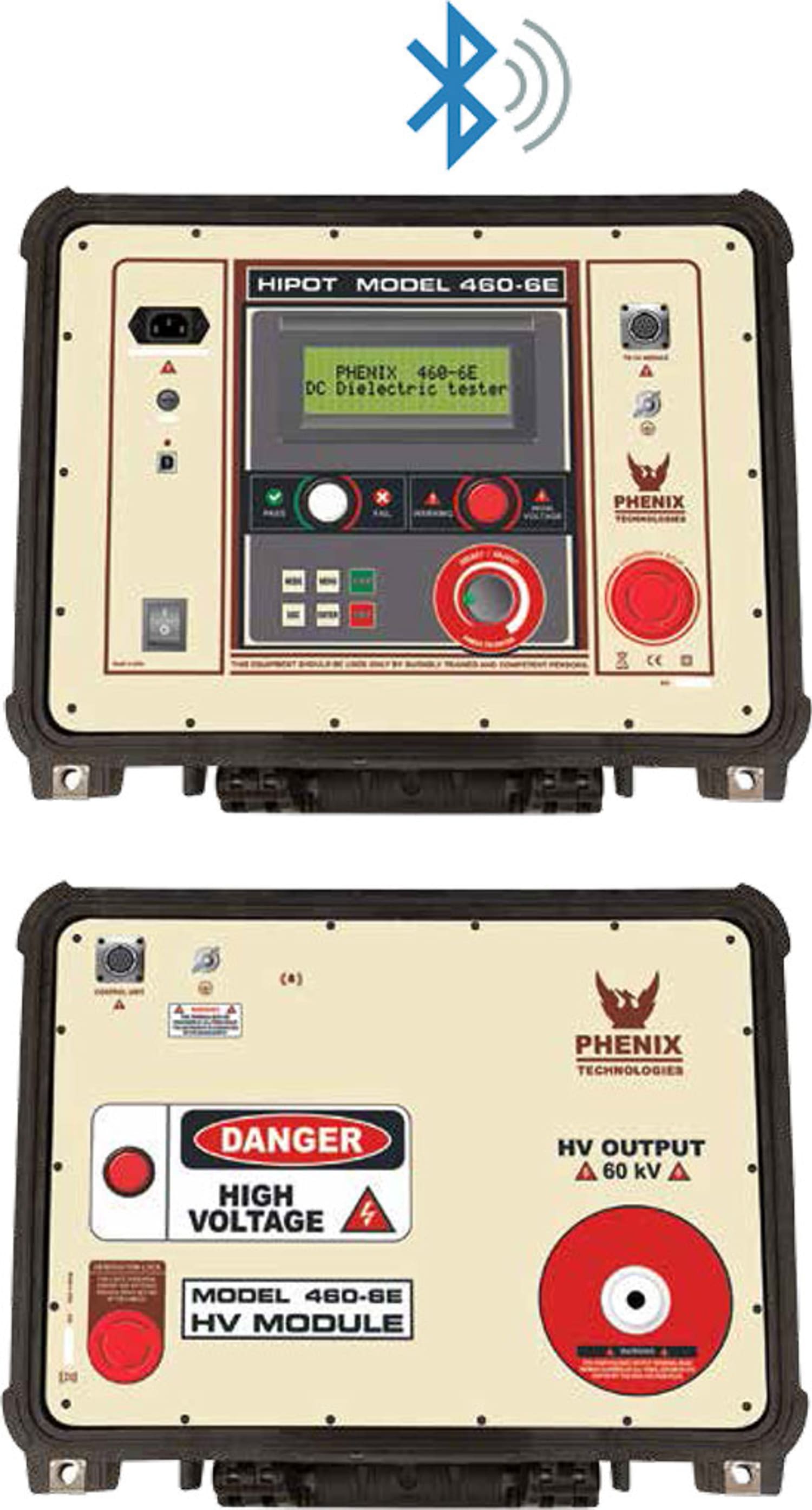

The model 460-6E smart DC hipot is a cutting-edge dielectric test instrument designed with an emphasis on operator safety, versatility and ease of use. Complying with the most rigorous safety requirements, the system is divided into two modules, a control unit and a high voltage generation unit. Additional safety features include an emergency stop switch and a built-in sound alarm. Furthermore, the ability to fully remote control the instrument from an Android device — both to program the settings as well as to perform the tests — provides increased safety protection and greater comfort for the operator. A built-in microprocessor allows the user to adjust the output voltage, test duration, maximum leakage current and ramp slope, allowing for more complex tests to be carried out automatically

• Lightweight and ruggedly constructed for years of field use
• Remote control via Bluetooth connection to Android™ devices
• Built-in memory

Testing Applications

• Output voltage up to 60 kV DC
• Leakage current up to 6 mA
