Phase II+ PHT1800-125 G Impact Device

Name: Phase II+ PHT1800-125 G Impact Device
Brand: Phase II+
SKU: Phase IIPHT1800-125
Price: 1006.10 USD
Availability: InStock

0 reviews | Model: Phase II+ PHT1800-125

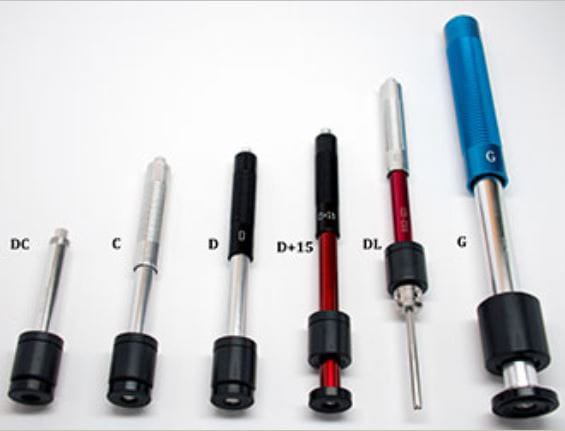

Phase II Plus PHT1800 Series Impact device

Compare

G Impact Device

Enlarged test tip
Increased impact energy range (Approx. 9 times the D, 72 ft-lb.)
Designed to be used with heavy components such as heavy castings and forgings
Can be used on lower quality finishes for measuring hardness in the Brinell range only (max. 650 HB)

View Product Details

List Price: $1,031.25

Your Price: $1,006.10

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series


Product	Phase II+ PHT1800-125 G Impact Device	Phase II+ PHT-1850 Portable Hardness Tester w/G impact Device	Phase II+ PHT-1840 Hardness Tester w/DL impact Device	Phase II+ PHT1800-115 DL Impact device	Phase II+ PHT1800-110 D+15 Impact device	Phase II+ PHT1800-100 Impact Device "D" (w/cable and impact body)	Phase II+ PHT1800-120 DC Impact device	Phase II+ PHT1800-130 C Impact device
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Phase II+ PHT1800-125 G Impact Device

Designed to be used with heavy components such as heavy castings and forgings
Increased impact energy range (Approx. 9 times the D, 72 ft-lb.)
Enlarged test tip
Can be used on lower quality finishes for measuring hardness in the Brinell range only (max. 650 HB)

This model features a needle front section with a diameter of 4mm and a length of 50mm. It is suitable for testing in extremely confined spaces, the base of grooves, and on special components such as gear wheels. For use on steel and cast steel only.

Phase II Plus PHT1800-125 G Specifications
Impact Devices	D/DC/DL	D+15	C	G
Impact energy	11Nmm	11Nmm	3Nmm	90Nmm
Mass of the impact body	5.5g	7.8g	3.0g	20g
Test tip
Hardness	1600HV	1600HV	1600HV	1600HV
Diameter	3mm	3mm	3mm	5mm
Material		Tungsten carbide	Tungsten carbide
Impact Device
Diameter	20mm	20mm	20mm	30mm
Length	147/86mm	162mm	141mm	254mm
Weight	75/50g	80g	75g	250g
Max. hardness of sample	940HV	940HV	1000HV	650HB
Preparation of surface
Roughness class ISO	N7	N7	N5	N9
Max. roughness depth Rt	10 µm	10 µm	2.5 µm	30 µm
Average roughness Ra	2 µm	2 µm	0.4 µm	7 µm
Min. Weight of Sample
Of compact shape	5kg	5kg	1.5kg	15kg
On solid support	2kg	2kg	0.5kg	5kg
Coupled on plate	0.1kg	0.1kg	0.02kg	0.5kg
Min. Thickness of Sample
Coupled	3mm	3mm	1mm	10mm
Min. thickness of layers	0.8mm	0.8mm	0.2mm	-
Indentation of test tip
With 300 HV
Diameter	0.54mm	0.54mm	0.38mm	1.03mm
Depth	24 µm	24 µm	12 µm	1 µm
With 600 HV
Diameter	0.45mm	0.45mm	0.32mm	0.90mm
Depth	17 µm	17 µm	8 µm	41 µm
With 800 HV
Diameter	0.35mm	0.35mm	0.30mm	-
Depth	10 µm	10 µm	7 µm	-

Test Equipment General Attributes
Product Height	2.00 IN
Product Length	10.00 IN
Product Width	3.00 IN
HTS/Schedule B Number	9024.10.0000
ECCN Number	EAR99
Country of Origin	China
Shipping Height	2.00 IN
Shipping Length	10.00 IN
Shipping Width	3.00 IN
