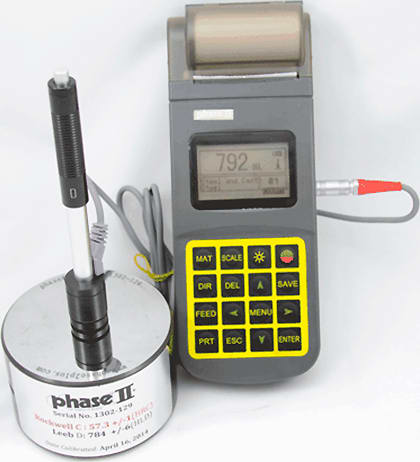

Phase II+ PHT-3500 - Multi-Fuction Hardness Tester with Printer

Name: Phase II+ PHT-3500 - Multi-Fuction Hardness Tester with Printer
Brand: Phase II+
SKU: Phase IIPHT-3500
Price: 1701.71 USD
Availability: InStock

0 reviews | UPC: 037103590435 | Model: Phase II+ PHT-3500

Compare

Multi-Fuction Hardness Tester w/printer

Easy to use keypad operation
Auto identification of Impact Device
Large LCD display with back light
USB Ouput
Automatic conversions to: Brinell, Rockwell B & C, Vicker and Shore
Automatic mean value as well as Min & Max values
Battery Indicator
Memory capacity (100 groups)

View Product Details

List Price: $1,895.00

Your Price: $1,701.71

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Phase II+ PHT-3500 Multi-Fuction Hardness Tester w/printer	Phase II+ PHT-1700 Hardness Tester w/D impact Device	Phase II+ PHT-1800 Portable Hardness Tester	Phase II+ PHT-1900 Hardness Tester w/Color Display-Multi-Function	Phase II+ PHT-1800C Portable Hardness Tester w/ NIST-Calibrated block	Phase II+ PHT-1750 Portable Hardness Tester w/G impact Device	Phase II+ PHT-1740 Hardness Tester w/DL impact Device	Phase II+ PHT-2100 Rugged Metal Body Portable Hardness Tester	Phase II+ PHT-3300 Integrated Hardness Tester	Phase II+ PHT2500-105 Impact Body "D"	Phase II+ PHT1300-02 Test Block for Leeb "D" (Mid Scale HRC)	Phase II+ PHT-1700C Hardness Tester w/D impact Device w/Certified Test Block	Phase II+ PHT-1740C Hardness Tester w/DL impact Device w/Certified Test Block	Phase II+ PHT-1840C Hardness Tester w/DL impact Device w/Certified Test Block	Phase II+ PHT-1900C NEW! Hardness Tester w/Color Display-Multi-Function w/Certified Test B ...	Phase II+ PHT-5050 NEW! Portable Brinell Hardness Tester
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Phase II+ PHT-3500 Accessories

Choose a Category

General Accessories

for the Phase II+ PHT-3500

Phase II+ PHT1100G-01 Leeb Test Block for "G" impact device

Catalog: PHT1100G-01

(0)

In Stock!

Add to Cart

Phase II+ PHT1300-01 Phase II PHT1300-01 Test Block for Leeb "D"

Catalog: PHT1300-01

(0)

In Stock!

Add to Cart

Phase II+ PHT130001-CERT Phase II PHT1300-01 Test Block for Leeb "D" - NIST-Calibrated

Catalog: PHT130001-CERT

(0)

In Stock!

Add to Cart

Phase II+ PHT1300-02 Test Block for Leeb "D" (Mid Scale HRC)

Catalog: PHT1300-02

(0)

In Stock!

Add to Cart

Phase II+ PHT130002-CERT NIST Certified Leeb "D" Block (Mid Scale HRC)

Catalog: PHT130002-CERT

(0)

In Stock!

Add to Cart

Phase II+ PHT1300-03 Test Block for Leeb "D" (low scale HRC)

Catalog: PHT1300-03

(0)

In Stock!

Add to Cart

Phase II+ PHT130003-CERT NIST certified Leeb "D" Block (Low scale HRC)

Catalog: PHT130003-CERT

(0)

In Stock!

Add to Cart

Phase II+ PHT1300-05 Phase II PHT1300-05 Double-sided Test Block for Leeb "D"

Catalog: PHT1300-05

(0)

In Stock!

Add to Cart

Phase II+ PHT1500-300 12pc Support Ring Set

Catalog: PHT1500-300

(0)

In Stock!

Add to Cart

Phase II+ PHT1800-100 Impact Device "D" (w/cable and impact body)

Catalog: PHT1800-100

(0)

In Stock!

Add to Cart

Phase II+ PHT1800-110 D+15 Impact device

Catalog: PHT1800-110

(0)

In Stock!

Add to Cart

Phase II+ PHT1800-115 DL Impact device

Catalog: PHT1800-115

(0)

In Stock!

Add to Cart

Phase II+ PHT1800-120 DC Impact device

Catalog: PHT1800-120

(0)

In Stock!

Add to Cart

Phase II+ PHT1800-125 G Impact Device

Catalog: PHT1800-125

(0)

In Stock!

Add to Cart

Phase II+ PHT1800-130 C Impact device

Catalog: PHT1800-130

(0)

In Stock!

Add to Cart

Phase II+ PHT-3500

Easy-to-use keypad operation
Auto identification of Impact Device
Large LCD display with backlight
USB Output
Automatic conversions to Brinell, Rockwell B & C, Vicker, and Shore

Multi-Function Hardness Tester with Printer

State-of-the-art, the digital tester is designed to test the hardness of large hard metal parts. Loaded with useful functions and a built-in mini-printer, the PHT-3500 is clearly the industry leader for fast, accurate hardness testing with advanced USB output and thermal printing capabilities.

The PHT-3500 can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc.

Operations:

Load the impact body
Place the impact body on your test piece
Push the button to begin testing and obtain a reading

General Specifications
Accuracy	+/- 0.5% (referred to L=800,
Repeatability accuracy	+/- 4L units) L=Leeb
Measuring range	200-960 HL
Materials	steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
Battery type	AA alkaline (4)
Operating temperature	5-104 degrees F
Dimensions	150 x 74 x 32mm
Weight	245 grams

Tech Specs

Test Equipment General Attributes
Interfaces I/O	USB
Product Weight	245 GRAMS (0.540 LBS)
Product Height	32 MM (1.26 IN)
Product Length	212 MM (8.35 IN)
Product Width	80 MM (3.15 IN)
Shipping Weight	12.00 LBS
HTS/Schedule B Number	9024.10.0000
ECCN Number	3B992
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	United States
Shipping Height	5.00 IN
Shipping Length	15.00 IN
Shipping Width	12.00 IN
