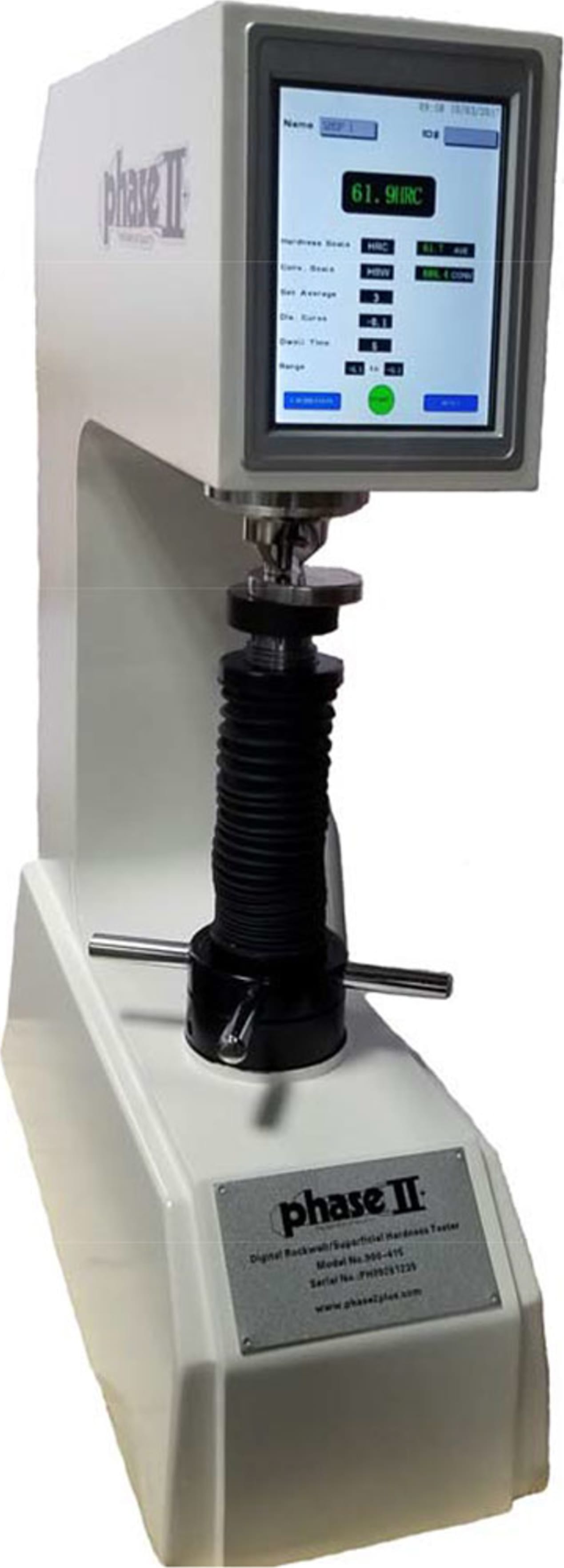

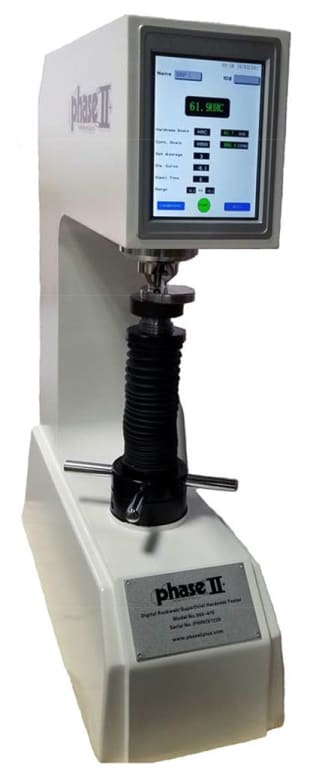

Phase II+ 900-440 - TWIN Rockwell Hardness Tester w/Load cell and Touch Screen

Name: Phase II+ 900-440 - TWIN Rockwell Hardness Tester w/Load cell and Touch Screen
Brand: Phase II+
SKU: Phase II900-440
Price: 10771.51 USD
Availability: InStock

0 reviews | Model: Phase II+ 900-440

Compare

NEW! TWIN Rockwell Hardness Tester w/Load cell and Touch Screen

Cannot Ship Air

Cast Iron Body
Touch Screen Functions
Automatic conversions to HB, HV, Popular Rockwell Scales
Upper / Lower Limit Settings
Does everything that 900-387 does plus sturdier construction: Cast Iron Body vs 900-387 which is Cast Iron Base and sheet metal upper body

View Product Details

List Price: $11,995.00

Your Price: $10,771.51

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Phase II+ 900-440 NEW! TWIN Rockwell Hardness Tester w/Load cell and Touch Screen	Phase II+ 900-355 Brinell Hardness Tester w/ Load Cell Technology	Phase II+ 900-331 Analog Rockwell Hardness Tester-Premium	Phase II+ 900-331D Hardness Tester w/Digital Indicator Upgrade	Phase II+ 900-349 Tall Frame Digital Sup. Rockwell Hardness Tester	Phase II+ 900-356 Tall Frame Digital Brinell Hardness Tester	Phase II+ 900-375 Twin Rockwell/Superficial Hardness Tester Analog	Phase II+ 900-386 Tall FrameDigital TWIN Rockwell/Superficial Hardness Tester	Phase II+ 900-387 Motorized TWIN Rockwell Hardness Tester	Phase II+ 900-388 Fully Automated Z -AXIS TWIN Rockwell Hardness Tester	Phase II+ 900-346 Superficial Digital Rockwell Hardness Tester	Phase II+ 900-357 Brinell Hardness Tester w/Built-in Monitor	Phase II+ 900-367 Load Cell Rockwell Hardness Tester	Phase II+ 900-410 Digital Rockwell Hardness Tester	Phase II+ 900-415 Rockwell Hardness Tester w/Load cell and Touch Screen	Phase II+ 900-332D Tall Frame Analog Rockwell Hardness Tester	Phase II+ 900-345 Superficial Rockwell Analog Hardness Tester	Phase II+ PHT-5000 Brinell Optical Scan System	Phase II+ 900-366 Tall Frame Digital Rockwell Hardness Tester	Phase II+ 900-332 Tall Frame Analog Rockwell Hardness Tester	Phase II+ 900-359 NEW! Brinell Hardness Tester w/Auto Z-Axis/CCD Video	Phase II+ 900-358 NEW! Brinell Hardness Tester w/Auto Z-Axis	Phase II+ 900-384 Motorized TWIN Rockwell Hardness Tester	Phase II+ 900-420 NEW! Superficial Digital Rockwell Hardness Tester	Phase II+ 900-389 Fully Automated Rockwell/Superficial Rockwell Hardness Tester, micro com ...	Lascar DPM 950 DPM 950 is3½ Digit LCD Voltmeter	Lascar DPM 950S DPM 950S200mVdc full scale, LED backlit, Bezel mounted	Lascar DPM 950S-FPSI DPM 950S-FPSI is3.5 Digit LCD Voltmeter	Lascar DPM 959B DPM 959B is200mVdc full scale, LED meter	Lascar DPM 970 DPM 970 is 3½ digit LCD Voltmeter with 19mm (0.75") Digit Height and ...	Lascar DTM 995B LCD Thermocouple Indicator	Phase II+ 900-450 NEW! Universal Hardness Tester	Phase II+ 900-475 Fully-Automated Z-Axis Twin Hardness Tester
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Phase II+ 900-440 Accessories

Choose a Category

General Accessories

for the Phase II+ 900-440

Phase II+ 900330-12 1/2 Carbide Ball

Catalog: 900330-12

(0)

In Stock!

Add to Cart

Phase II+ 900330-12C 1/2 Carbide Ball Indentor - Certified

Catalog: 900330-12C

(0)

In Stock!

Add to Cart

Phase II+ 900330-14 1/4 Carbide Ball

Catalog: 900330-14

(0)

In Stock!

Add to Cart

Phase II+ 900330-14C 1/4 Carbide Ball Indentor - Certified

Catalog: 900330-14C

(0)

In Stock!

Add to Cart

Phase II+ 900330-18 1/8 Carbide Ball

Catalog: 900330-18

(0)

In Stock!

Add to Cart

Phase II+ 900330-18C 1/8 Carbide Ball Indentor - Certified

Catalog: 900330-18C

(0)

In Stock!

Add to Cart

Phase II+ 900330-9413 Rockwell A, Shape: Round, Range: 80-88.

Catalog: 900330-9413C

(0)

In Stock!

Add to Cart

Phase II+ 900330-9414AH Rockwell B, Shape: Square, Range: 80 s.

Catalog: 900330-9414AH

(0)

In Stock!

Add to Cart

Phase II+ 900330-9414AL Rockwell B, Shape: Square, Range: 50 s.

Catalog: 900330-9414AL

(0)

In Stock!

Add to Cart

Phase II+ 900330-9414BH Rockwell B, Shape: Square, Range: 80 s.

Catalog: 900330-9414BH

(0)

In Stock!

Add to Cart

Phase II+ 900330-9414BL Rockwell B, Shape: Square, Range: 50 s.

Catalog: 900330-9414BL

(0)

In Stock!

Add to Cart

Phase II+ 900330-9414C Rockwell B, Shape: Round, Range: 85-100.

Catalog: 900330-9414C

(0)

In Stock!

Add to Cart

Phase II+ 900330-9414H Rockwell B, Shape: Square, Range: 85-100.

Catalog: 900330-9414H

(0)

In Stock!

Add to Cart

Phase II+ 900330-9415C Rockwell C , Shape: Round, Range: 20-30 s.

Catalog: 900330-9415C

(0)

In Stock!

Add to Cart

Phase II+ 900330-9415D Rockwell C -Import NIST Certified

Catalog: 900330-9415D

(0)

In Stock!

Add to Cart

Phase II+ 900330-9415E Rockwell C - USA/NIST Certified

Catalog: 900330-9415E

(0)

In Stock!

Add to Cart

Phase II+ 900330-9416C Rockwell C , Shape: Round, Range: 40

Catalog: 900330-9416C

(0)

In Stock!

Add to Cart

Phase II+ 900330-9416D Rockwell C -Import NIST Certified

Catalog: 900330-9416D

(0)

In Stock!

Add to Cart

Phase II+ 900330-9416E Rockwell C - USA/NIST Certified

Catalog: 900330-9416E

(0)

In Stock!

Add to Cart

Phase II+ 900330-9417C Rockwell C , Shape: Round, Range: 60's.

Catalog: 900330-9417C

(0)

In Stock!

Add to Cart

Phase II+ 900330-9417D Rockwell C -Import NIST Certified

Catalog: 900330-9417D

(0)

In Stock!

Add to Cart

Phase II+ 900330-9417E Rockwell C - USA/NIST Certified

Catalog: 900330-9417E

(0)

In Stock!

Add to Cart

Phase II+ 900330-9418H Rockwell E, Shape: Square, Range: 90 s.

Catalog: 900330-9418H

(0)

In Stock!

Add to Cart

Phase II+ 900330-9418L Rockwell E, Shape: Square, Range: 60 s.

Catalog: 900330-9418L

(0)

In Stock!

Add to Cart

Phase II+ 900330-9440 Diamond Indenter (import)

Catalog: 900330-9440

(0)

In Stock!

Add to Cart

Phase II+ 900330-9440B Diamond Indenter (USA Certified)

Catalog: 900330-9440B

(0)

In Stock!

Add to Cart

Phase II+ 900330-9440C Combo C And N Diamond Penetrator(USA Certified)

Catalog: 900330-9440C

(0)

In Stock!

Add to Cart

Phase II+ 900330-9441 1/16 Carbide Ball

Catalog: 900330-9441

(0)

In Stock!

Add to Cart

Phase II+ 900330-9441C 1/16 Carbide Ball

Catalog: 900330-9441C

(0)

In Stock!

Add to Cart

Phase II+ 900330-9441D 1/16 inch Carbide Ball

Catalog: 900330-9441D

(0)

In Stock!

Add to Cart

Phase II+ 900340-9001 Superficial HR15N, Shape: Round, Range: 70-91.

Catalog: 900340-9001

(0)

In Stock!

Add to Cart

Phase II+ 900340-9002 Superficial HR30N, Shape: Round, Range: 42-80.

Catalog: 900340-9002

(0)

In Stock!

Add to Cart

Phase II+ 900340-9003 Superficial HR45N, Shape: Round, Range: 20-70.

Catalog: 900340-9003

(0)

In Stock!

Add to Cart

Phase II+ 900340-9004 Superficial HR45T, Shape: Round, Range: 55-72.

Catalog: 900340-9004

(0)

In Stock!

Add to Cart

Phase II+ 900355-010 Brinell 10mm Carbide Ball

Catalog: 900355-010

(0)

In Stock!

Add to Cart

Phase II+ 900355-025 Brinell 2.5mm Carbide Ball

Catalog: 900355-025

(0)

In Stock!

Add to Cart

Phase II+ 900355-050 Brinell 5mm Carbide Ball

Catalog: 900355-050

(0)

In Stock!

Add to Cart

Phase II+ 900365-9405 2 Dia. Anvil (flat)

Catalog: 900365-9405

(0)

In Stock!

Add to Cart

Phase II+ 900365-9411 Large Dia. Anvil (Flat)

Catalog: 900365-9411

(0)

In Stock!

Add to Cart

Phase II+ 900365-9412 V-Anvil

Catalog: 900365-9412

(0)

In Stock!

Add to Cart

Phase II+ 900365-9413 X-Large Dia. Anvil (Flat) (230mm)

Catalog: 900365-9413

(0)

In Stock!

Add to Cart

Phase II+ 900415-9440B Diamond Indenter (USA Certified)

Catalog: 900415-9440B

(0)

In Stock!

Add to Cart

Phase II+ 900-440

Cast Iron Body
Touch Screen Functions
Automatic conversions to HB, HV, Popular Rockwell Scales
Upper / Lower Limit Settings
Does everything that 900-387 does plus sturdier construction: Cast Iron Body vs. 900-387, which is Cast Iron Base and sheet metal upper body

TWIN Rockwell Hardness Tester w/Load cell and Touch Screen

Cast Iron Body
Touch Screen Functions
Automatic conversions to HB, HV, Popular Rockwell Scales
Upper / Lower Limit Settings

This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Microcomputer-controlled Touch Screen with USB output to flash drive. The 900-440 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities, and a test counter.

Capable of testing in all of the regular Rockwell and Superficial Rockwell hardness scales.

Direct Loading Method With Load-Cell Instead Of Dead Weight System. High-Speed Test Cycle and Extremely Accurate Loading Control

Automatic conversions to HB, HV, Popular Rockwell Scales
Touch Screen selectable system
Upper/Lower Limit Settings

General Specifications
Test resolution	0.01HR Rockwell unit;
Operation temperature	50° - 95°F (10ᵒC～35ᵒC)
Ambient environment	clean, no vibration, no strong magnetic field, and no corrosive medium;
Power supply	single phase, AC, 110-220 with manual change, 50～60Hz, 4A;
Minor Load	3kgf / 10 Kgf
Major Load	60 Kgf, 100 Kgf, 150 KGF, 15KGF, 30KGF, 45KGF
Test Force Application	Load Cell Closed Loop
Test Force Control	Motorized
Results Display	Hi Def LCD Digital Readout
Resolution	0.01HR
Vertical Capacity	8.0"
Throat Depth	7.8"
Height	22"
Width	8"
Depth	31"
Weight	175 lbs

Scale Symbol	Indentor Type	Preliminary Force N (kgf)	Total Force N(kgf)	Typical Applications
A	Spheroconical Diamond	98.07 (10)	588.4 (60)	Cemented carbides, thin steel, and shallow case hardened steel
B	1/16” Carbide Ball	98.07 (10)	980.7 (100)	Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
C	Spheroconical Diamond	98.07 (10)	1471 (150)	Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, other harder than HRB 100
D	Spheroconical Diamond	98.07 (10)	980.7 (100)	Thin steel and medium case hardened steel, and pearlitic malleable iron
E	1/8” Carbide Ball	98.07 (10)	980.7 (100)	Cast Iron, Aluminum and magnesium alloys, and bearing metals
F	1/16” Carbide Ball	98.07 (10)	588.4 (60)	Annealed copper alloys and thin soft sheet metals
G	1/16” Carbide Ball	98.07 (10)	1471 (150)	Malleable irons, copper-nickel-zinc and cupro-nickel alloys
H	1/8” Carbide Ball	98.07 (10)	588.4 (60)	Aluminum, zinc and lead
K	1/8” Carbide Ball	98.07 (10)	1471 (150)

Tech Specs

Test Equipment General Attributes
Interfaces I/O	USB
Product Weight	175 LBS
Product Height	22 IN
Product Length	31 IN
Product Width	8 IN
Shipping Weight	320 LBS
Power Supply Voltage	120V/220V Universal
Country of Origin	United States
Shipping Height	40.00 IN
Shipping Length	48.00 IN
Shipping Width	40.00 IN
