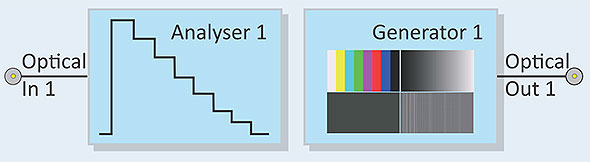

This optical transceiver Non-MSA SFP module is an option for the Rx AG or AGE modules and allows a single optical video signal to be analyzed and the generation of a single optical video test signal (requires Generator option). This is ideal for closed loop testing of fibre installations.

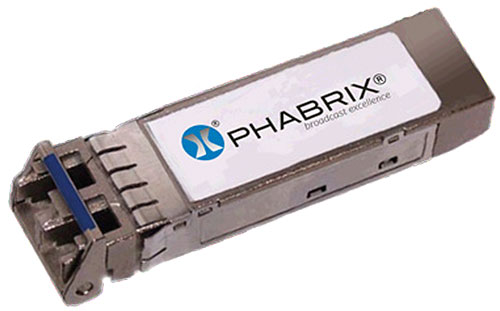

The PHSFP-RT30-1550 is a single mode optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006. It has been specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates.

It contains a single 1550nm transmitter and a single receiver designed to provide error-free transmission of signals from 50Mb/s to 3Gb/s over single mode fibre (9/125).

Note that Non-MSA SFP modules were developed for video broadcast and their pin-outs and signal levels are not compatible with MSA SFP modules. The actual data transmitted via the optical fibre, however, is identical.


Optical Connector Requirements

An LC connector with PC/UPC polish is required for each port.
