The SDI analysis option provides the engineer with a detailed view of the data words contained within the SDI stream. This allows the analysis of complex faults and is particularly useful when determining compatibility issues between equipment and when debugging new product developments within an R&D environment. Detail within the active SDI stream can be viewed with continuous update. Analysis can be obtained from the generated or received SDI stream allowing quick comparison checks.

The HD/SD-SDI Data analyzer and Ancillary packet analyzer option (PHRXO-SD) provides the engineer with a detailed view of the data words contained within the SDI stream.

This allows the analysis of complex faults and is particularly useful when determining compatibility issues between equipment and when debugging new product developments particularly in a R&D environment. Detail within the active SDI stream can be viewed with continuous update.

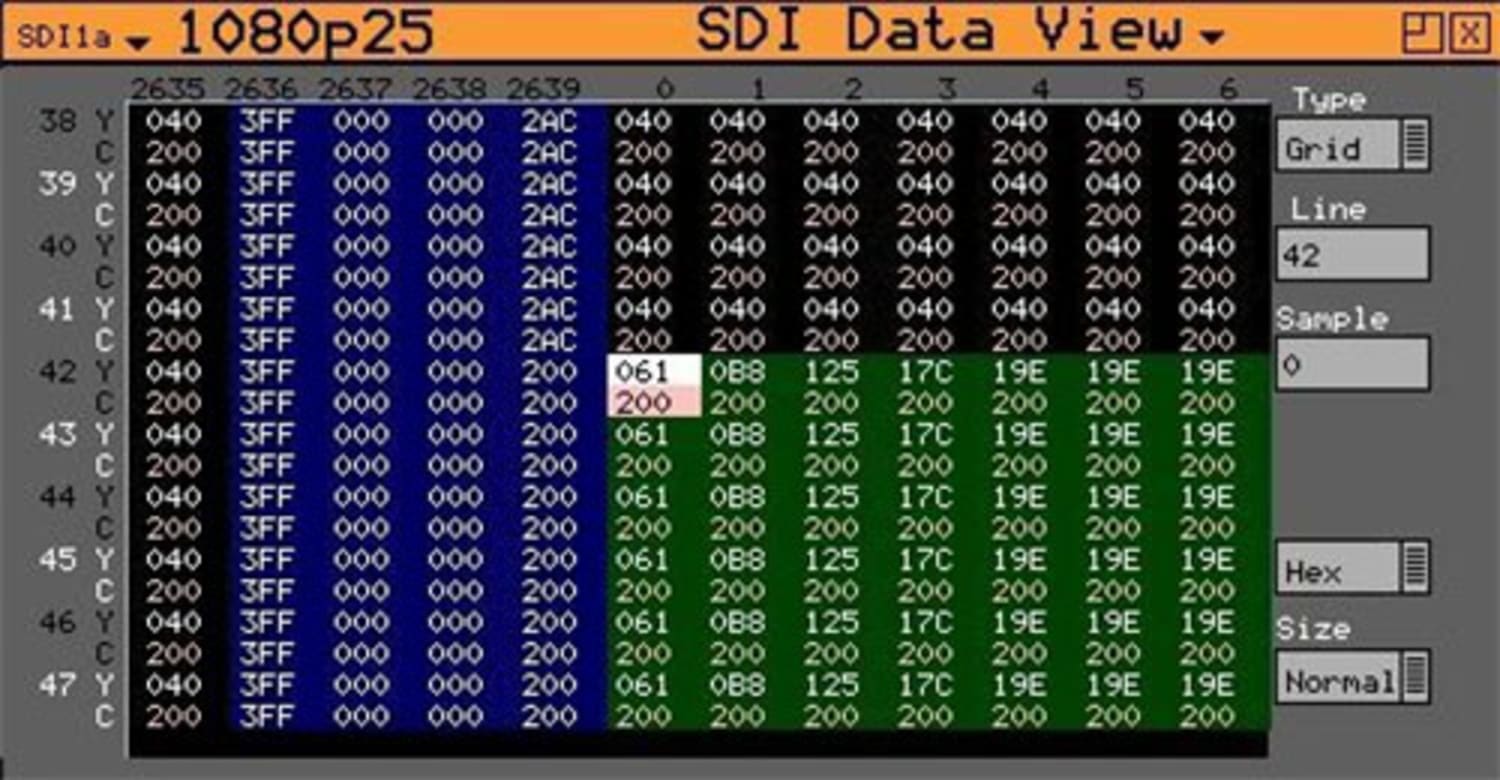

With reference to pixels at the top of the screen and lines along the left side of the screen, users can look within an x, y grid of pixel and ancillary data. Samples can be viewed as 8 or 10 bit, hex or decimal. Navigation is simple and fast using the thumb pad with the selected value highlighted in white. A separate entry box allows a specific line and sample to be selected. Both the background and foreground text colours are coded for ease of identification. The background colour at any time represents the FVH bits within the TRS words. In this way the operator can determine if a data element is active picture, vertical blanking, horizontal blanking, field 1, field 2 or TRS. The foreground colour gives an indication of the type of pixel data being viewed – Y, Cb, Cr, R, G or B.

A number of screen displays are provided for analysis.
