Although SDI feeds hold both video and audio data, it does not mean that the video and audio are correctly in-sync. Referred to as a Lip Sync Error, or AV Delay, the results can sometimes create a noticeable issue for the viewer, especially in broadcast workflows where feeds are encoded.

There is a potential that any active processing equipment can introduce AV Delay, but compensation for this may only be possible as a system solution not on a unit by unit basis. Therefore, understanding the likely accumulated AV Delay is a priority.

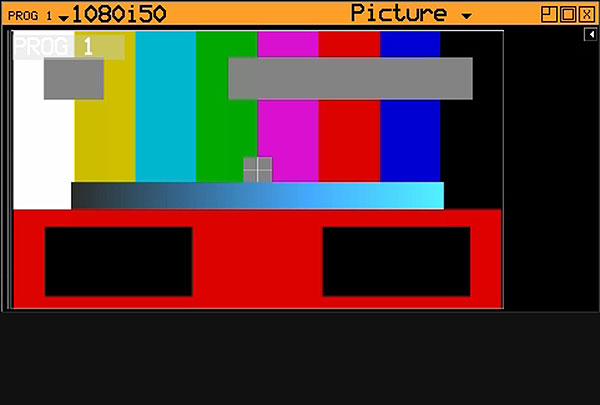

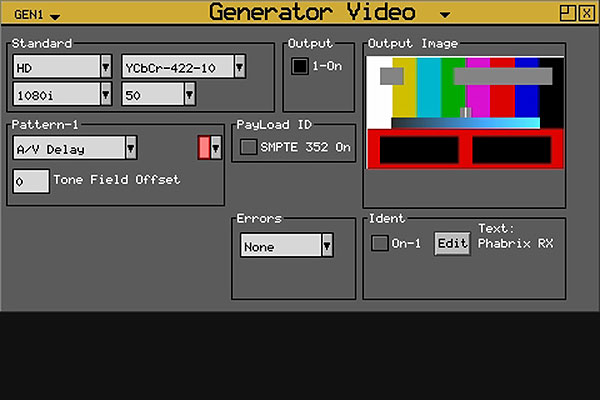

PHABRIX's AV Delay Generation and Analysis option offers an end-to-end solution for the measurement of Audio to Video differential delay through a broadcast system.

• The tool provides a real-time update of the differential delay between the video and the selected audio channel pair
• Measure the propagation or pipeline delay of either video or audio
• Can be used with all Rx supported video formats and frame rates on SDI and AES interfaces
