Phabrix PHRXO-3G 3G-SDI and Advanced Formats Upgrade for Rx Chassis

Name: Phabrix PHRXO-3G 3G-SDI and Advanced Formats Upgrade for Rx Chassis
Brand: Phabrix
SKU: PhabrixPHRXO-3G
Price: 678.00 USD
Availability: InStock

0 reviews | Model: Phabrix PHRXO-3G

Compare

3G chassis + Advanced video formats (422/444, YUV/RGB, 10/12 bit) + 2K, Chassis license, applies to PHRX2000, PHRX1000 and PHRX500

Chassis option providing 3G-SDI and advanced formats for all modules inserted
3G level A and B
Advanced formats 4:2:2 YUV and 4:4:4 YUV at 10/12 bit

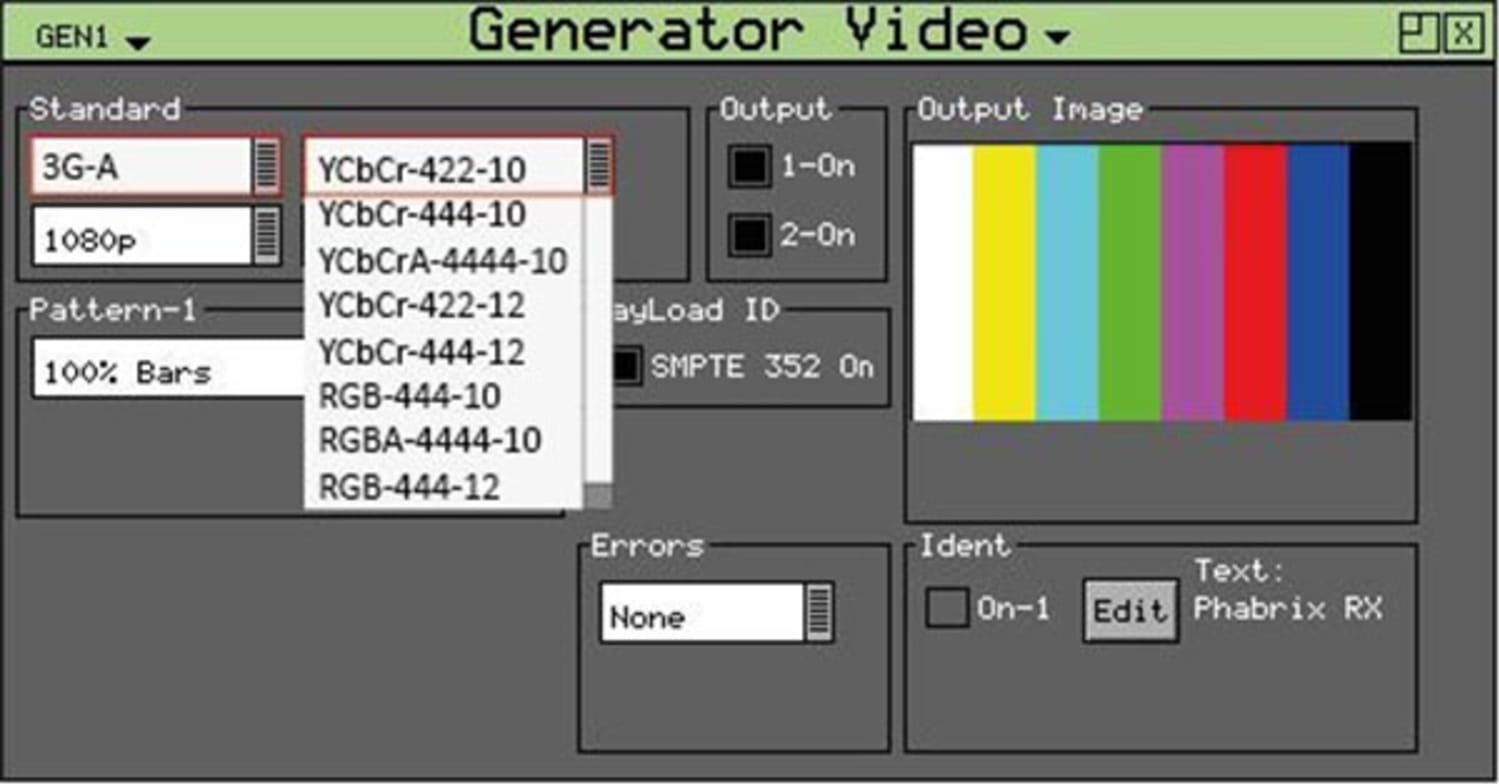

Adds generator formats if generator module inserted
Exceptional value - pay once for total module support

View Product Details

Your Price: $678.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Phabrix PHRXO-3G 3G-SDI and Advanced Formats Upgrade for Rx Chassis

Adds 3G-SDI and advanced formats across all module slots. This option introduces a variety of new formats to the SD and HD standards available on the Rx platform.

For broadcast manufacturers the new option allows rigorous testing of many more formats, beyond the standard signals used in traditional broadcasting.

This option also supports the new SDI practice for HD and 3G Level A and Level B signal transfer of 2K advanced formats including 4:2:2 YCbCr, 4:4:4 RGB and 4:4:4 YCbCr at 10/12 bit as well as 4:4:4 XYZ at 12-bit.

This allows analysis of, and test pattern generation for, 2K digital cinema as defined in the SMPTE ST 2048-2:2011 standard ("2048 x 1080 Digital Cinematography Production Image FS/709 Formatting for Serial Digital Interface) and SMPTE 428-9 (D-Cinema Distribution Master - Image Pixel Structure Level 3 - Serial Digital Interface Signal Formatting).

The option is available immediately as a software code which is provided once purchased from an authorised PHABRIX dealer.

Specifications
3G Level-A 2.97 Gb/s SMPTE 425M-A
	Resolution	Colour Space	Rate
SMPTE 296M	1280 x 720	4:4:4 (Y’C’BC’R’), 4:4:4:4 (Y’C’BC’R’+A)/10-bit	23.98, 24, 25, 29.97, 30, 50, 59.94 60 Progressive
SMPTE 274M	1920 x 1080	4:4:4 (R’G’B’), 4:4:4:4 (R’G’B’+A)/10-bit	23.98, 24, 25, 29.97, 30 Progressive or Segmented Frame 50, 59.94, 60 Interlaced
SMPTE 274M	1920 x 1080	4:4:4 (Y’C’BC’R’), 4:4:4:4 (Y’C’BC’R’+A)/10-bit	23.98, 24, 25, 29.97, 30 Progressive or Segmented Frame 50, 59.94, 60 Interlaced
SMPTE 274M	1920 x 1080	4:4:4 (R’G’B’)/12-bit	23.98, 24, 25, 29.97, 30 Progressive 50, 59.94, 60 Interlaced *
SMPTE 274M	1920 x 1080	4:4:4 (Y’C’BC’R’)/12 bit	23.98, 24, 25, 29.97, 30 Progressive 50, 59.94, 60 Interlaced
SMPTE 428-9	2048 x 1080	4:4:4 (X’Y’Z’)/12 bit	23.98, 24.00 Progressive or Segmented Frame
SMPTE 274M	1920 x 1080	4:2:2 (Y’C’BC’R’)/12 bit	23.98, 24, 25, 29.97, 30 Progressive or Segmented Frame 50, 59.94, 60 Interlaced
3G Level-B 2.97 Gb/s SMPTE 425-B Single Stream
	Resolution	Colour Space	Rate
SMPTE 274M	1920 x 1080	4:2:2 (Y’C’BC’R’)/10 bit	23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 Progressive 23.98, 24.00, 25.00, 29.97, 30.00 Segmented Frame 50.00, 59.94, 60.00 Interlaced
SMPTE 274M	1920 x 1080	4:4:4 (Y’C’BC’R’), 4:4:4:4 (Y’C’BC’R’+A)/10-bit	23.98, 24.00, 25.00, 29.97, 30.00 Progressive or Segmented Frame 50.00, 59.94, 60.00 Interlaced
SMPTE 274M	1920 x 1080	4:2:2 (Y’C’BC’R’)/12 bit, 4:4:4 (Y’C’BC’R’)/12 bit	23.98, 24.00, 25.00, 29.97, 30.00 Progressive or Segmented Frame 50.00, 59.94, 60.00 Interlaced
SMPTE 274M	1920 x 1080	4:4:4 (R’G’B’), 4:4:4:4 (R’G’B’+A)/10-bit	23.98, 24.00, 25.00, 29.97, 30.00 Progressive or Segmented Frame 50.00, 59.94, 60.00 Interlaced
SMPTE 274M	1920 x 1080	4:4:4 (R’G’B’)/12-bit	23.98, 24, 25, 29.97, 30 Progressive 50, 59.94, 60 Interlaced
3G Level-B 2.97 Gb/s SMPTE 425-B Dual Stream
	Payload type
	1 x SMPTE 372M dual-link payload
	2 x SMPTE 292M HD 720 payloads
	2 x SMPTE 292M HD 1080 payloads
	1920 x 1080
2K 3G Level-A and Level-B 2.97 Gb/s
	Resolution	Colour Space	Rate
SMPTE ST 2048-2	2048 x 1080	4:2:2 (Y’C’bC’r) 10 bit	47.95, 48, 50, 59.94, 60 Progressive
SMPTE ST 2048-2	2048 x 1080	4:4:4 (Y’C’bC’r) 10 bit	23.98, 24, 25, 29.97, 30 Progressive or Segmented Frame
SMPTE ST 2048-2	2048 x 1080	4:4:4 (Y’C’bC’r+A) 10 bit	23.98, 24, 25, 29.97, 30 Progressive or Segmented Frame
SMPTE ST 2048-2	2048 x 1080	4:4:4 (R’G’B’) 12-bit	23.98, 24, 25, 29.97, 30 Progressive
SMPTE ST 2048-2	2048 x 1080	4:2:2 (Y’C’bC’r+A) 12 bit	23.98, 24, 25, 29.97, 30 Progressive
SMPTE ST 2048-2	2048 x 1080	4:4:4 (R’G’B’) 12-bit	23.98, 24, 25, 29.97, 30 Progressive or Segmented Frame
SMPTE ST 2048-2	2048 x 1080	4:2:2 (Y’C’bC’r+A) 12 bit	23.98, 24, 25, 29.97, 30 Progressive or Segmented Frame
SMPTE ST 2048-2	2048 x 1080	4:2:2 (Y’C’bC’r) 12 bit	23.98, 24, 25, 29.97, 30 Progressive
SMPTE ST 2048-2	2048 x 1080	4:2:2 (Y’C’bC’r+A) 12 bit	23.98, 24, 25, 29.97, 30 Progressive
SMPTE ST 2048-2	2048 x 1080	4:2:2 (Y’C’bC’r) 12 bit	23.98, 24, 25, 29.97, 30 Progressive or Segmented Frame
SMPTE ST 2048-2	2048 x 1080	4:2:2 (Y’C’bC’r+A) 12 bit	23.98, 24, 25, 29.97, 30 Progressive or Segmented Frame
SMPTE ST 428-9	2048 x 1080	4:4:4 (X’Y’Z’) 12-bit	23.98, 24 Progressive
SMPTE ST 428-9	2048 x 1080	4:4:4 (X’Y’Z’) 12-bit	23.98, 24 Progressive or Segmented Frame
SMPTE ST 428-19	2048 x 1080	4:4:4 (X’Y’Z’) 12-bitt	25, 29.97, 30 Progressive
SMPTE ST 428-19	2048 x 1080	4:4:4 (X’Y’Z’) 12-bit	23.98, 24 Progressive or Segmented Frame
