• HDR/WCG, CIE1931, HDR Heat map (PQ, HLG, S-Log3, SR Live) option
• For Phabrix QxL series
• Flexible user controlled HDR heat map
• Offers 7 simultaneous programmable color overlay bands with presets for HDR/SDR ranges and a user custom preset
• Extensive set of test patterns

The Phabrix PHQXLO-HDR is a High Dynamic Range visualization and analysis toolset option for the Phabrix QxL series. The Qx Series’ comprehensive HDR toolset includes a signal generator, CIE chart, Luma false color highlighting or heat map, waveform monitor and vector scope. All the main live production SDR and HDR formats are supported: Standard Dynamic Range (SDR) BT.709, BT.2020 as well as HDR BT.2100 HLG, PQ and Sony S-Log3 and SR Live. The Waveform provides a Cd/m2 (nits) graticule along with BT.2048 diffuse white markers. The flexible user controlled HDR heatmap offers 7 simultaneous programmable color overlay bands with presets for HDR and SDR ranges, plus a user custom preset. The CIE 1931 xy display provides overlays for BT.709, BT.2020 and ST.2086 gamut (P3) to enhance the visualization and analysis of your HDR / WCG content.

An extensive set of test patterns include BT.2111 HDR color bars for HLG, PQ and SR Live as well as a full set of SDR 709 patterns mapped via display light to each of the four HDR formats for line checks, comparative monitor set-up and the evaluation of HDR to SDR converters.

• Programmable Heat Map to highlight luminance zones providing quick identification of shadows, skin or mid-tones or specular highlights
• Seven simultaneous programmable color overlay bands
• Presets for HDR and SDR ranges plus user custom

• CIE 1931 xy display
• Single line mode linked to picture cursor
• Pan and zoom
• ITU-R BT.709, BT. 2020 and ST 2086 gamut overlays
• Tooltip co-ordinate display
• Support for BT. 1886, BT. 2100 HLG and PG, Sony S-Log3, SR Live

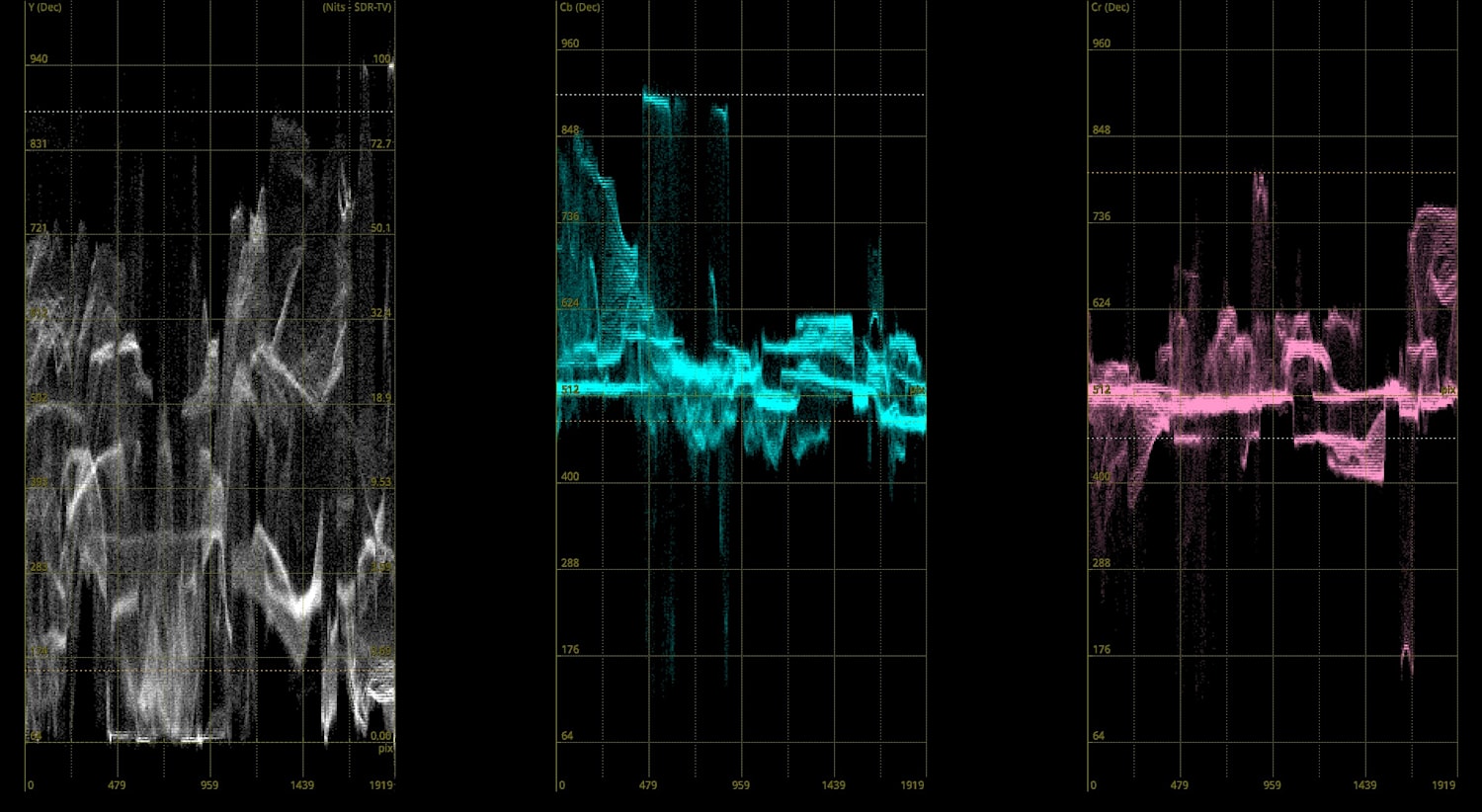

HDR Waveform

• Waveform HDR graticules with Nits
• BT. 2408 diffuse white markers
• Support for BT. 1886, BT. 2100 HLG and PQ, Sony S-Log3, SR Live
