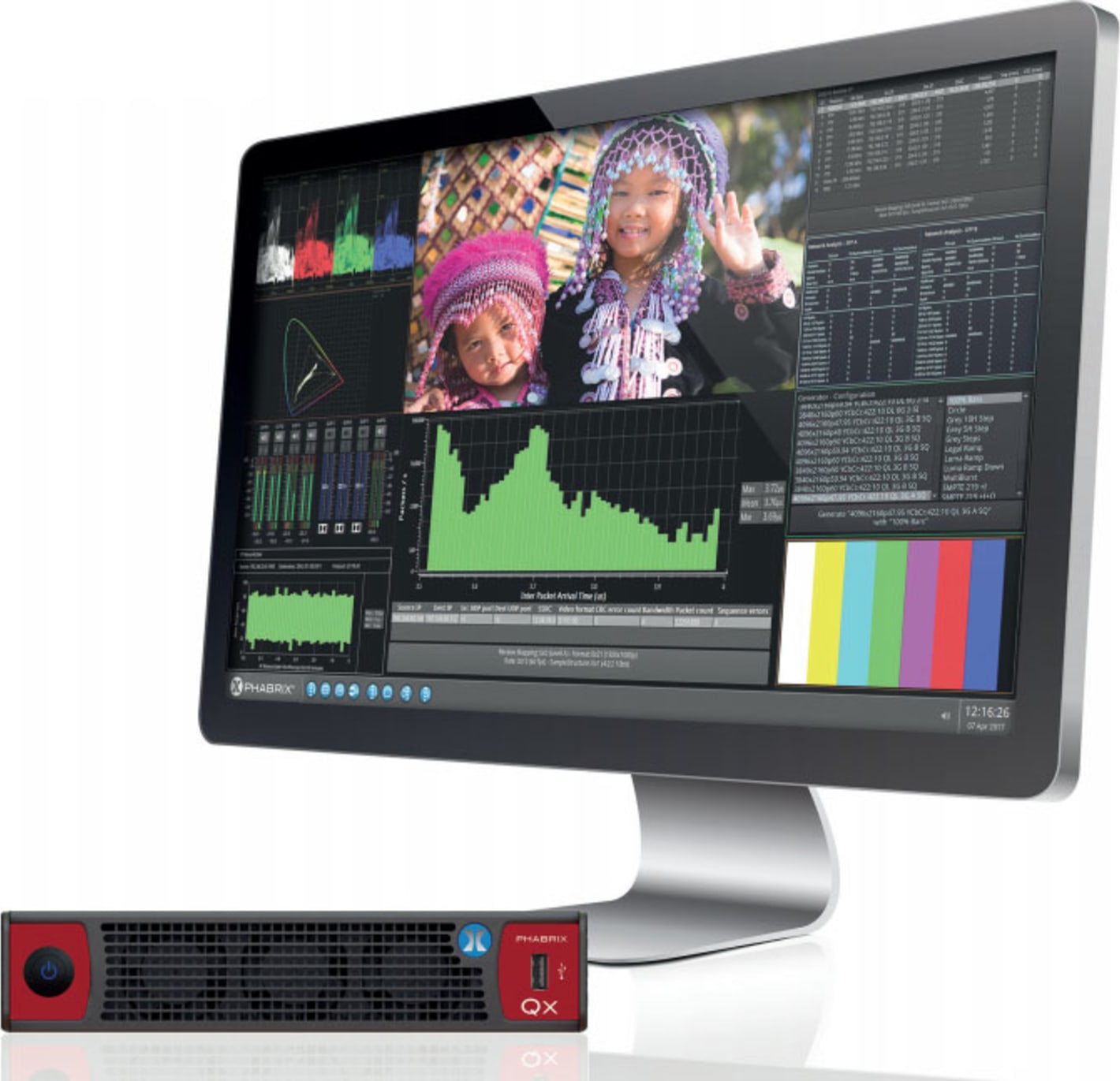

Phabrix PHQX01E-IP - IP, 4K/UHD plus HDR Generation, Analysis and Monitoring

0 reviews | Model: Phabrix PHQX01E-IP


PHABRIX Qx 1U 1/2 rack UHDTV Rasterizer with 3G IP/SDI Analyzer with Eye and Jitter SMPTE 2022-6 Encap + Decap, HD/3G-SDI Analyzer ONLY.

  • IP generation and analysis
    • SMPTE ST 2110* and ST 2022-6 decapsulation / encapsulation
    • Packet Interval Timing (PIT) analysis histogram for monitoring network traffic
    • PIT Logging off ers eff ective longer-term network monitoring
    • Packet Profile Generator for stress testing video networks
    • Stream and network analysis tools
    • Network management multicast support (IGMP2,3)
  • 3G-SDI generation and analysis
    • Simultaneous 3G/HD-SDI generation and analysis
    • Waveform monitor for YRGB/YUV monitoring
    • Vectorscope for checking colour bias / conformity
    • Test pattern generation, including Pathological and moving patterns*
    • 32 channel audio signal generation and embedding*
    • Video and audio monitoring
    • REF locking and timing analysis
  • HDR / WCG generation and analysis (option)
    • Dolby PQ HDR supported (HLG and SLOG3 standards included with future upgrade) CIE chart (Rec.709, Rec.2020, P3)
    • HDR Heat-map highlights signals beyond SDR
    • HDR test pattern generator
    • Waveform (log scale to 10,000 NIT) with Wide Colour Gamut support
    • Vectorscope with Graticules / Targets for HDR and SDR
  • Physical layer testing (option)
    • HD/3G/6G/12G-SDI RTETM (Real-time Eye) options for testing SMPTE compliance issues, including under/overshoot
    • Jitter analysis in fi ve specifi ed frequency bands
  • System features
    • Logging
    • Configuration presets
  • Control
    • TCP/IP interface for remote control and automated testing
  • Form factor
    • Compact ½ RU
    • Air filter option for live production
*Upcoming software release
View Product Details

List Price: $19,798.20
