Phabrix PHQX01-IP - Qx IP Hybrid IP/SDI Analyzer for ST 2110, ST 2022-6 and 3G/HD-SDI

Name: Phabrix PHQX01-IP - Qx IP Hybrid IP/SDI Analyzer for ST 2110, ST 2022-6 and 3G/HD-SDI
Brand: Phabrix
SKU: PhabrixPHQX01-IP
Price: 12943.80 USD
Availability: InStock

0 reviews | Model: Phabrix PHQX01-IP

Compare

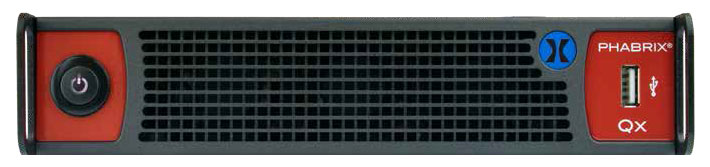

PHABRIX Qx 1U 1/2 rack UHDTV Rasterizer with 3G IP/SDI Analyzer SMPTE 2022-6 Encap + Decap, HD/3G-SDI Analyzer ONLY.

Qx IP hybrid IP/SDI analyzer for ST 2110, ST 2022-6 and 3G/HD-SDI (1RU, 1/2 rack)
IP generation and analysis
- SMPTE ST 2110* and ST 2022-6 decapsulation / encapsulation
- Packet Interval Timing (PIT) analysis histogram for monitoring network traffic
- PIT Logging off ers eff ective longer-term network monitoring
- Packet Profile Generator for stress testing video networks
- Stream and network analysis tools
- Network management multicast support (IGMP2,3)
3G-SDI generation and analysis
- Simultaneous 3G/HD-SDI generation and analysis
- Waveform monitor for YRGB/YUV monitoring
- Vectorscope for checking colour bias / conformity
- Test pattern generation, including Pathological and moving patterns*
- 32 channel audio signal generation and embedding*
- Video and audio monitoring
- REF locking and timing analysis
HDR / WCG generation and analysis (option)
- Dolby PQ HDR supported (HLG and SLOG3 standards included with future upgrade) CIE chart (Rec.709, Rec.2020, P3)
- HDR Heat-map highlights signals beyond SDR
- HDR test pattern generator
- Waveform (log scale to 10,000 NIT) with Wide Colour Gamut support
- Vectorscope with Graticules / Targets for HDR and SDR
Physical layer testing (option)
- HD/3G/6G/12G-SDI RTETM (Real-time Eye) options for testing SMPTE compliance issues, including under/overshoot
- Jitter analysis in fi ve specifi ed frequency bands
System features
- Logging
- Configuration presets
Control
- TCP/IP interface for remote control and automated testing
Form factor
- Compact ½ RU
- Air filter option for live production

*Upcoming software release

View Product Details

List Price: $12,943.80

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Phabrix PHQX01-IP

Phabrix PHQXO-GEN Audio/Video Test Signal Generator - PHQXO-IP-STND is required for...

Catalog: PHQXO-GEN

(0)

In Stock!

Add to Cart

Phabrix PHQXO-HDR HDR/WCG support, CIE 1931 chart, HDR Heat map. Standards supported:...

Catalog: PHQXO-HDR

(0)

In Stock!

Add to Cart

Phabrix PHQXO-IP-NGT IP Network Traffic Generation Toolset - PIT Traffic Profile...

Catalog: PHQXO-IP-NGT

(0)

In Stock!

Add to Cart

Phabrix PHQXO-UHD UHD/4K SDI upgrade for PHQXL01-3G or PHQXL01E-3G adds SDI...

Catalog: PHQXO-UHD

(0)

In Stock!

Add to Cart

Phabrix PHQXK1 19 inch rack mount kit (single) for 1x PHQX/PHQXL chassis

Catalog: PHQXK1

(0)

In Stock!

Add to Cart

Phabrix PHQXK2 19 inch rack mount kit (dual) for 2x PHQX/PHQXL chassis

Catalog: PHQXK2

(0)

In Stock!

Add to Cart

Phabrix PHQXK3 9.5 inch rack mount kit for 1x PHQX/PHQXL chassis

Catalog: PHQXK3

(0)

In Stock!

Add to Cart

Phabrix PHQX-3YEAR PHQX01 3-YEAR Warranty. Upgrade standard warranty period to three...

Catalog: PHQX01-3YEAR

(0)

In Stock!

Add to Cart

Phabrix PHQX-5YEAR PHQX01 5-YEAR Warranty. Upgrade standard warranty period to five...

Catalog: PHQX01-5YEAR

(0)

In Stock!

Add to Cart

Phabrix PHQX01-IP - Qx IP Hybrid IP/SDI Analyzer for ST 2110, ST 2022-6 and 3G/HD-SDI

Packet Interval Timing (PIT) analysis histogram for monitoring network traffic
PIT Logging off ers eff ective longer-term network monitoring
Packet Profile Generator for stress testing video networks
Stream and network analysis tools
Network management multicast support (IGMP2,3)

The Qx range brings together all the advanced, hybrid IP/SDI test and measurement tools required for transitioning to the next generation of video formats, including instruments for rapid fault diagnosis, compliance monitoring and product development.

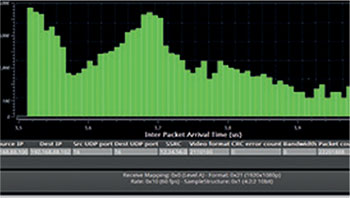

IP Tools for Analysing Congestion and Stress Testing

With the Qx range, you can quickly analyse SMPTE 2110* and 2022-6 IP video network traffic to determine the cause of typical problems like packet congestion, packet loss and jitter

A high performance IP toolset includes a decapsulator with Packet Interval Timing (PIT) analysis for network traffic monitoring. There’s also a unique signal generator with IP encapsulator and Packet Profile Generator for stress testing video networks.

Fast, Automated 12G Physical Layer Analysis

Qx offers the fastest 12G-SDI physical layer testing, with its RTETM (Real-time Eye) technology instantly highlighting any SMPTE compliance issues, including eye under/overshoot.

Additional 12G/6G/3G/HD-SDI physical layer tools include Jitter analysis with monitoring across five specified frequency bands, as well as UHD/HD pathological test patterns. Builtin automation control allows testing to be performed faster, more reliably and at lower cost.

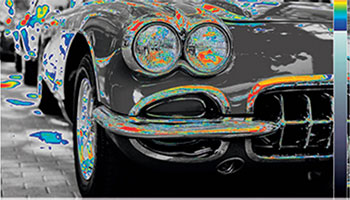

Advanced HDR Visualization and Analysis Toolset

Qx IP

IP, 4K/UHD plus HDR Generation, Analysis and Monitoring

The advanced Qx IP offers hybrid IP/SDI generation, analysis and video/audio monitoring for SMPTE 2110* and 2022-6 plus 3G/HD-SDI environments. Designed for IP network traffi c analysis and stress testing, the solution is also available with RTETM (Real-time Eye) 3G/HD-SDI physical layer testing. Qx IP can be upgraded with a comprehensive HDR/WCG analysis toolset, signal generator and even 12G/6G-SDI performance.

IP Toolset

SMPTE 2110* & 2022-6 Network Analysis

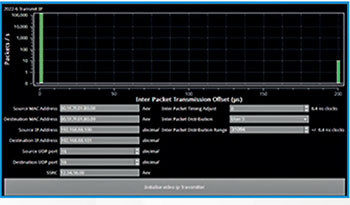

Packet Profile Generator

Unique Packet Profile Generator for stress testing video networks
Create different packet interval timing distribution profi les to simulate IP network congestion conditions

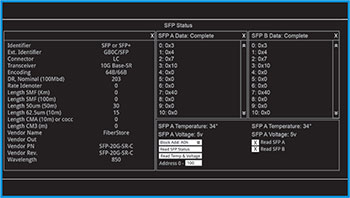

SFP Status Monitoring

SFP status for monitoring physical network connection

High Dynamic Range and WCG tools

Dolby PQ, HLG* and SLOG3*

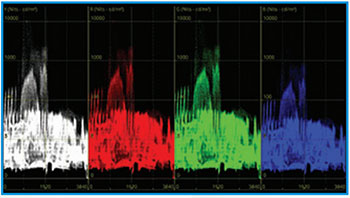

Waveform Monitor

Graticules for SDR and HDR
YCbCr/YRGB and single trace modes
Tooltip co-ordinate display
12-bit resolution
H/V pan and zoom
Picture linked cursor*

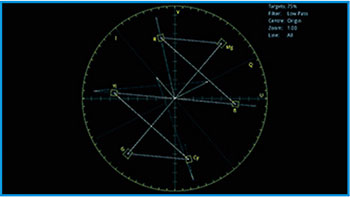

Vectorscope

Graticules / Targets for SDR and HDR*
Tooltip co-ordinate display
12-bit resolution
Zoom to targets
User defi nable targets*
Picture linked cursor*

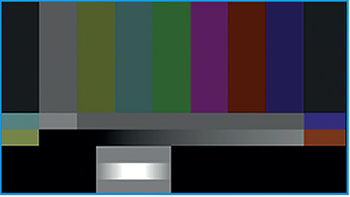

Generator

BT.709, BT.2020 colour space HDR patterns
SDR patterns in HDR containers
Pathological overlay
Full range of HD to UHD standards

12G/6G/3G/HD-SDI

Physical layer and signal analysis tools

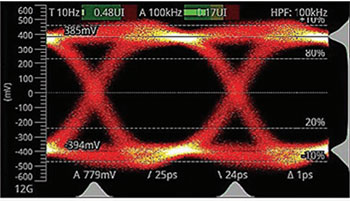

Real-time Eye

Instant, Real-time Eye (RTE) for testing SMPTE compliance issues, including under / overshoot
Rise time and fall time
Amplitude histograms
Single or multiple eyes
Traffic lights instantly provide compliance indication

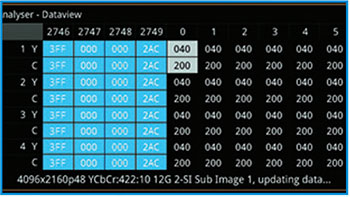

SDI Data View

Presents the raw data in the signal as hex, decimal or binary
Pixel value shown by frame and line value
Presents entire frame with active video, TRS words and blanking data

*Upcoming software release

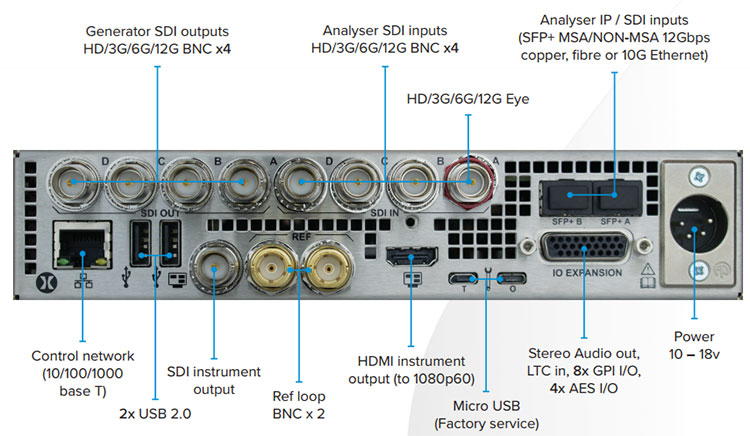

Rear Panel

General Specifications
Formats supported (generation, analysis & monitoring)	IP SMPTE 2022-6 IP SMPTE 2110* 3G/HD-SDI (12G/6G-SDI is optional upgrade) *Upcoming software release
Video inputs / outputs	4 x SDI for HD, 3G, 6G, 12G 75 Ohm terminated BNC Inputs 4 x SDI for HD, 3G, 6G, 12G 75 Ohm terminated BNC Outputs RTE Real-time Eye input (12G/6G/3G/HD-SDI) x 1 (SDI input A) BNC SFP+ MSA/NON-MSA 12 Gbps copper or fibre SDI, 10G Ethernet
Audio inputs / outputs	4 x 75 Ohm AES selectable I/O (26 pin high density 'D' Type socket) 1 x Stereo analogue audio output (26 pin high density ‘D’ Type socket) 8 channel 48kHz PCM audio on HDMI and SDI Instrument output
User interface	HDMI 1.4 instrument output, 1920 x 1080, 4:4:4 RGB, Type A
Reference	2 x 75 Ohm BNC high impedance looping reference input, tri-level or B&B with cross lock
Networking & control	10/100/1000 BASE-T 8 x bi-directional GPI (26 pin high density 'D'' Type socket)
Monitoring	Internal loudspeaker Beeper
Form factor	253 x 44 x 211 mm (width x height x depth) excluding projections 1.9 kg weight
Electrical	Power consumption 50W typical, 70W max 4 Pin XLR power connector, 12V nominal (10V-18V) AC Power adapter (included), 90-264VAC, 120W
Warranty	1 year standard increased to 3 – 5 years with Extended Warranty package
*Upcoming software release
