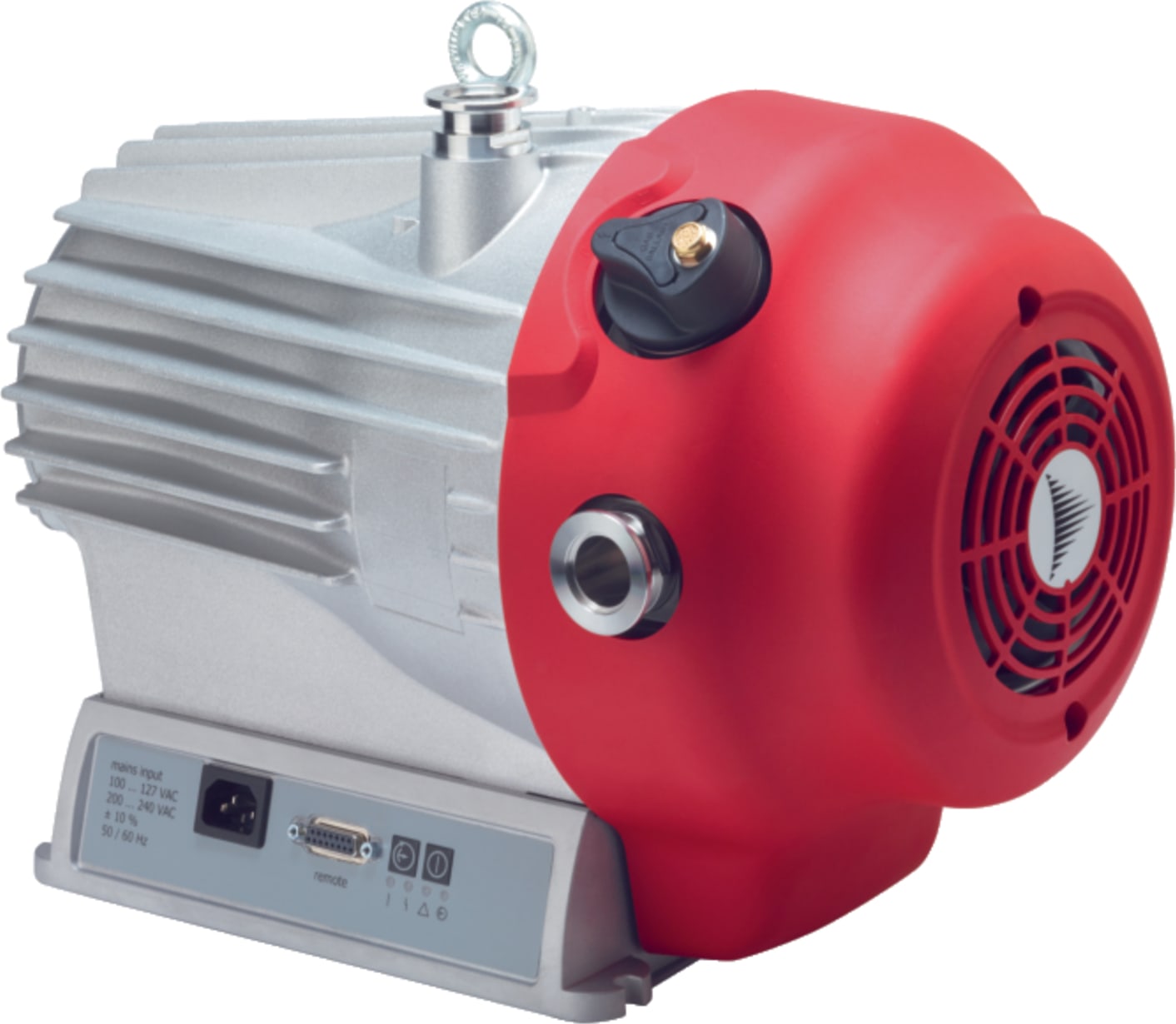

HiScroll 12, Scroll Pump, Standard, Including ATEX
The Pfeiffer Vacuum HiScroll 12 offers a pumping speed of 12.1m³/h, paired with an excellent end pressure for dry-sealing vacuum pumps, and is universally suitable for a wide range of applications.
HiScroll - the oil-free vacuum pumps
The HiScroll series consists of three dry and hermetically sealed scroll pumps with a nominal pumping speed of 6 - 20 m³/h. The pumps are characterized in particular by their high efficiency and low noise level. The pumps are characterized in particular by their high performance when evacuating against the atmosphere. Their powerful IPM1) synchronous motors with sensorless INFORM control2) achieve up to 15% higher efficiency compared to conventional drives. This enables maximum performance at low temperatures, resulting in more efficient cooling of compact systems and equipment.
Intelligent control
The HiScroll‘s adaptive fan control ensures optimum cooling under different operating conditions and also reduces noise emissions when the full power of the pump system is not required. A unique integrated pressure sensor (optional) enables fully automatic pressure regulation together with intelligent speed control. This helps to minimize energy consumption, wear and noise emission, thus ensuring longer maintenance cycles.
HiScroll pumps can be easily connected via RS-485 or ProfiNet to other Pfeiffer Vacuum products, such as turbopumps or display and control units, as well as to a higher-level external control system.
Lowest noise emission on the market
The HiScroll pumps are extremely quiet with <47 dB[A] (in stand-by mode <42 dB[A]). Their very compact design and low-vibration operation also distinguish the pumps. This makes them ideal for use in quiet working environments, for example on mass spectrometers, in research institutes, or in leak detection systems.
High safety at low cost:
High water vapor compatibility is ensured by the two-stage gas ballast valve. It also allows a more individual adjustment to your process. The built-in non-return valve and the self-regulating operation of the pump assure safe operation.
The proven quality of Pfeiffer Vacuum components assures a long service life. Pump maintenance is simple and allows for short service times, while the efficient motor helps reduce electricity costs.
ATEX certification:
HiScroll pumps are already certified to ATEX II 3/-G Ex h IIC T4 Gc X +5° C ≤ Ta ≤ +40 °C as standard. This means that HiScroll pumps can be used with internal explosion protection of equipment category 3G for Ex zone 2 with gas types IIC. These versions are only available without the optional integrated pressure sensor, as only ATEX-certified accessories may also be used in ATEX applications.
