The IOS uses WiFi capability as a smart solution for effective remote control and data log transfer from the IOS to a laptop, mobile phone or tablet.
At 150 Mbps, the Nano router creates an instant WiFi hotspot and is designed to provide excellent wireless performance, allowing the remote data transfer to become an IOS reality. The WiFi hotspot range is approximately 20 metres indoors and a greater range outdoors.
- Saves time.
- Makes field analysis simpler.
- Individual user connection.
- IOS can be set up anywhere.
- A simple and 'smart' solution to oil contamination sampling.
Engineered for Simplicity
Parker Quality and Reliability as Standard.

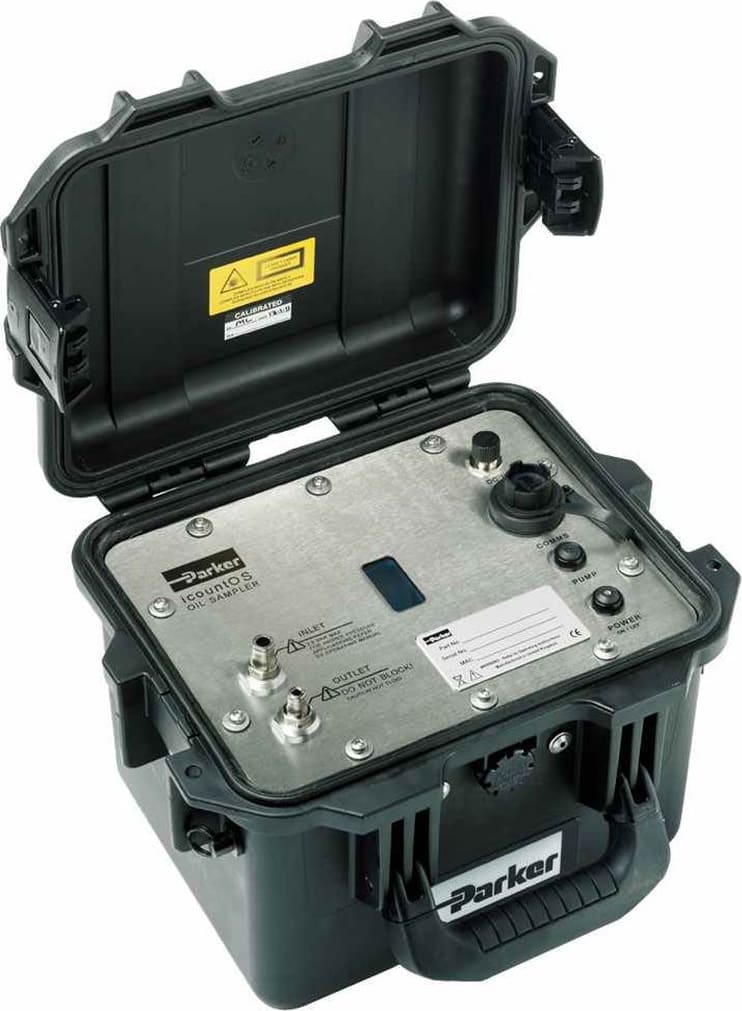

The IOS quality condition monitor for hydraulic oils uses advanced technology to produce extremely repeatable results.
At the heart of the system is a sophisticated laser and detector, using a light obscuration flow cell, providing continuous measurement of fluid flow passing through a sample tube.
Measurements are taken every second as standard, although measurement intervals and test period can be defined by the user, with results being reported immediately and updated in real time.
Data is displayed on a built-in OLED digital display and can also be stored for subsequent upload via the embedded icount’s web page interface connecting through an RJ45 cable.
Proven Laser Detection Technology
Parker’s experience in laser light obscuration and the application of that technology in portable particle counting is what places the icountOS ahead in the market.
Hydraulic Circuit
How the icountOS Works
Fig 1. |
Fig 2. |
Fig 3. |
|
|
|
In simple terms, a controlled column of contaminated fl uid enters the laser optical scanner chamber. This design maintains contamination distribution within the fl uid. |
On reaching the IOS’s photo diode cell, the accurate laser light is applied and projected through that oil column. The laser diode projects an image of the sample onto a photo diode cell. |
A cast image or shadow created by the contaminant in the oil creates a measurable change in the light intensity. |
Low Pressure Connection Set Up
We recommend that the IOS is positioned in a safe, stable area, as close as possible to the system output and only the hose fi ttings provided are used.
Dimension
