Parker FG-K17000-KW - ANALEXpqL Ferrous Debris Monitor

Name: Parker FG-K17000-KW - ANALEXpqL Ferrous Debris Monitor
Brand: Parker
SKU: ParkerFG-K17000-KW
Price: 24642.20 USD
Availability: InStock

0 reviews | Catalog: FG-K17000-KW | Model: Parker FG-K17000-KW

Compare

ANALEXPQL - PQ Instrument

For fluid type: Greases, oil
Minimum fluid temperature: 20 °C (68 °F)
Maximum fluid temperature: 24 °C (75 °F)
4x USB ports, PC and Ethernet connectivity
Hydraulic & Industrial Process Filtration Division EMEA
4 second cycle time
IP20 protection rating

View Product Details

Your Price: $24,642.20

In Stock:

View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Parker FG-K17000-KW ANALEXPQL - PQ Instrument	Parker FG-K6-101-KW+ DIGI Plus Test Cell (Oil H2O Test Kit)
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Parker FG-K17000-KW

For fluid type: Greases, oil
Minimum fluid temperature: 20 °C (68 °F)
Maximum fluid temperature: 24 °C (75 °F)
4x USB ports, PC and Ethernet connectivity
Hydraulic & Industrial Process Filtration Division EMEA

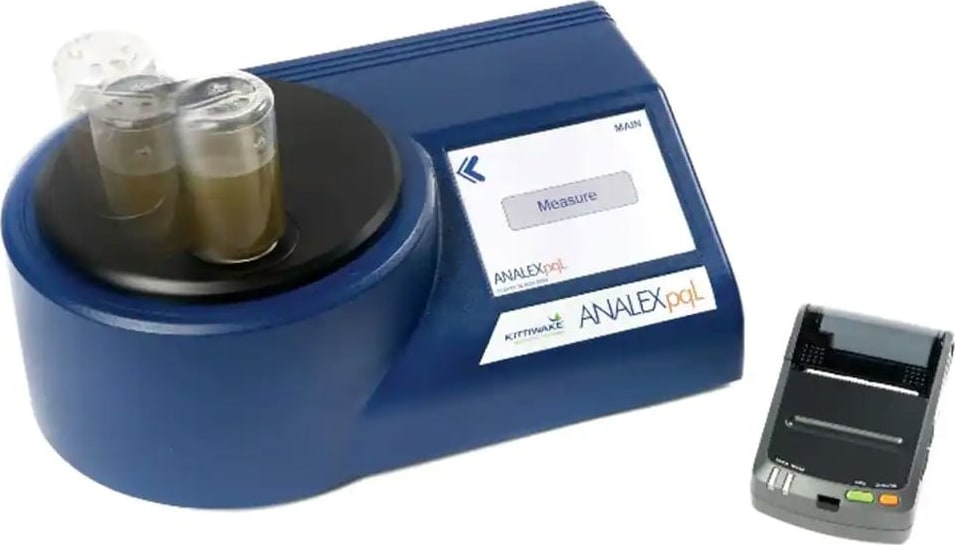

ANALEXpqL Ferrous Debris Monitor

The ANALEXpql is developed to replace the widely used pqM and pqA. Using all new hardware, software and the latest technology, the highly accurate ANALEXpql is an essential addition to the modern used oil analysis laboratory.

The ANALEXpql ferrous debris monitor provides the most accurate means of detecting and measuring ferrous wear debris in lubricating oils, hydraulic oils and greases.

Parker FG-K17000-KW Specifications
For Fluid Type	Greases, Oil
Technology	Filtration, Hydraulics
Minimum Fluid Temperature	20 °C, 68 °F
Communication Interface	4 x USB Ports, PC and Ethernet Connectivity
Maximum Fluid Temperature	24 °C, 75 °F
Operating Temperature	10 to 30 °C, 50 to 86 °F
Brand	Parker
Division	Hydraulic & Industrial Process Filtration Division EMEA
Industry	Marine
Product Type	Condition Monitor
Product Style	Particle Detector/Counter
Operating Pressure	n/a
Flow Rate	n/a
Port Size	n/a
Port Type	n/a
Sensing Method	Ferrography
Accuracy	1%
Electrical Requirements	24 VDC
Signal Output	RS232
Cycle Time	4 second
Specifications Met	CE Certification
Ingress Protection Rating	IP20
Materials of Construction	Steel
Seal Material	n/a
Body Material	Steel
Weight	3.6 kg
Height	140 mm
Length	230 mm
Width	270 mm
Package Type	Rugged Design Portable Case
Sensor Type	Ferrous Debris Monitor
