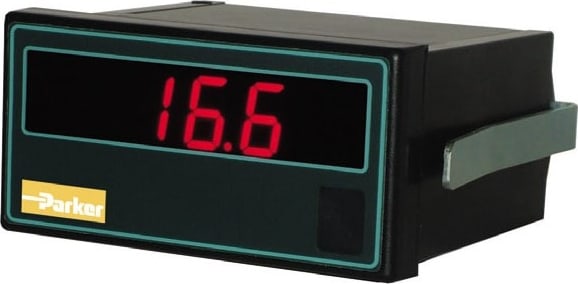

Parker DDU1001 - Moisture Sensor Display 11-30Vdc

Name: Parker DDU1001 - Moisture Sensor Display 11-30Vdc
Brand: Parker
SKU: ParkerDDU1001
Price: 1871.63 USD
Availability: InStock

0 reviews | Catalog: DDU1001 | Model: Parker DDU1001

Compare

Digital Display Unit 11-30 VDC

View Product Details

List Price: $3,081.34

Your Price: $1,871.63

In Stock:



Product	Parker DDU1001 Digital Display Unit 11-30 VDC	Parker iCountMS Mineral NPT Moisture Sensor, Mineral Oils, 1/4 inch " NPT, M12 8-way conne ...	Parker iCountMS Mineral SAE Moisture Sensor, Mineral Oils, SAE-6, M12 8-way connector	Parker MS2202110 Moisture Sensor G1/4 inch BSPP	Parker MS2204110 Moisture Sensor	Parker MS2204410 Moisture Sensor	Parker DDU1002 DIGITAL DISPLAYUNIT 110-240VAC	Parker MS2204510 MOISTURE SENSOR IND SAE6 VITON
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Parker DDU1001 Specifications
Power supply	11 - 30 Vdc
Accuracy	± 0.1% typical
Sample rate	2.5 per second
Operating temp (°C)	0 - 50
Storage temp (°C)	-10 to +70
Display	N3.5 digit LEDA
Power output (Vdc)	24
Weight (kg)	0.30
Panel cutout (mm)	93x45 ± 0.5
Dimensions (mm)	48x96x93
Bar Graph Indicator (PBG8341A)
Construction	Housing - nylon 6/6, window - acrylic, bezel/board supports - ABS, pins - phosphor bronze
Signal input	(By dipswitch configuration): Off - differential up to 5V A - single signal (Ref. 0V) up to 5V B - single signal (Ref. 1V) up to 6V
Cut out size	45.6mm x 45.6mm
Fixing	Push fit panel thickness 0.9mm to 3.2mm
Sealing	Designed to IP50 standard. (Front face may be silicon sealed after LED configuration)
Scale	Supplied 0 to 100% in horizontal Other scales, in volume, consult Parker Hannifin
Scaling factors	10% to 100% range. Fully adjustable
Lamp intensity	4mcd each
Front viewing	Polarized
