• 110/220 volts - 60 Hz
• Outlet Filter Element: None
• Interface Option: Particle Detector
• Maximum Flow Rate: 10 gpm (38 lpm)
• Maximum Pressure Rating: 150 PSI (10.3 bar)

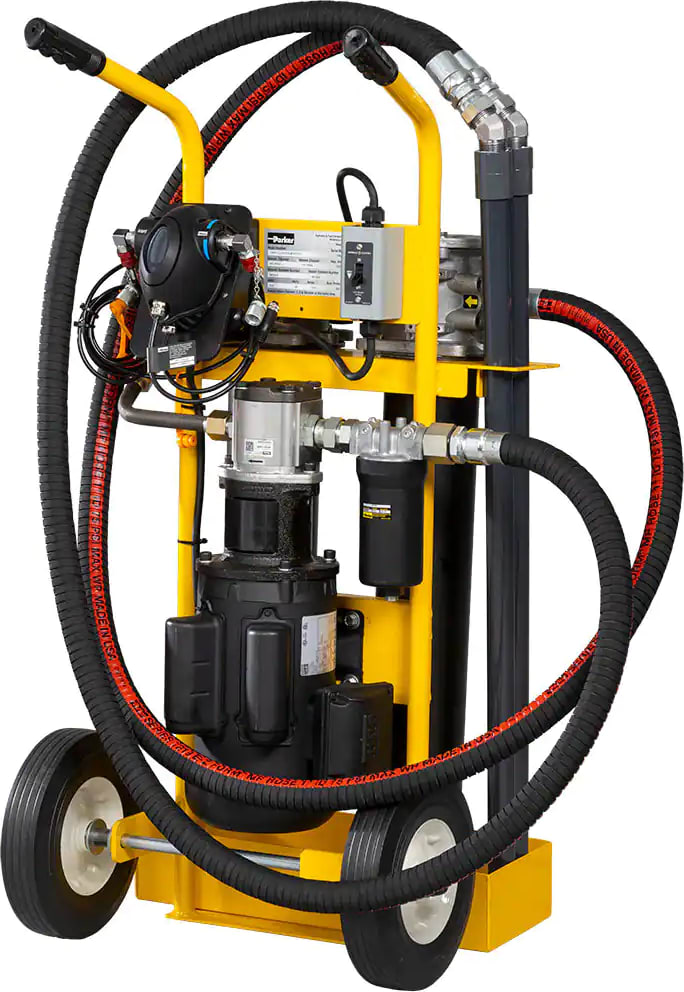

The Parker Portable Filter Carts use two high capacities ModuFlow Plus filters for long element life and better system protection. The first stage (inlet) filter captures larger particles, while the second stage (outlet) filter captures finer particles or removes water.

Parker Portable Filter Carts use a rugged industrial quality gear pump, which gets the job done fast. Using a Parker portable filter cart is the most economical way to protect your system from the harm that can be caused by contamination.

Parker is pleased to announce its R&D effort to offer a diagnostic filter cart - the Intelli-Cart. The Parker icountPD particle detector, the most up-to-date technology in solid particle detection, can be mounted to the standard frame of the filter cart for enhanced monitoring of your hydraulic system. The Intelli-Cart with particle detector provides an excellent method for filtering and trending contamination levels.

The icountPD, coupled with the filter cart is a cost-effective solution to fluid management and contamination control.

• Filtering New Fluid Before Using
• Transferring Fluid from Drums or Storage Tanks to System Reservoirs
• Conditioning Fluid that is Already in Use
• Complimenting Existing System Filtration
• Removing Free and Emulsified Water from a System
• For Use with Fluids such as Hydraulic, Gear and Lube oils

• Two Filters are Better than One! Creating 2.5 times the Dirt Holding Capacity, Longer Element life, and Element Cost Savings
• A Wide Variety of Particulate Elements Available, which Provides the Capability of Achieving Desired Cleanliness Level of Fluid, and Extending the Fluid Life and System Performance
• The Heavy Duty Frame is Rugged, Durable, and Built to Last, Preventing Unnecessary Maintenance and System Downtime
• Lightweight and Portable, Which is Easy to Move to a Site, and Only Needs One Person to Operate
• Two Flow Rate Models Are Offered, Enabling Use in Low or High Viscosity Applications
