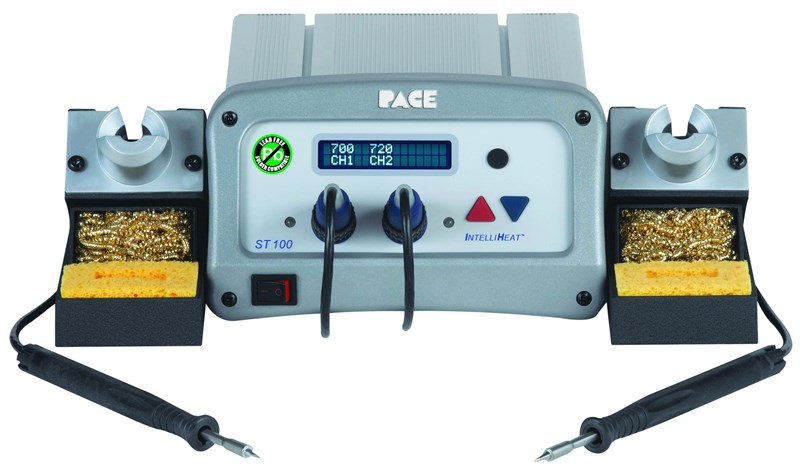

Pace ST 100 Dual Channel Soldering System with TD-100 Iron
The Answer For Lead Free Solder Transition
The ST 100 is a fully programmable system featuring two, individually controlled, IntelliHeat® compatible handpiece channels. The system allows for 2 soldering irons, 2 MiniTweezers or one of each to co-exist on a workbench.
![8007-0525_tn]()
|
- The ST 100 is loaded with features to improve quality, control your process, increase through-put, and extend tip life.
- The system is fully programmable and can be password protected to prevent unauthorized changes.
- Both channels can be used simultaneously, and at different temperatures
|
Technicians can become frustrated with being locked into a single temperature. Additionally, a higher set temperature is often desired when working with Lead Free solders. The ST 100 has the solution! An approved, unique, operating range or process window, can be programmed FOR EACH HANDPIECE, allowing operators the flexibility to do their work, while eliminating the risks associated with giving techs access to the entire temperature range of the system. Also, a process window can be defined for the handpiece using leaded solder, and a separate process window can be defined for the handpiece using lead containing solder. Operators can be given a range of 5 to 450°F to operate within!
Significantly Lower Your Costs with TD-100 Tip-Heater Cartridges
The system is packaged with 2 TD-100 Tip-Heater Cartridge Soldering Irons, along with Tip & Tool Stands. Crafted by a team of surgical instrument engineers to eliminate fatigue and improve control, the PACE TD-100 is simply the most ergonomic, powerful and easy to use soldering iron on the market today! The handpiece uses a patented Tip-Heater Cartridge which can be changed in seconds, and most tips heat up within 10 seconds flat!
The Pace ST 100 is compatible with the IntelliHeat handpieces listed below:
