• Motorized solder feeder
• Compatible with ADS200 and other PACE units using TD-200 or TD-100A Irons (sold separately)
• Enables operator to solder with one hand, freeing up the other hand for added tasks
• Ideal for multi-shift and repetitive production environments
• Intuitive analog dials can automatically program feed time and feed-speed

PACE’s new SF200 is a motorized solder feeder which allows the operator to solder with one hand, freeing up the other hand for added tasks, such as using a tweezer or other tools to hold a component, cable, or wire in place.

Compatible with ADS200 production soldering stations

The SF200 pairs with PACE’s ADS200 and their compatible TD200 irons. The ADS200 series are high-power, yet low-cost professional soldering stations for serious production solder techs. Please note, ADS200 and TD200 are sold separately and can be found in the accessories section of this page.

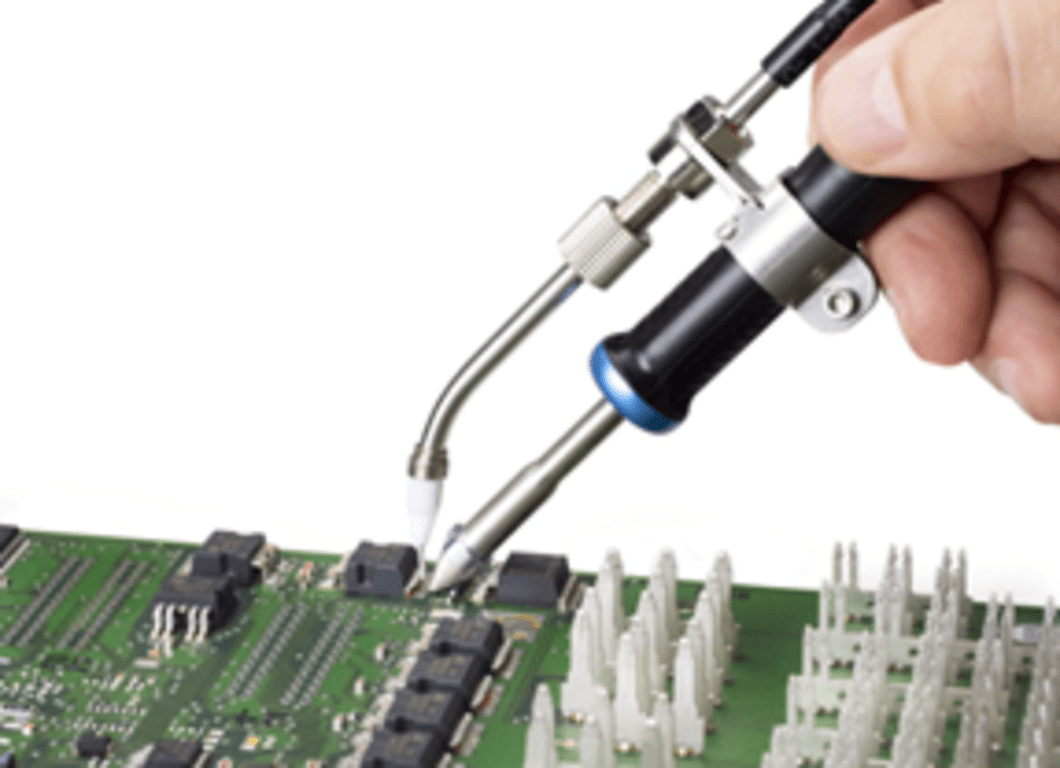

The SF200 uses a feeder tube system that securely clamps to PACE TD-200 or TD-100A soldering irons (sold separately). It has a guide pipe and Teflon nozzle that directs flux-cored wire solder to the solder joint. A foot pedal-actuated motor drive system with pinch rollers feeds solder wire through the tube, permitting precise operator control over the amount of solder used and how quickly it is applied. Thus, you do not end up with inconsistent solder joints that have too much or too little solder.

Ideal for multi-shift and repetitive production environments, the SF200 automatically controls feed time and feed speed, and an adjustable solder Retraction feature reduces excess solder feed and evaporation of flux. A unique Solder Feeder Adaptor Bracket, constructed of heavy-duty stainless steel, allows for secure multi-positional mounting on compatible irons.

Features include:

•  Intuitive analog dials can automatically program feed time and feed-speed
•  Solder Feeder Adaptor Bracket features heavy-duty stainless steel construction for ultra-secure mounting on iron
•  Feed wire from the top (Top-Feeding) or underside (Bottom-Feeding) of iron
•  Instant tip replacement without removing feeder tube – no “anti-rotation screws” required.
•  Manual Mode: solder wire is continuously delivered as long as the foot pedal is actuated
•  Auto Mode: a specific length of solder is applied each time the foot pedal is actuated
•  The foot Pedal Switch included
•  Adjustable solder Retraction feature reduces excess solder feed and evaporation of flux
