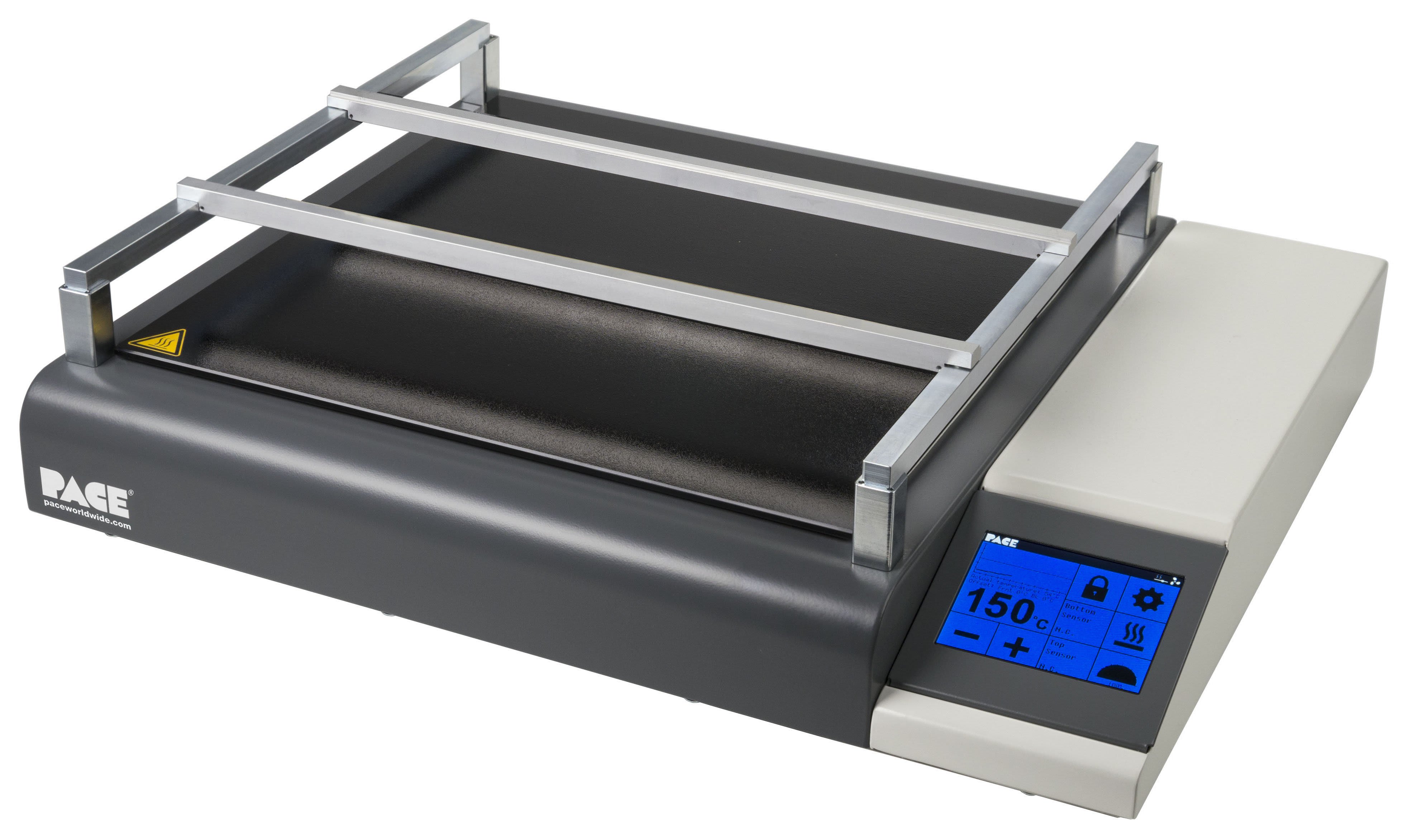

Pace PH-100 - Low Profile PCB Preheater

Name: Pace PH-100 - Low Profile PCB Preheater
Brand: Pace
SKU: PacePH-100 8007-0572
Price: 2221.29 USD
Availability: InStock

0 reviews | Catalog: 8007-0572 | Model: Pace PH-100 8007-0572

Compare

PH-100, 115V A16

Sleek, incredibly low working height improves operator comfort and reduces fatigue, perfect for under microscope
Intuitive 3.5" resistive Touch Screen Display provides easy adjustment of all operational, temperature and power settings
Customize color scheme and button layout at will
4 Robust IR Heating Elements provide 1600W of power
Large 300mm x 300mm (11.8" x 11.8") heating area
Efficiently transmits heat without emitting irritating visible light as other IR systems do
Glass-ceramic surface re-emits heat in uniform manner, providing fast and even preheating with minimal shadowing
Closed-Loop Temperature Controlled by either internal sensor or one of two external thermocouples which can precisely monitor and control temperature on the PCB top or bottom-side
Front and Back Heating Zone temperatures can be independently controlled, or turned off completely
Magnetic PCB Holder is easily adjusted to a variety of height/size combinations
Handles large assemblies (295mm/11.6" x unlimited) as well as small or irregularly shaped boards
Set-temperature range of 20° - 200°C (68° - 392°F)
Independent temperature offset adjustment of heating zones +/- 50°C (90°F)

View Product Details

List Price: $2,338.20

Your Price: $2,221.29

Sign-in for GSA Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HOBO by Onset Case Vented Lock Security Case

Why Use Bottom-Side Preheat? Benefits include:

Promotes rapid solder reflow while preventing heat damage and thermal stress or shock
Ensures homogenous temperatures across package/PCB
Decreases warping & maintains planarity of the rework site
Reduces top-side temperature and dwell-time requirements
Increases soldering iron tip-life by allowing lower tip temperatures

Rapid, Safe Soldering or Desoldering on High Mass, Heat-Sinking Assemblies

The PACE PH100 is a high powered (1600W), non-contact infrared heating system with an ergonomic, low-profile design which permits operators to safely pre-heat PCBs for fast, efficient soldering, rework or repair, even on the highest mass, heat-sinking, lead-free PCBs.

Model: PH-100 Specifications
Power Requirements	120 VAC, 50-60Hz
Maximum Power Output	1600 Watts
Weight	8 kg (17.6 lbs.)
Dimensions	355mm (14") D x 430mm (17") W x 60mm (2.4") H without Board Holders
Board Size Capacity	Handles large 295mm (11.625") x unlimited PCBs
Working Height	Low profile design with working height of 76mm (3.0") with Board Holders (height above bench, no feet) Lowest Height: about 9mm (.35") above glass-ceramic surface Medium Height: about 22mm (.87") above glass-ceramic surface Highest Height: about 37mm (1.46") above glass-ceramic surface
Heating Elements	4 x 400 Watt, Medium Wave IR Emitters (250mm x 60mm / 9.8" x 2.4" ea.)
Heating Area Dimensions	300mm (11.81") W x 300mm (11.81") D
Temperature Control Method	Closed loop temperature control by either internal sensor or one of two external thermocouples (one for the PCB top and the other for the PCB bottom)
Closed Loop Temperature Control	Closed loop control at PCB level to control temperature when thermocouple is selected as the control option.
Temperature Control Modes	Three Control Mode Options: Internal Sensor Mode; External Topside PCB Thermocouple Mode; External Bottom-side PCB Thermocouple Mode
Thermocouple Inputs	Two (2) K-Type Thermocouple Inputs: Top-side and Bottom-side PCB Input
Set Temperature Range	20°C – 200°C (68°F – 392°F)
Touch Screen Display	User friendly 3.5" Resistive Touch Screen
Front and Back Heating Zones	Two (2) separate and switchable heating zones
High Capacity Heating	1600 Watt or 800 Watt, user selectable
Power Meter	Indicates heater activity (duty cycle)
Performance Response Settings	Normal: Heats up quickly; Fine: Heats up slowly with fine control
Temperature Offsets	User selected temperature offsets for each heating zone
Advanced and User Modes	Advanced Mode: All operational settings available; User Mode: Restricts user access to advanced settings
Programmable Pre-Heating	Select Time-at-Temperature preheat phase with audible alarm
Sound Settings	None: Disables sound; Short: Short beep will sound; Long: Longer beep will sound
Lock Screen/Password	Easy setting of password to prevent unauthorized or inadvertent changes
USB Port	Programming/firmware is upgradeable using USB Flash Drive
Magnetic PCB Holder	Easy to adjust board holder with magnetic feet provides 4 different height options (None, Short Standoffs, Long Standoffs, Angled with Short/Long Standoffs)
Safety Agency Approval	CE compliance/certified by TUV
