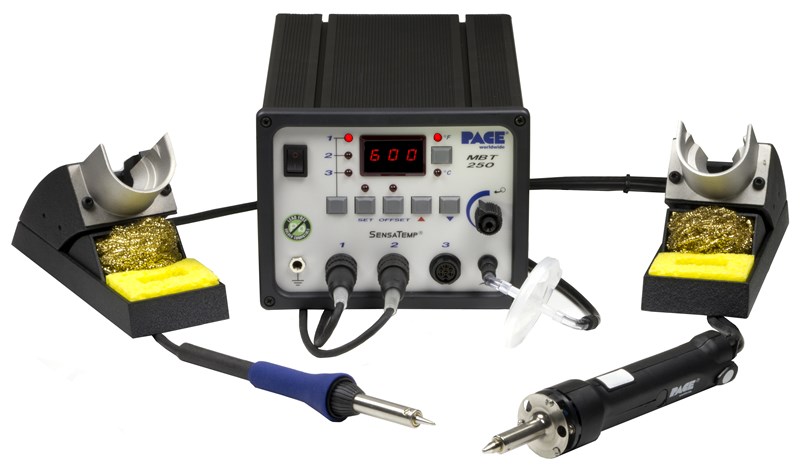

Pace MBT 250-SD Rework System with PS-90 Soldering Iron and SX-100 Desoldering Iron
3 Channel System Independently Powers & Controls 3 Handpieces
The self-contained MBT 250 Power Supply (PPS-85) features three individually powered and controlled handpiece channels, providing the capability to run 3 different SensaTemp handpieces simultaneously, and at different temperatures! A digital readout displays the current channel's temperature information, error codes and programming status. The durable extruded aluminum chassis is is ultra-rugged, ESD-safe and takes up minimal space.
![8007-0203_tn]()
|
- Three channel rework system
- SensaTemp Control Technology
- Soldering, desoldering and hot air functionality
- Includes PS-90 soldering iron, SX-100 desoldering iron
- Powers 3 separate handpieces simultaneously, at different temperatures
- Fully self contained – external compressed air is not required
|
MBT 250-SD Configuration - Solder, Desolder
The
PS-90 Universal Soldering Iron is excellent for general purpose and heavy-duty soldering and SMT rework operations where high thermal capacity and flexibility are required. The Iron provides a wide range of SMD and Thru-Hole installation and removal capability as well as unsurpassed thermal performance on heavy, multilayer Thru-Hole assemblies at safe, lower working temperatures.
Ideal for both through-hole and surface mount desoldering, the clog-free
SX-100 Sodr-X-Tractor is the best performing solder extractionSX-100 Desoldering Handpiece tool on the market today. The handpiece can be used with a disposable Sodr/Flux-Trap paper solder collection chamber or re-cleanable Glass Chamber. When the filter is full, just pull out the chamber, pop out the old filter and replace with a new one - all within 15 seconds! The heater's laser-trimmed, Platinum RTD Temperature Sensor is 5 times more accurate than conventional thermocouples.
The MBT 250 SD is compatible with the following SensaTemp handpieces:
- SX-100 Sodr-X-Tractor desoldering iron
- TT-65 ThermoTweez tweezer
- TP-65 ThermoPik
- PS-90 soldering iron
- TJ-70 ThermoJet hot air pencil
- SX-70 Sodr-X-Tractor desoldering iron
- PV-65 vacuum pick up wand
