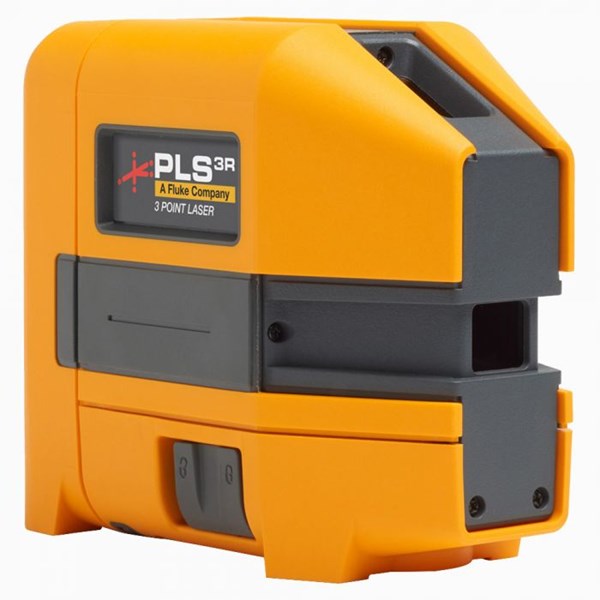

PLS 3R KIT 3-Point Red Laser

0 reviews | Catalog: 5009357 | UPC: 095969876353 | Model: PLS 3R KIT

Compare

3-POINT RED LASER KIT

Laser beam color Red
Self-Leveling Three-Point
Accuracy of ≤1/8" at 30 foot
3-Point Red Laser Level
Quick plumb layout and installation
Pendulum lock
Kit includes PLS 3R Laser Level, PLS Canvas Pouch, PLS BP5 Alkaline Battery Pack, PLS FS Floor Stand, PLS MLB Magnetic L-Bracket, PLS RRT4 Red Reflective Target

View Product Details

List Price: $327.99

Your Price: $295.19

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	PLS 3R KIT 3-POINT RED LASER KIT	PLS 3R Z 3-POINT RED LASER BARE TOOL
Price
In Stock
Accuracy	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )
Compare	Add to compare	Add to compare

Recommended for you

PLS 3R KIT Accessories

Choose a Category

Cases

for the PLS 3R KIT

PLS C18 LASER LEVEL TOOL BOX

Catalog: 4985124

(0)

In Stock!

Add to Cart

PLS 3R Z
`3-Point Laser`

Laser beam color Red
Self-Leveling Three-Point
Accuracy of ≤1/8" at 30 foot
3-Point Red Laser Level
Quick plumb layout and installation
Pendulum lock

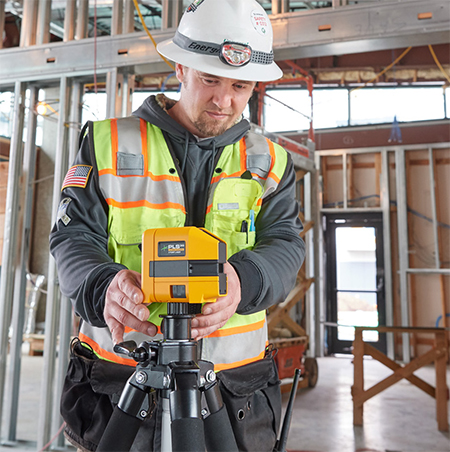

This self-leveling three-point red and green laser level allows for fast, accurate layout of plumb reference points and is excellent for steel stud framing, HVAC installation, electrical installation, and residential construction.

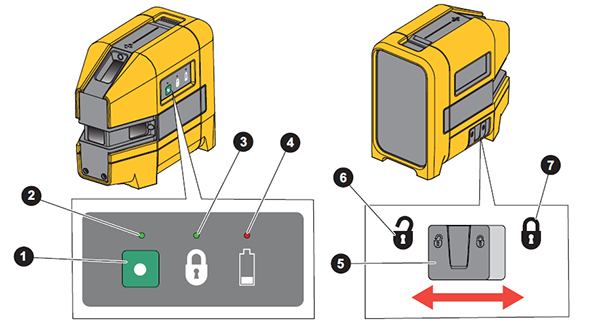

3-Point Laser Controls

Power button: Turns on or off the lasers.
Laser LED: Shows green when the lasers are on.
Lock LED: Shows green when the laser lock is enabled.
Battery LED: Shows red when the batteries need to be replaced.
Laser lock switch: Slides to lock or unlock the lasers.
Laser unlock position: The self-leveling feature, keeps the lasers visible when the Product tilts ≤4 ° in any direction. When the Product tilts >4 ° in any direction, the lasers do not show. The Laser indicator LED stays green to indicate that when you return the Product to an upright position, the lasers show again.
Laser lock position: Keeps the lasers visible even when you tilt the Product >4 °. The lasers blink twice every 5 seconds to indicate the self-leveling feature is disabled. Use to align items diagonally such as a stair rail.

PLS 3R General Specifications
Accuracy	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )
Self-leveling range	4°
Power supply	BP5 (3xAA)
Operating time	+ 30 hours continuous (red only)
Dimensions	4.6 in x 2.5 in x 4.1 in (116 mm x 64 mm x 104 mm)
Weight	1.3 lbs (0.6 kg)
Drop test	3 ft (1 m)
Water and dust protection	IP54
Warranty	Three year best-in-class warranty
Laser Color	Red

Distance Meter/Laser Distance Meter Template
Accuracy	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )
Test Equipment General Attributes
Warranty	3 YEARS
IP Rating	IP54
Product Weight	1.3 LBS
Product Height	4.1 IN
Product Length	4.6 IN
Product Width	2.5 IN
HTS/Schedule B Number	9031499000
ECCN Number	EAR99
Battery Type	AA Battery Type BP5 (3xAA)
Power Supply Voltage	Battery Powered Power Supply Voltage BP5 (3xAA)
Country of Origin	China
Shipping Height	10.38 IN
Shipping Length	15.25 IN
Shipping Width	8.00 IN
