PLS 180R SYS Cross Line Red Laser System

0 reviews | Catalog: 5019428 | UPC: 095969878104 | Model: PLS 180R SYS

Compare

CROSS LINE RED LASER SYSTEM

Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
Red beam laser
Horizontal fan angle 180 °
Vertical fan angle 130°
Durable pendulum lock
IP54 rating to limit dust and water entry for years of operation on the job site
Quick layout and installation projects

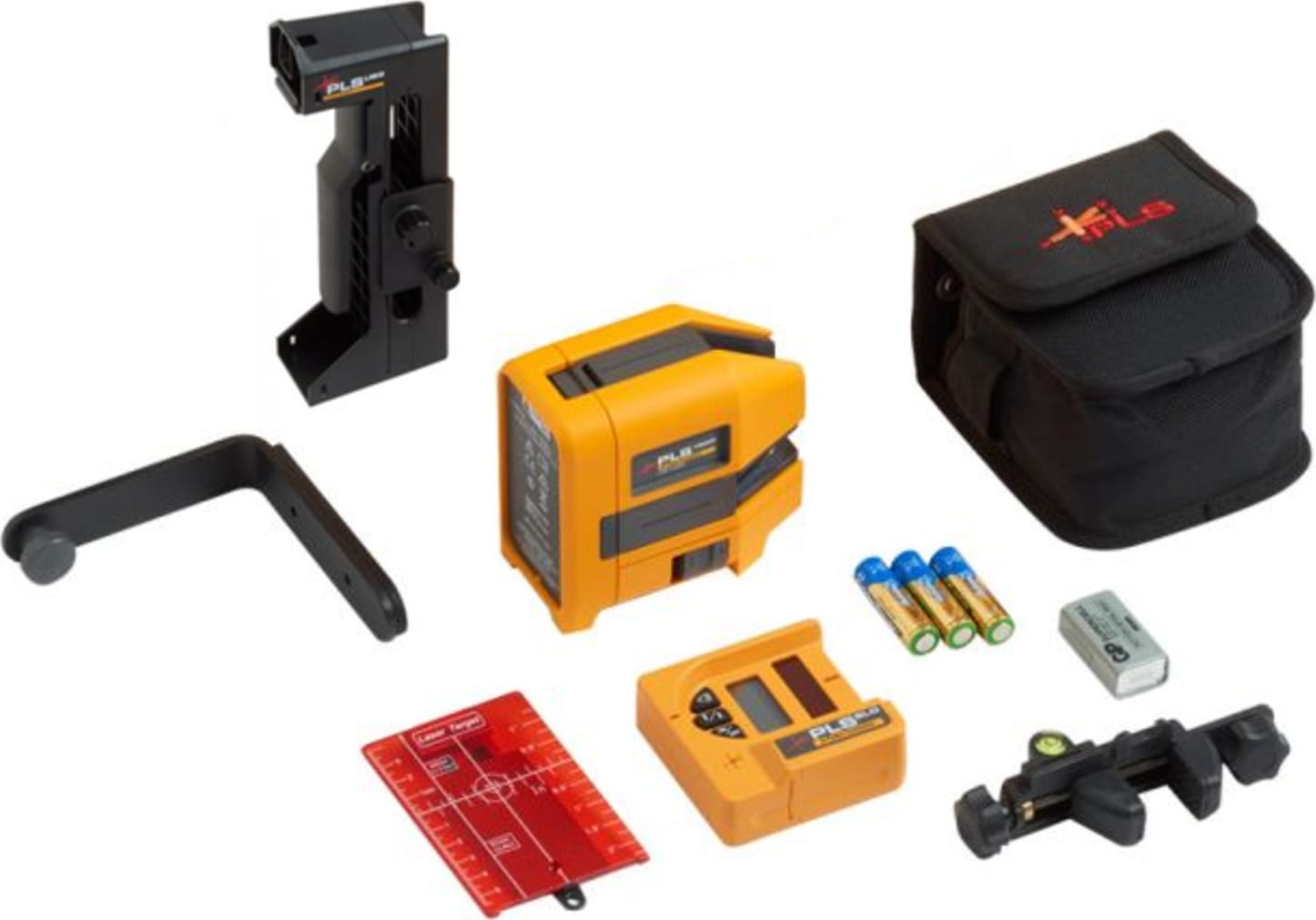

System includes PLS 180R laser level, PLS canvas pouch, PLS BP5 alkaline battery pack, PLS SLD RED laser line detector, PLS 60520 SLD clamp, PLS UB9 universal ceiling and wall bracket, PLS MLB magnetic L-bracket and PLS RRT4 red reflective target

View Product Details

List Price: $709.99

Your Price: $638.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	PLS 180R SYS CROSS LINE RED LASER SYSTEM	PLS 180R Z CROSS LINE RED LASER BARE TOOL
Price
In Stock
Accuracy	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )
Compare	Add to compare	Add to compare

Recommended for you

PLS 180R SYS Accessories

Choose a Category

Cases

for the PLS 180R SYS

PLS C18 LASER LEVEL TOOL BOX

Catalog: 4985124

(0)

In Stock!

Add to Cart

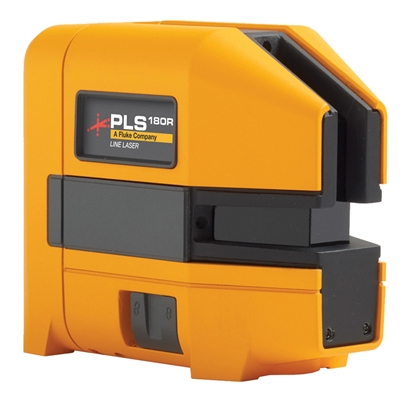

PLS 180R Z
`Cross Line Laser`

Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
Red beam laser
Horizontal fan angle 180 °
Vertical fan angle 130°
Durable pendulum lock
IP54 rating to limit dust and water entry for years of operation on the job site
Quick layout and installation projects

This self-leveling cross line laser level in both red and green is designed for multiple applications including framing, acoustic ceiling installation, tile installation, and other residential and commercial construction tasks.

Cross Line Laser Controls

Laser LED: Shows green when at least one laser is on.
Lock LED: Shows green when the laser lock is enabled.
Battery LED: Shows red when the batteries need to be replaced.
Vertical laser button: Turns on or off the vertical laser.
Horizontal laser button: Turns on or off the horizontal laser.
Laser lock switch: Slides to lock or unlock the lasers.
Laser unlock position: The self-leveling feature, keeps the lasers visible when the Product tilts ≤4 ° in any direction. When the Product tilts >4 ° in any direction, the lasers do not show. The Laser indicator LED stays green to indicate that when you return the Product to an upright position, the lasers show again.
Laser lock position: Keeps the lasers visible even when you tilt the Product >4 °. The lasers blink twice every 5 seconds to indicate the self-leveling feature is disabled. Use to align items diagonally such as a stair rail.

Includes PLS 180R laser level
Includes PLS canvas pouch
Includes PLS BP5 alkaline battery pack
Includes PLS SLD RED laser line detector
Includes PLS 60520 SLD clamp
Includes PLS UB9 universal ceiling and wall bracket,
Includes PLS MLB magnetic L-bracket
Includes PLS RRT4 red reflective target

PLS 180R Specifications
Accuracy	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )
Self-leveling range	4°
Power supply	BP5 (3xAA)
Horizontal fan angle	≥ 180°
Vertical fan angle	≥ 130°
Operating time	+ 30 hours continuous (red only)
Dimensions	4.6 in x 2.5 in x 4.1 in (116 mm x 64 mm x 104 mm)
Weight	1.3 lbs (0.6 kg)
Drop test	3 ft (1 m)
Water and dust protection	IP54
Warranty	Three year best-in-class warranty
Laser Color	Red

Tech Specs

Distance Meter/Laser Distance Meter Template
Accuracy	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )
Test Equipment General Attributes
Warranty	3 YEARS
IP Rating	IP54
Product Weight	1.3 LBS
Product Height	4.1 IN
Product Length	4.6 IN
Product Width	2.5 IN
HTS/Schedule B Number	9031499000
ECCN Number	EAR99
Battery Type	AA Battery Type BP5 (3xAA)
Power Supply Voltage	Battery Powered Power Supply Voltage BP5 (3xAA)
Country of Origin	China
Shipping Height	10.38 IN
Shipping Length	15.25 IN
Shipping Width	8.00 IN
