PLS 180G KIT Cross Line Green Kit

0 reviews | Catalog: 5009509 | UPC: 095969876490 | Model: PLS 180G KIT

Compare

CROSS LINE GREEN LASER KIT

Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
Green beam laser
Horizontal fan angle 180 °
Vertical fan angle 130°
Durable pendulum lock
IP54 rating to limit dust and water entry for years of operation on the job site
Quick layout and installation projects

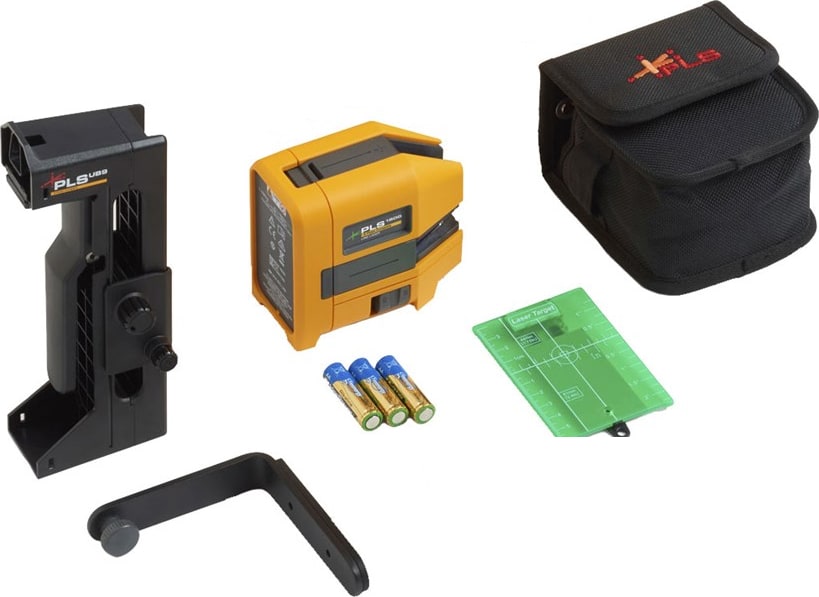

Includes PLS 180G laser level, PLS canvas pouch, and PLS BP5 alkaline battery pack, PLS UB9 universal ceiling and wall bracket, PLS MLB magnetic L-bracket and PLS GRT4 Green reflective target

View Product Details

List Price: $469.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cases

for the PLS 180G KIT

PLS C18 LASER LEVEL TOOL BOX

Catalog: 4985124

(0)

In Stock!

Add to Cart

PLS 180G KIT
`Cross Line Laser`

Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
Green beam laser
Horizontal fan angle 180 °
Vertical fan angle 130°
Durable pendulum lock
IP54 rating to limit dust and water entry for years of operation on the job site
Quick layout and installation projects

This self-leveling cross line laser level in both red and green is designed for multiple applications including framing, acoustic ceiling installation, tile installation, and other residential and commercial construction tasks.

Cross Line Laser Controls

Laser LED: Shows green when at least one laser is on.
Lock LED: Shows green when the laser lock is enabled.
Battery LED: Shows red when the batteries need to be replaced.
Vertical laser button: Turns on or off the vertical laser.
Horizontal laser button: Turns on or off the horizontal laser.
Laser lock switch: Slides to lock or unlock the lasers.
Laser unlock position: The self-leveling feature, keeps the lasers visible when the Product tilts ≤4 ° in any direction. When the Product tilts >4 ° in any direction, the lasers do not show. The Laser indicator LED stays green to indicate that when you return the Product to an upright position, the lasers show again.
Laser lock position: Keeps the lasers visible even when you tilt the Product >4 °. The lasers blink twice every 5 seconds to indicate the self-leveling feature is disabled. Use to align items diagonally such as a stair rail.

PLS 180G Specifications
Accuracy	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )
Self-leveling range	4°
Power supply	BP5 (3xAA)
Horizontal fan angle	≥ 180°
Vertical fan angle	≥ 130°
Operating time	+ 30 hours continuous (red only)
Dimensions	4.6 in x 2.5 in x 4.1 in (116 mm x 64 mm x 104 mm)
Weight	1.3 lbs (0.6 kg)
Drop test	3 ft (1 m)
Water and dust protection	IP54
Warranty	Three year best-in-class warranty
Laser Color	Green

Tech Specs

Distance Meter/Laser Distance Meter Template
Accuracy	≤ 1/8 in at 30 ft ( ≤ 3 mm @ 10 m )
Test Equipment General Attributes
Warranty	3 YEARS
IP Rating	IP54
Product Weight	1.3 LBS
Product Height	4.1 IN
Product Length	4.6 IN
Product Width	2.5 IN
HTS/Schedule B Number	9031499000
ECCN Number	EAR99
Battery Type	AA Battery Type BP5 (3xAA)
Power Supply Voltage	Battery Powered Power Supply Voltage BP5 (3xAA)
Country of Origin	China
Shipping Height	10.38 IN
Shipping Length	15.25 IN
Shipping Width	8.00 IN
