PLS 180 Green System - Vertical and Horizontal Continuous Green Line Laser System

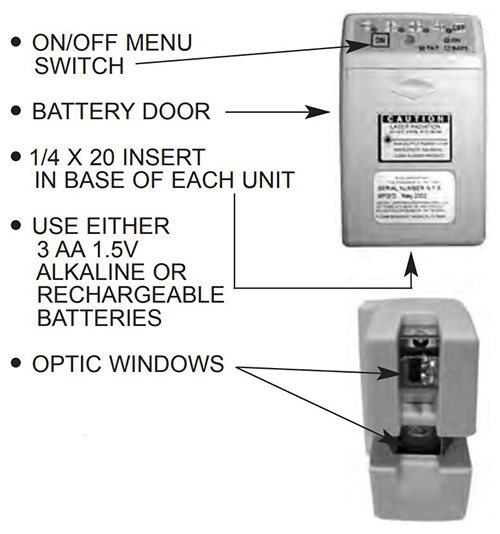

The PLS 180 is a vertical and horizontal continuous green line laser with L-bracket and SLD laser detector.
Check Level Lines
Choose two interior walls approximately 15'-0" apart (see Fig. 1).You can use 2 x 4s for targets.
Turn on the PLS 180 to setting #1 (level). With the PLS 180 six inches away from and facing target #1, carefully mark the center of the line. Label this mark A1. Swivel the laser 180° and mark the center of the line on target #2. Label this mark B1.
Move the PLS 180 six inches away from and facing target #2. Carefully mark the center of the line. Label this mark B2. Swivel the laser 180° and mark the center of the line on target #1. Label this mark A2.
You now have two centers of elevation at each target. Carefully measure the distance between centers of each set of marks. If there is a difference, subtract one measurement from the other. This calibration method magnifies any error by a factor of two. Therefore divide any difference by two to find the true error. Your PLS 180 should have an error of no greater than 1/8in. within 30ft.
Check Plumb
Choose a door jamb with 8'-0" clear on each side of the door. Turn on your PLS 180 laser to setting #2 (plumb). With your laser at point A, make two marks on the floor: the first at 8'-0" from point A centered on door header above (mark this point B), the second 16'-0" from point A (mark this point C). Without moving the laser, make a third mark on the door header (mark this point D).
Move the laser to point C, exactly align the beam with point B, and notice where the beam falls at point D. If it is within a "light" 1/16" of point D, the laser is in calibration.
