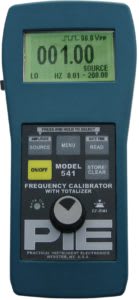

| General Specifications: (Unless otherwise indicated all specifications are rated from a nominal 23 °C, 70 % RH for 1 year from calibration) |
| Operating Temperature Range |
-25 to 60 °C (-5 to 140 °F) |
| Storage Temperature Range |
-30 to 60 °C (-22 to 140 °F) |
| Relative Humidity Range |
10 % 10 % |
| Size |
7.00 X 3.30 X 2.21 inches (177.8 x 83.8 x 56.1mm) |
| Weight |
12.0 oz (340 grams) |
| Battery |
9V Alkaline |
| Miscellaneous |
Low battery indication with nominal 1 hour of operation left
Over-voltage protection to 120 Vrms (rated for 30 seconds) or 240 Vrms (rated for 15 seconds)
High contrast graphic liquid crystal display with 0.45 (11.4 mm) high digits |
| Common Specifications for all current modes: |
| Frequency Ranges |
1CPH to 20.000Khz |
| Accuracy |
± 0.005% of range |
| Temperature effect |
< < 10ppm/°C of range |
| Frequency Ranges Specifications: |
| 1 |
1 CPH< CPH Range < 20000 CPH |
| 2 |
0.1 CPM (0.0167Hz)< CPM Range < 2000.0 CPM (33.33Hz) |
| 3 |
0.01Hz < Hz < 200.00Hz |
| 4 |
0.1Hz < Hz Range < 2000.0Hz |
| 5 |
0.001KHz < KHz Range < 20.000KHz |
| 6 |
Totalize inputs/outputs from 1 to 99999 counts in 0.1 minutes to 100.0 minutes |
| Read Inputs Specifications: |
| Read |
x1 attenuation range: 0.1Vpk to 12Vpk
x10 attenuation range: 1Vpk to 120V peak - Limit of attenuation is 120Vpk |
| Input Impedance |
> 1 Meg ω + 100pF |
| Adjustable Signal Attenuation |
Adjustable trigger level with X1 and x10 attenuation ranges |
| Miscellaneous |
Battery life > 24 hour typical |
| Fuse-less protection |
240Vrms |
| Waveforms Source Specifications: |
| Output current |
> 6mApp at 12Vpp output, 20KHz |
| Output Impedance |
< 25Ω |
| Square Wave: |
Zero Crossing: Zero Based Selectable
Rise/Fall Time: < 0.0001% of output Vpk per Second
Frequency Jitter: < 0.5LSB of frequency range
Duty Cycle: 50% ± 2%
Sine Wave:
Offset and Zero Crossing Symmetry: <± 10% of Vpk Output amplitude setting
Amplitude Adjustment: 100mV < Nominal Output < 12Vpp ± 10% of setting |
