Manometer (0 – 200 kPa) with Absolute Pressure

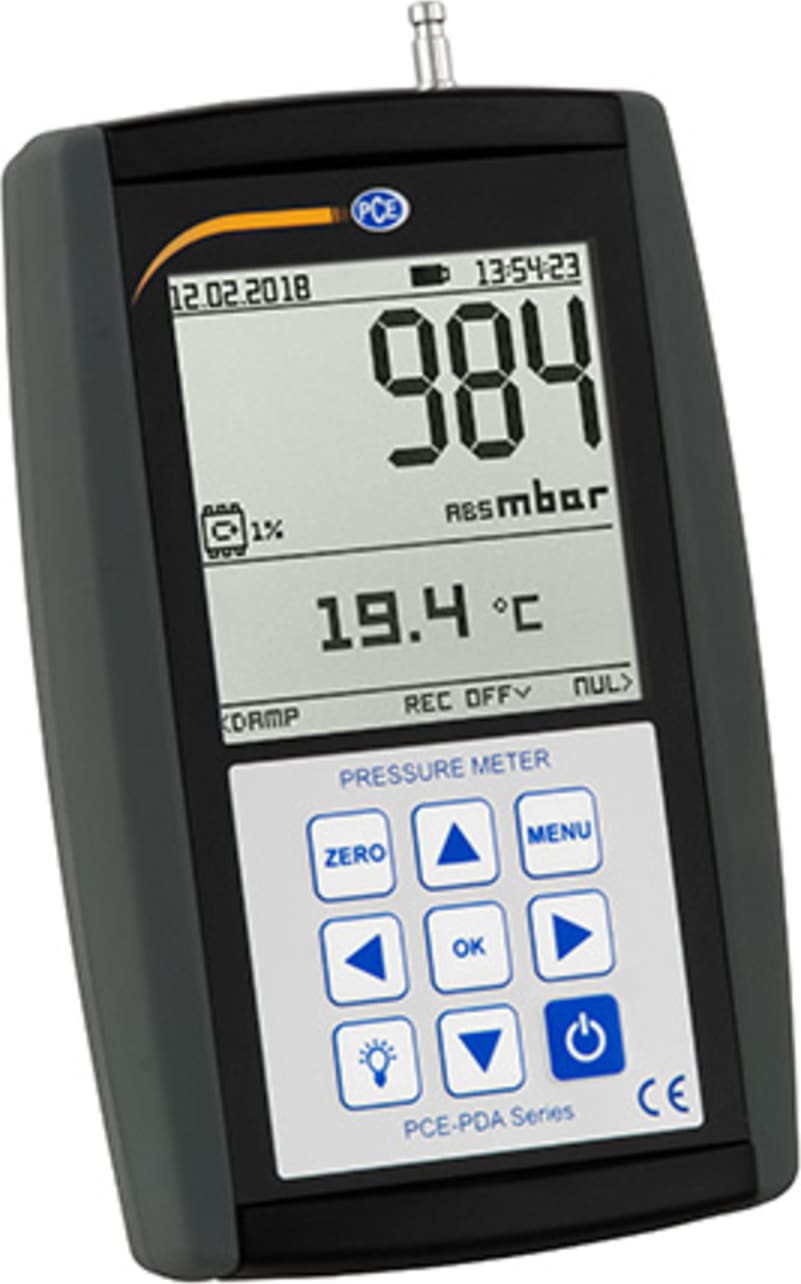

PCE-PDA A100L Manometer
The manometer PCE-PDA A100L is suitable for the measurement of atmospheric pressure. This manometer records the pressure from absolute zero to 200 kPa. The manometer can be used for many mobile applications in industry and crafts. This professional manometer can either be operated with batteries or rechargeable batteries. In battery mode, the USB interface allows the charging of the inserted batteries. The PCE-PDA A100L manometer is equipped with a large LC display. A display illumination makes it easier to read the measured values even under poor conditions. The pressure is measured by an internally installed sensor.
A plug-in nipple is available from the pressure connection. At these, the pressure of air and liquids can be passed through quick couplings to the sensor. The manometer has a precision mode that allows the resolution of the measured value to be increased tenfold. In addition to the continuous pressure measurement, the display shows the maximum and minimum measured values directly on display. At the touch of a button, this storage can be reset. Furthermore, the manometer performs a temperature measurement. To store the measured values for further documentation purposes, the manometer has a data logger. Here, the user can specify a storage interval and a recording period in which the pressure-measured values are stored.
