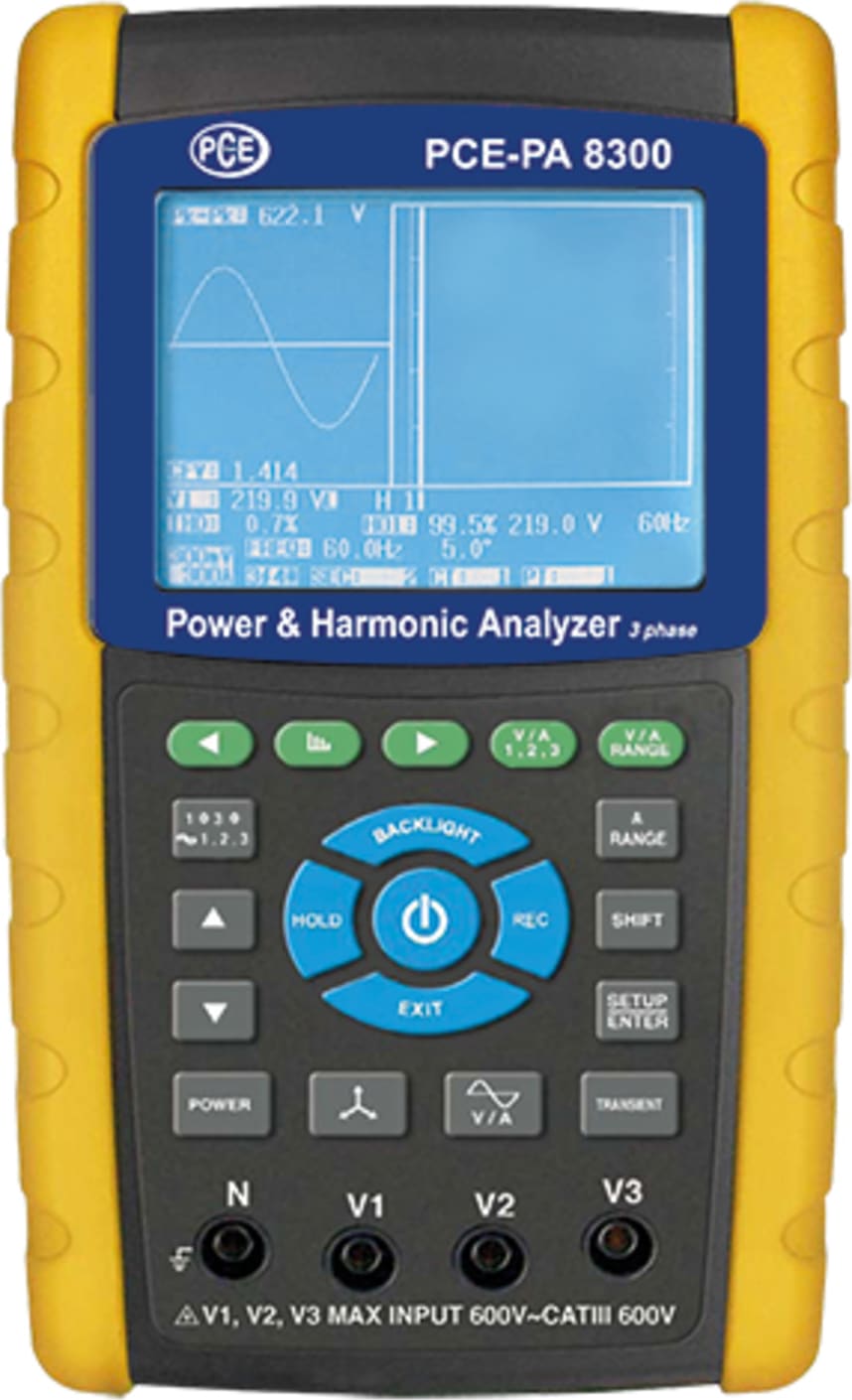

PCE Instruments PCE-PA 8300-1 - Power Meter with 3 Current Clamps (600 V AC / 1200 A AC)

Name: PCE Instruments PCE-PA 8300-1 - Power Meter with 3 Current Clamps (600 V AC / 1200 A AC)
Brand: PCE Instruments
SKU: PCEPCE-PA 8300-1
Price: 2947.00 USD
Availability: InStock

0 reviews | Model: PCE Instruments PCE-PA 8300-1

Images (9) | Videos (1)

Compare

Electrical Power Meter, 10 V to 600 V AC

Voltage measurement range: 10 V - 600 V AC
Current measurement range; 20 A - 1200 A AC (Set 1)
Performance measurement range of 0 kW - 9.999 MW (VA/VAR)
Simultaneous display of harmonics and waveform
Graphic Phasor diagram
Captures transients including dip, swell, and outage
Compatibility with various manufacturers' power clamps
Adjustable back-up interval, allowing for long-term data collection
Auto-setting of measurement range (AC V)
Power efficiency, delay angle, and frequency measurement

View Product Details

Your Price: $2,947.00

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	PCE Instruments PCE-PA 8300-1 Electrical Power Meter, 10 V to 600 V AC	PCE Instruments PCE-PA 8300-2 Electrical Power Meter, 10 V to 600 V AC
Price
In Stock
Type (Power Quality)	3 Phase, Single Phase	3 Phase, Single Phase
Maximum Current AC	1200 A	3000 A
True Power / Work ( W)	Yes	Yes
Compare	Add to compare	Add to compare

Recommended for you

PCE Instruments PCE-PA 8300-1

Voltage measurement range: 10 V - 600 V AC
Current measurement range; 20 A - 1200 A AC (Set 1)
Performance measurement range of 0 kW - 9.999 MW (VA/VAR)
Simultaneous display of harmonics and waveform
Graphic Phasor diagram

Power Meter with 3 Current Clamps (600 V AC / 1200 A AC)

PCE-PA 8300 Power Meter

3-phase / 3 current clamps / LCD graphic display / SD card memory

The PCE-PA 8300 is a Power Meter that features a durable enclosure, SD card memory, and an LCD graphic display, as well as apparent, effective, and reactive power measurement. The easy-to-use PCE-PA 8300 Power Meter is the ideal tool for performing power and harmonics analysis as well as for measuring network capacity.

Set 1: Includes 3 current clamps for measurements up to 1200 A AC

Tech Specs

Power Measurement/Power Quality Analyzer Template
Type (Power Quality)	3 Phase, Single Phase
Maximum Current AC	1200 A
True Power / Work ( W)	Yes
Apparent Power (VA)	Yes
Reactive Power (VAR)	Yes
Display (Power Quality)	Graphical
Graphical Display Type	LCD
Transient Capture	Yes
Displays Waveform	Yes
Energy	Yes
Phasor Diagrams	Yes
Power Factor (Power Quality)	Yes
Harmonics	Yes
Maximum Harmonics Range	50
Current Clamps Included	Yes
Crest Factor	Yes
CAT Rating	III
CAT Voltage Rating (V)	600V
Test Equipment General Attributes
Warranty	2 YEARS
Interfaces I/O	RS-232, USB
Storage	SD Card
Product Weight	1010 GRAMS (2.23 LBS)
Product Height	8.86 IN
Product Length	4.92 IN
Product Width	2.52 IN
Data Logging	Yes
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
