Motorized Test Stand (5000 N / 500 kg)
Motorized material test stand to 5000 N, adaptable for all PCE Force Gauges series with internal and external load cell, large stroke, variable feed speed

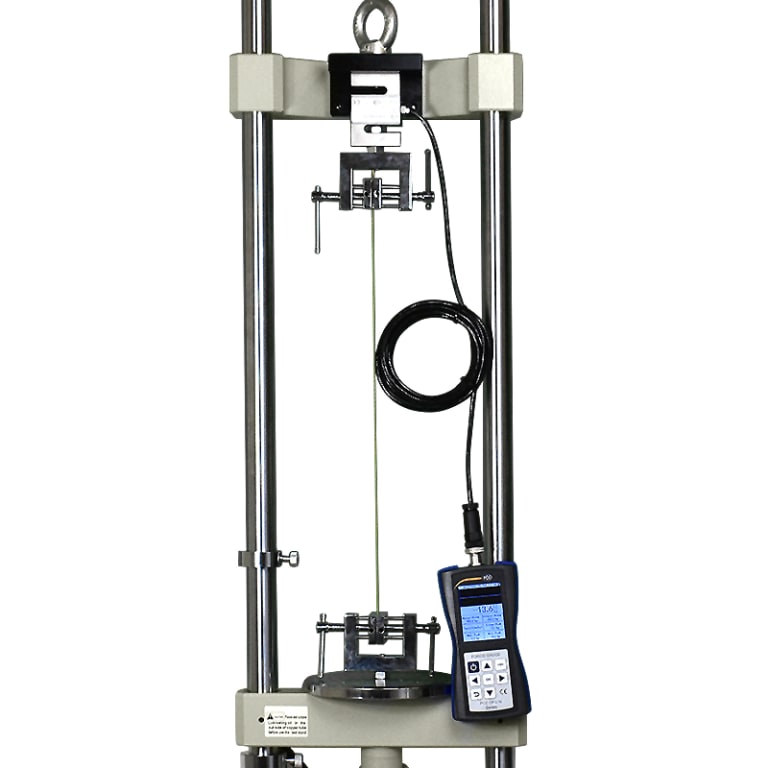

Our motorized material test stands PCE-MTS500 NL can be coupled and operated in different variations with our PCE series force gauges. With the motorized material test stand all your tension and compression load applications are accurate and can be performed repeatedly. The use of the motorized material test stand offers the operator a high quality machine for testing materials and samples. The maximum force range of the motorized test material stand is up to 500 kg or 1100 lbs. Use of the motorized material test stand requires an AC power connection. The feed rate is adjustable between 10 mm/min and 230 mm/min on the front panel. Accurate and precise measurements are always guaranteed with the motorized material test stand. The force-measuring stand is compatible with the following product series: PCE-FB, PCE-FM, PCE-PTR, PCE-DFG, and PCE-LFG Series. Whenever the human body reaches its limits with respect to force application, the motorized material test stand comes into play. The user of the test stand is obliged to prepare a hazard analysis of possible safety concerns and corrective actions.
