• Test stand only. Force gauge and adapter plate PCE-UNI sold separately.
• Force measuring range: Max 500 N / 50 kg
• Traverse: Max 315 mm (12.4 in)
• Compatible with all PCE-series force gauges
• Automatic or manual (push-button) operation

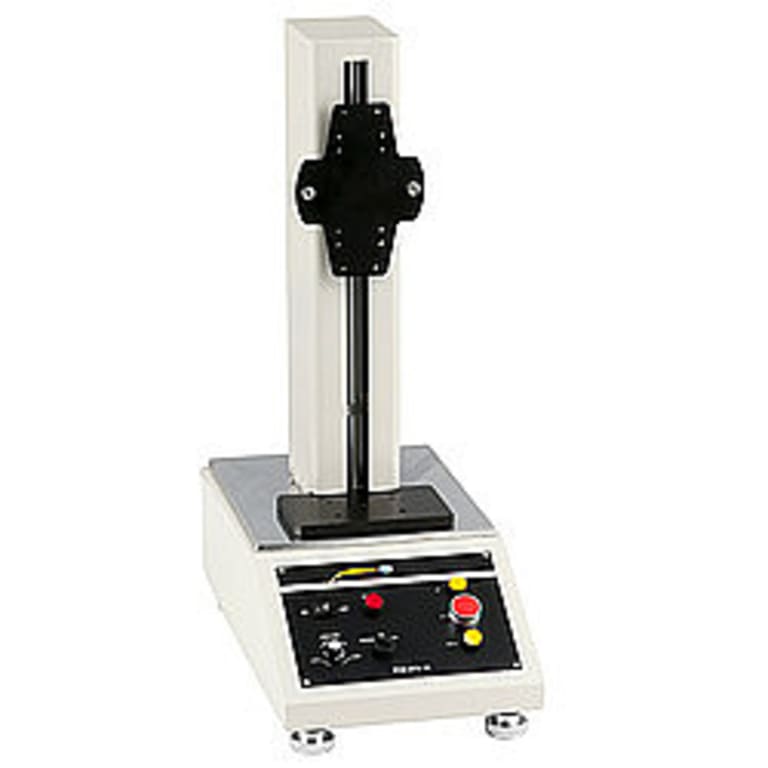

Motorized test stand for use with PCE-series force gauges. Measures compressive and tensile forces up to 500 N / 50 kg

PCE-MTS50 is a motorized universal testing machine (UTM) or material test stand for use with all PCE-series force gauges. (Note: An adapter plate may be required for mounting the force gauge to the test stand - see accessories for details.) The motorized material test stand offers enhanced control and stability during force testing. It also helps to ensure the accuracy and repeatability of vertical tension and compression force test results.

Use of the motorized material test stand requires an AC power connection. The feed rate is adjustable between 50 - 500 mm / min using the controls on the front panel. The traverse/distance also can be adjusted.
