Loop Calibrator with Data Logger

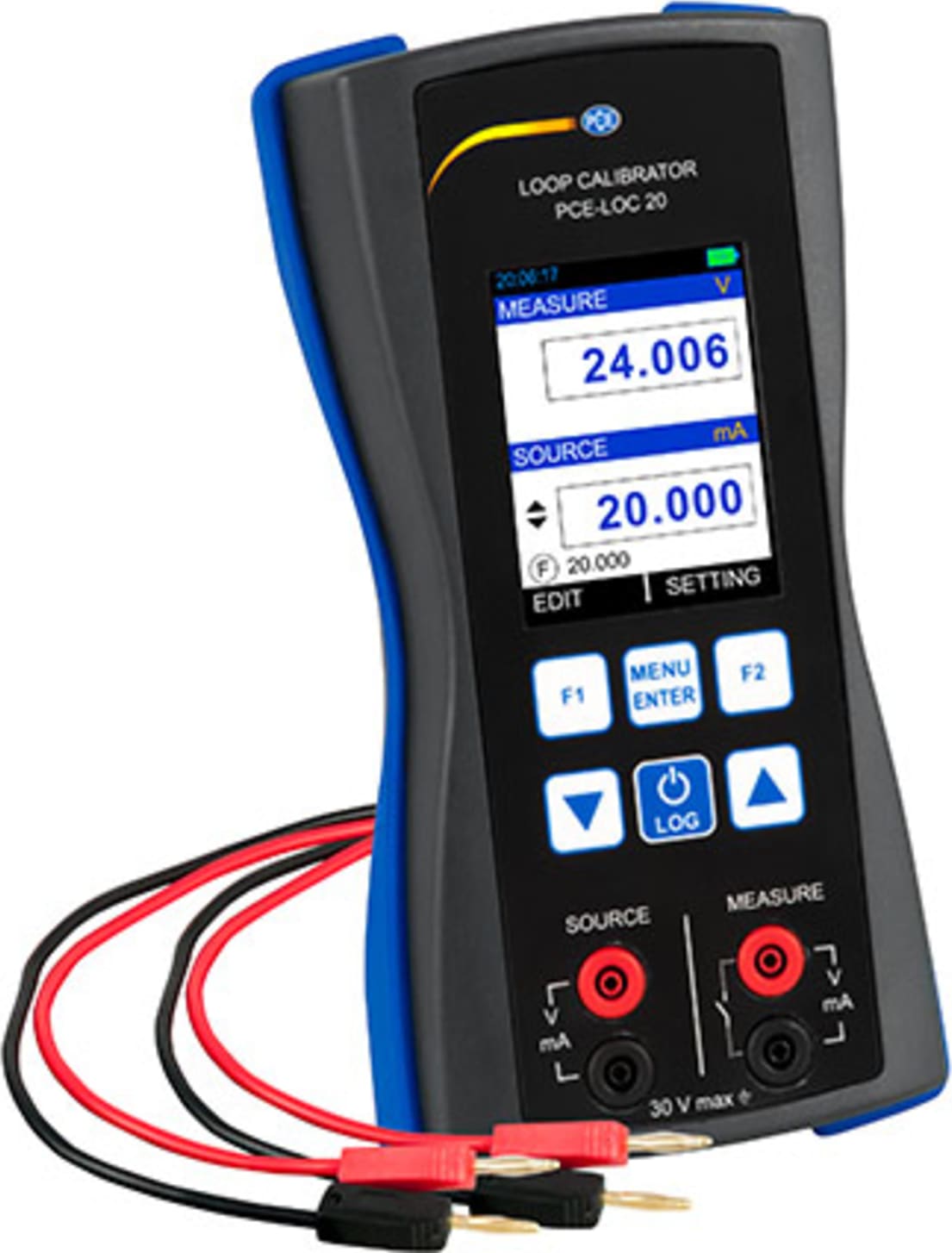

PCE-LOC 20 Calibrator
For Simulation and Measurement of Current and Voltage / Li-Ion battery / Continuity tester / Ramp function / Data logger
The calibrator PCE-LOC 20 can be used to directly simulate process currents in the current loop, mV, and mA. This allows the calibrator to be used to set process displays, data loggers, paperless recorders, etc. Thanks to the galvanically isolated connections, this calibrator can simultaneously serve as a source and as a measuring device. Here, it does not matter whether currents are measured and voltages are simulated since the functions work completely independently of each other.
The calibrator PCE-LOC 20 has a high accuracy of 0.02% of the measured value in all operating modes. The calibrator is powered by a rechargeable battery that can be charged via a USB power adapter. The memory can also be read out by the calibrator via this interface. For ease of operation, the LCD contributes from the calibrator.
In addition to the direct specification of the simulated parameters, the calibrator has a ramp mode that allows the parameters to be changed incrementally and automatically over a defined period of time. The calibrator PCE-LOC 20 can also specify the scaled process value. This means, for example, that a temperature in °C / °F is specified directly and the calibrator simulates the analog process value in mA.
