PCE Instruments PCE-IT414 - Insulation Meter (1000 - 10000 V DC)

Name: PCE Instruments PCE-IT414 - Insulation Meter (1000 - 10000 V DC)
Brand: PCE Instruments
SKU: PCEPCE-IT414
Price: 1450.55 USD
Availability: InStock

0 reviews | Model: PCE Instruments PCE-IT414

Compare

Insulation Meter, Test tension up to 10,000V

DC test tension range: 1000 - 10,000 V
Measurement range: 60 Giga-ohms / 1000 V - 600 Giga-ohms / 10,000 V
Developed specifically for technical service and for difficult measurement conditions
2-year warranty
6-digit LCD display
Measurements according to VDE 0413 part 1
Insulation resistance between electrical conduction and the enclosure: 2000 Mega ohms / 2000V
Static tension between enclosure and circuit: 700V AC for a maximum of 1 minute
AC warning circuit: For tension > 450V AC
Safety standards: IEC-1010-1; CAT III, IEC- 1010- 1, EN 61010- 1; - EMV EN 50081- 1, EN 50082- 1

View Product Details

Your Price: $1,450.55

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	PCE Instruments PCE-IT414 Insulation Meter, Test tension up to 10,000V	PCE Instruments PCE-IT413 Insulation Meter, Test tension up to 5,000V
Price
In Stock
IR Test Voltage	1,000 V, 10,000 V, 2,500 V, 5,000 V	1,000 V, 2,500 V, 5,000 V, 500 V
Maximum Insulation Resistance	600 G Ohms	300 G Ohms
Type	Battery	Battery
Compare	Add to compare	Add to compare

Recommended for you

PCE Instruments PCE-IT414

DC test tension range: 1000 - 10,000 V
Measurement range: 60 Giga-ohms / 1000 V - 600 Giga-ohms / 10,000 V
Developed specifically for technical service and for difficult measurement conditions
2-year warranty
6-digit LCD display

Insulation Meter (1000 - 10000 V DC)

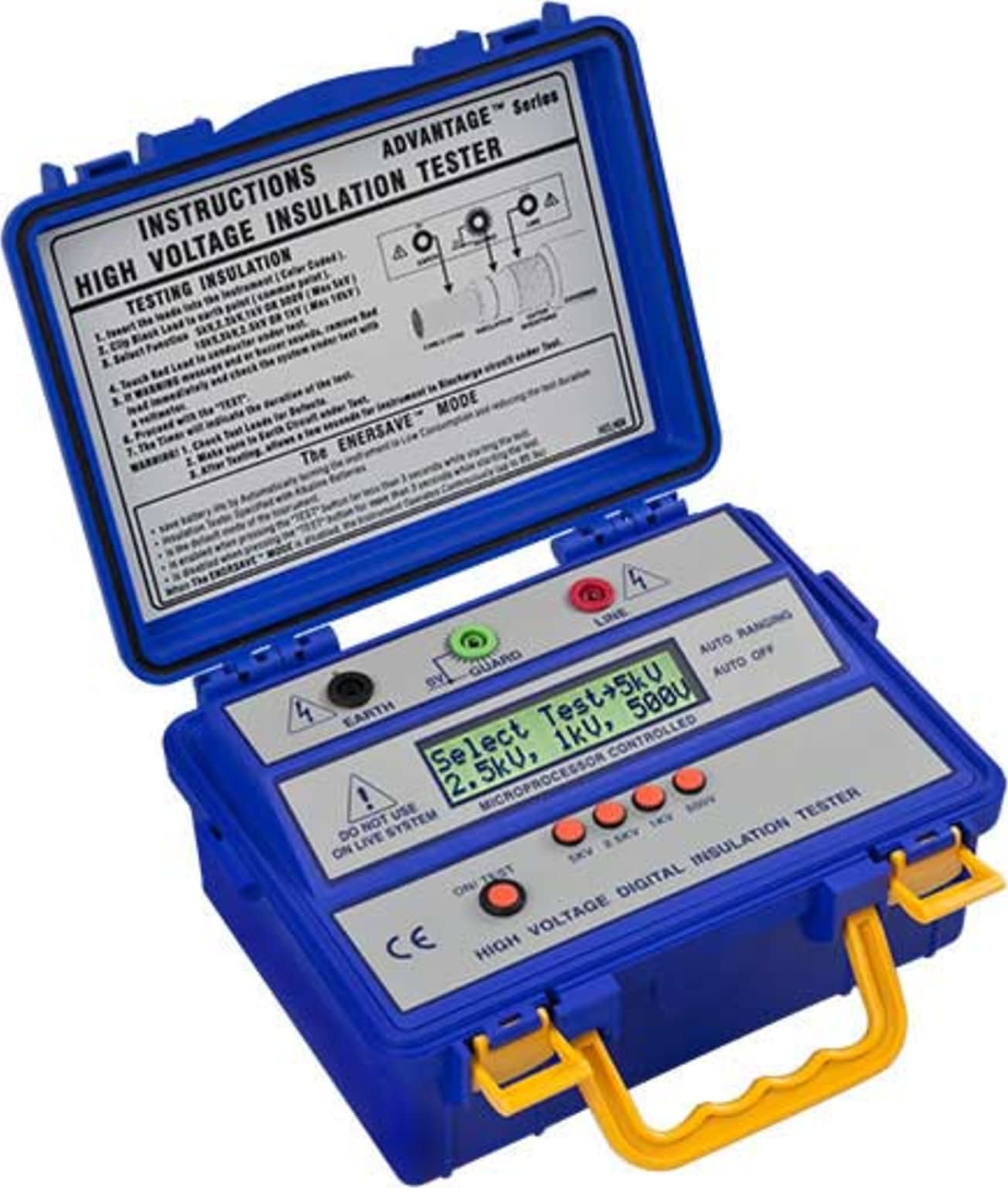

The PCE-IT414 Insulation Meter belongs to a series of highly accurate resistance devices that have a 6-digit display. These Insulation Meters have been developed specifically for technical service and for difficult measurement conditions. One of the advantages is the built-in protection to avoid errors originating from loss of current. The Insulation Meter contains a microprocessor and both optical and visual alarms. Factory calibration ensures the most accurate measurements with this series of Insulation Meters.

Tech Specs

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V, 10,000 V, 2,500 V, 5,000 V
Maximum Insulation Resistance	600 G Ohms
Type	Battery
Minimum Insulation Resistance	60 G Ohms
Display (Megohmmeter)	Digital
Power Supply	Battery
CAT Rating	III
Test Equipment General Attributes
Warranty	2 YEARS
Safety Approval	CE
Product Weight	3.3 LBS
Product Height	9.8 IN
Product Length	4.3 IN
Product Width	7.5 IN
Calibration Included	Factory Calibration
Battery Type	AAA
Power Supply Voltage	Battery Powered
