• DC range: 600 mV, 6V, 60V, 600V, 1000V
• AC range: 6V, 60V, 600V, 750V
• AC Current range: 60 mA, 600 mA, 6 A, 10 A
• Resistance range: 600 Ohms, 6 k Ohms, 60 k Ohms, 600 k Ohms, 6 M Ohms, 60 M Ohms
• Capacity range: 40 nF, 400 nF, 4 uF, 40 uF, 200 uF

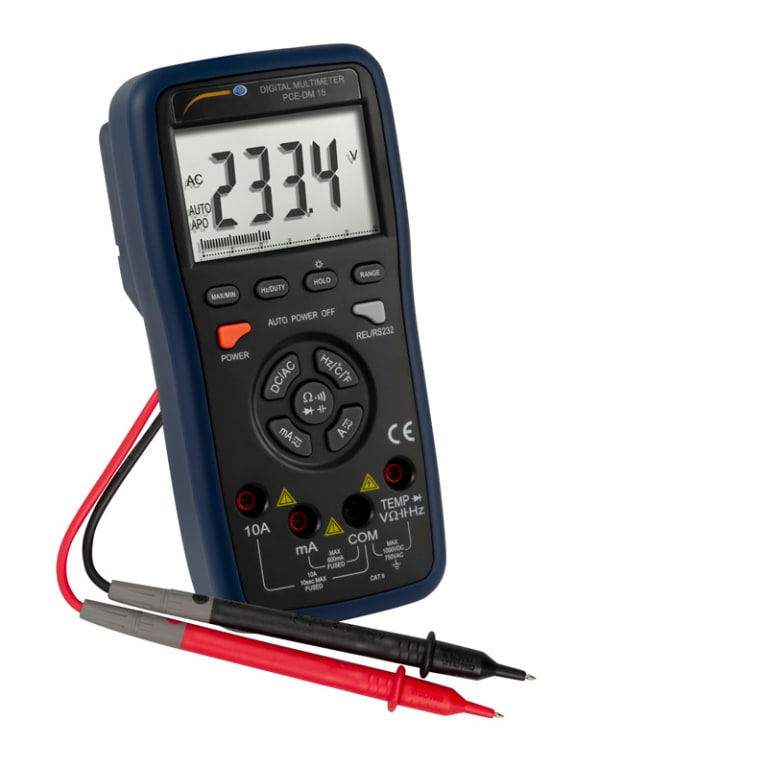

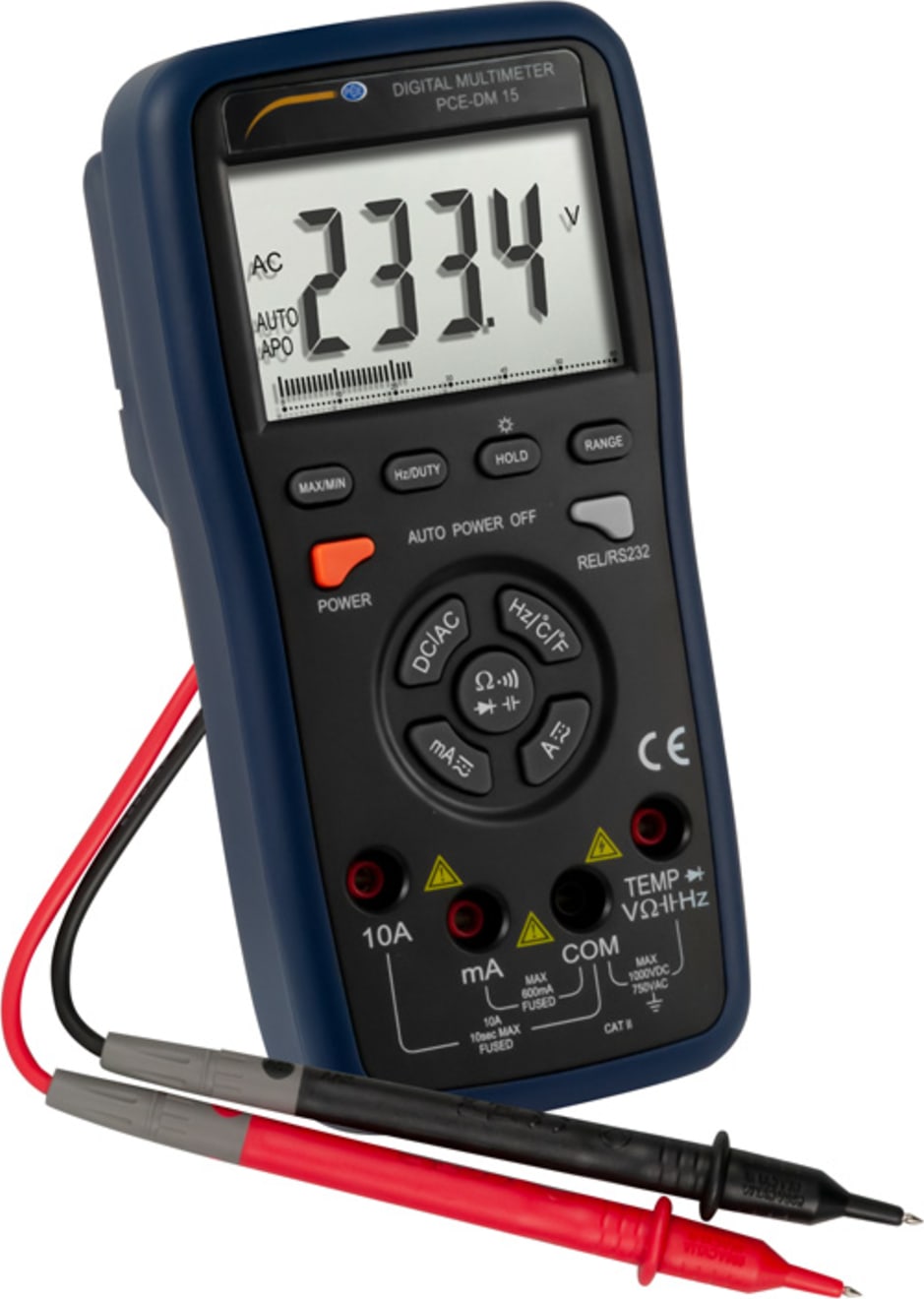

Voltmeter PCE-DM 15

Voltmeter with software / Voltage measurement / 61-digit bar chart / Large LCD display / Automatic shutdown / Mini-USB data interface / Current measurement / Temperature measurement via thermocouples type-K

The Voltmeter is a multimeter with extensive functions. In addition to current and voltage resistance measurements, this multimeter can also be used to measure continuity and temperature with thermocouples. A thermocouple is already included with the multimeter, but alternative type K thermocouples can also be connected to the multimeter.

Another special feature of the multimeter is the mini USB interface. This allows the multimeter to be connected to any PC. LIVE data transmission from the multimeter can be carried out using the software supplied. Another difference between this and other multimeters is that this multimeter can be operated entirely via the keyboard instead of a measuring selector switch. As a result, this multimeter has fewer wear elements than conventional multimeters.
