| Optical resolution |
382 x 288 pixels |
| Detector |
FPA, uncooled (17 µm x 17 µm pitch) |
| Spectral range |
8 - 14 µm |
| Temperature ranges |
-20 ... 100 °C (-4 ... 212 °F), 0 ... 250 °C (32 ... 482 °F), (20 [68])150 ... 900 °C1) (302 ... 1652 °F)1) |
| Frame rate |
80 / 27 Hz |

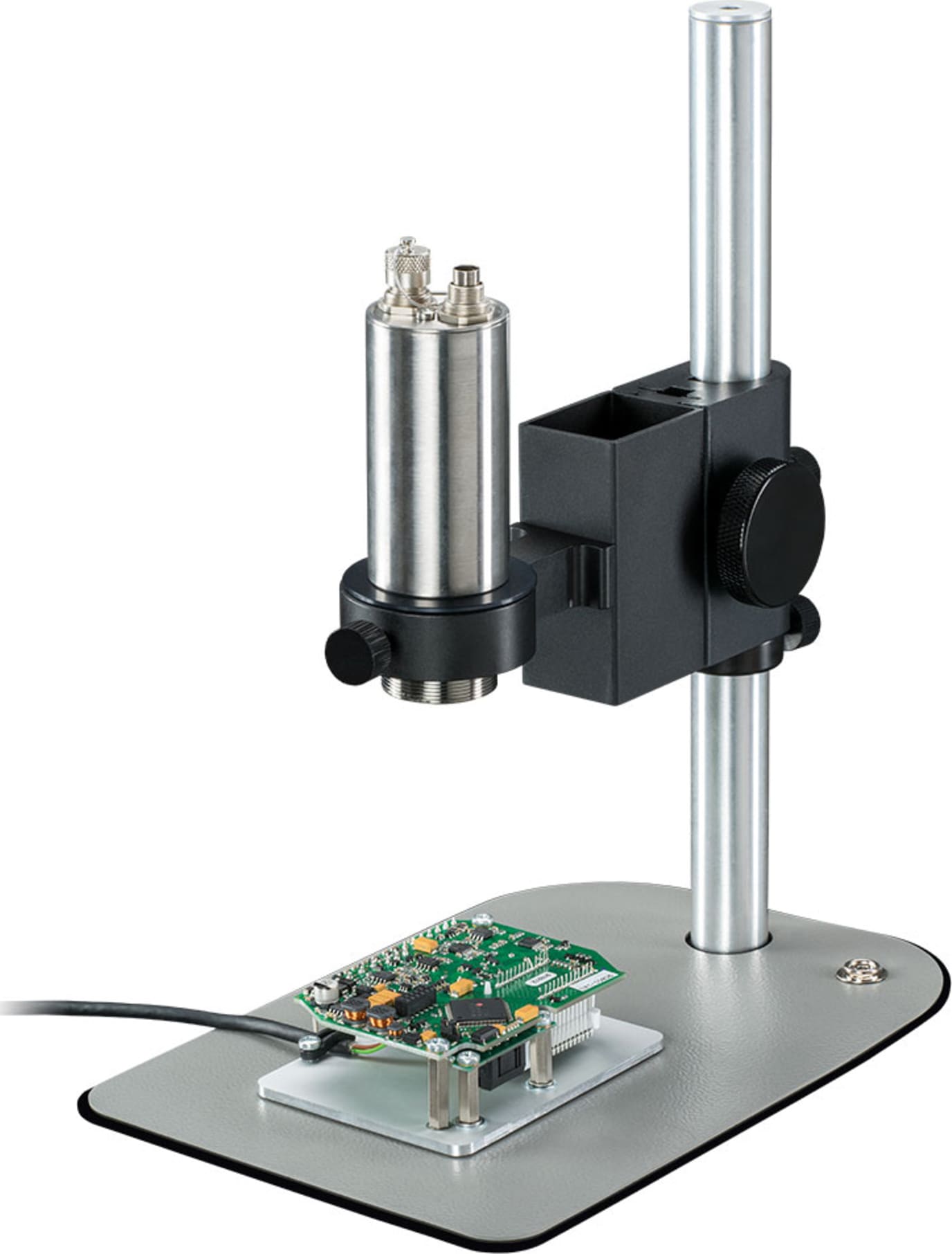

| Microscope optics (FOV) |
18° x 14° (f = 20), smallest measuring spot (MFOV): 240 µm |
| Focus |
Manual motor focus |
| Optical resolution (D:S) |
390:1 (18° optics) |
| Thermal sensitivity (NETD) |
80 mK |
| Accuracy |
±2 °C or ±2 % (±4 °F or ±2 %), whichever is greater |
| PC interface |
USB 2.0 / optional USB to GigE (PoE) conversion |
| Process interface (PIF), standard |
0-10 V input, digital input (max. 24 V), 0-10 V output |
| Process interface (PIF), industrial |
2 x 0-10 V inputs, digital input (max. 24 V), 3 x 0-10 V outputs, 3 x relay (0-30 V / 400 mA), faile-safe relay |
| Cable length (USB) |
1 m (3.3 ft) (standard), 3 m (9.8 ft), 5 m (16.4 ft), 10 m (32.8 ft), 20 m (65.6 ft) |
| Ambient temperature |
0 °C to 50 °C (32 °F to 122 °F) |
| Enclosure (size / rating) |
Ø 36 mm x 100 mm (Ø 1.42 in x 3.9 in) (M30x1 thread) / IP 67 (NEMA 4) |
| Weight (without mounting bracket) |
216 - 220 g, (7.6 - 7.7 oz) depending on lens |
| Shock 2) / Vibration 2) |
IEC 60068-2-27 (25 G and 50 G); IEC 60068-2-6 (sinus shaped); IEC 60068-2-64 (broadband noise) |
| Power supply |
USB |
| Scope of supply |
- Process imager Xi
- USB cable (1 m [3.3 ft])
- Standard PIF cable (1 m) incl. terminal block
- Mounting bracket with nut
- Software package optris PIX Connect
|
1) Accuracy statement effective from 150 °C (302 °F)
2) For more details see operator‘s manual |
