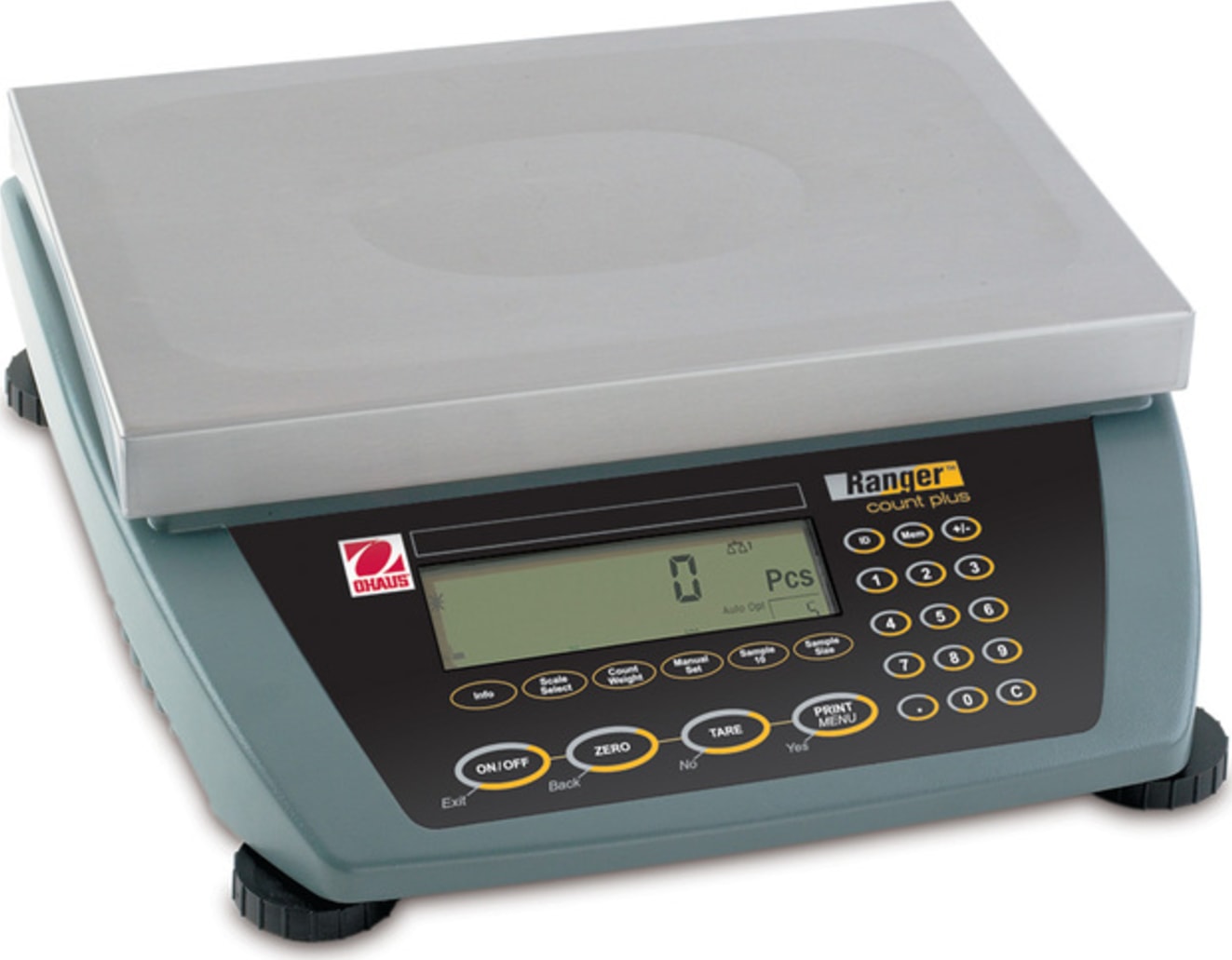

Ohaus RD30LSW Ranger Compact Bench Scales

Name: Ohaus RD30LSW Ranger Compact Bench Scales
Brand: Ohaus
SKU: OhausRD30LSW
Price: 1399.75 USD
Availability: InStock

0 reviews | Model: Ohaus RD30LSW

Compare

66.1lb x 0.002lb / 30kg x 0.001kg default resolution 60 Lb x 0.01 Lb / 30 Kg x 0.005 Kg Certified Resolution Platform Size 13.8 x 9.4 in / 35 x 24 Cm

Capacity: 30000 g / 30 kg
Readability: 1 g / 0.001 kg
High performance strain gauge loadcells, encased in a tough painted cast aluminum housing
Wide range of platforms and capacities from 6lb to 120lb
Weigh in lb, oz, kg, g or metric tonne units
Large, backlit LCD display
Dynamic weighing software included
1:30,000 default resolution
NTEP 1:6,000 legal for trade resolution (non-washdown versions only)
RS232 interface included
Built-in AC with hardwired plug, factory-installed NiMH battery optional
NEMA 4/IP65 washdown (SW) models available

View Product Details

List Price: $1,843.00

In Stock:

View Payment Options

Recommended for you

The OHAUS Ranger line of compact bench scales has been upgraded and expanded with new software and models for even better performance in demanding industrial applications. The Ranger line now has an
enhanced microprocessor and updated filtering software for improved performance in the lab, on the production line, or in the field.

Every Ranger features a large, backlit LCD display with fast display of weighing results within 2 seconds, as well as an RS232 port for quick connectivity to printers and systems. For use in applications requiring additional filtering, the Ranger series now includes dynamic weighing software allowing weigh determination where vibration is an issue.

For applications where water resistance is required, the Ranger series now offers NEMA4/IP65 models with washable aluminum housings, with the same software and features as the non-washdown versions of the Ranger series.

Every Ranger is designed with OHAUS’ easy-to-use software interface, making operation intuitive with a consistent feel across all four Ranger lines: Ranger, Ranger High Resolution, Ranger Count and Ranger Count Plus. No matter the industrial need, there is a Ranger for that application!

Ranger Series Compact Bench Scales Specification
Models	RD3RS	RD6RS	RD12LS	RD30LS	RD60LS
Scale with NiMH Internal Battery	RD3RS/1	RD6RS/1	RD12LS/1	RD30LS/1	RD60LS/1

Default Capacity x Readability	6.6138 x 0.0002 lb 105.822 x 0.002 oz 3 x 0.0001 kg 3000 x 0.1 g 0.003 x 0.000001 t	13.2275 x 0.0005 lb 211.640 x 0.005 oz 6 x 0.0002 kg 6,000 x 0.2 g 0.006 x 0.000001 t	26.456 x 0.001 lb 423.30 x 0.02 oz 12 x 0.0005 kg 12,000 x 0.5 g 0.012 x 0.000001 t	66.138 x 0.002 lb 1,058.20 x 0.02 oz 30 x 0.001 kg 30,000 x 1 g 0.03 x 0.000001 t	132.275 x 0.005 lb 2116.50 x 0.05 oz 60 x 0.002 kg 60,000 x 2 g 0.06 x 0.000002 t
NTEP Certified Capacity x Readability	6 x 0.001 lb 3 x 0.0005 kg 3,000.0 x 0.5 g	12 x 0.002 lb 6 x 0.001 kg 6,000 x 1 g	24 x 0.005 lb 12 x 0.002 kg 12,000 x 2 g	60 x 0.01 lb 30 x 0.005 kg 30,000 x 5 g	120 x 0.02 lb 60 x 0.01kg 60,000 x 10g

Ranger IP65 Washdown Compact Bench Scales Specification
Models	RD3RSW	RD6RSW	RD12LSW	RD30LSW	RD60LSW
Scale with NiMH Internal Battery	RD3RSW/1	RD6RSW/1	RD12LSW/1	RD30LSW/1	RD60LSW/1

Default Capacity x Readability	6.6138 x 0.0002 lb 105.822 x 0.002 oz 3 x 0.0001 kg 3000 x 0.1 g 0.003 x 0.000001 t	13.2275 x 0.0005 lb 211.640 x 0.005 oz 6 x 0.0002 kg 6,000 x 0.2 g 0.006 x 0.000001 t	26.456 x 0.001 lb 423.30 x 0.02 oz 12 x 0.0005 kg 12,000 x 0.5 g 0.012 x 0.000001 t	66.138 x 0.002 lb 1,058.20 x 0.02 oz 30 x 0.001 kg 30,000 x 1 g 0.03 x 0.000001 t	132.275 x 0.005 lb 2116.50 x 0.05 oz 60 x 0.002 kg 60,000 x 2 g 0.06 x 0.000002 t
Calibrations:	6 x 0.001 lb 3 x 0.0005 kg 3,000.0 x 0.5 g	12 x 0.002 lb 6 x 0.001 kg 6,000 x 1 g	24 x 0.005 lb 12 x 0.002 kg 12,000 x 2 g	60 x 0.01 lb 30 x 0.005 kg 30,000 x 5 g	120 x 0.02 lb 60 x 0.01kg 60,000 x 10g

General Specifications
Models	RD3RS	RD6RS	RD12LS	RD30LS	RD60LS
Scale with NiMH Internal Battery	RD3RS/1	RD6RS/1	RD12LS/1	RD30LS/1	RD60LS/1
Models	RD3RSW	RD6RSW	RD12LSW	RD30LSW	RD60LSW
Scale with NiMH Internal Battery	RD3RSW/1	RD6RSW/1	RD12LSW/1	RD30LSW/1	RD60LSW/1
Platform Size (w x d)	9.5 x 8 in / 24 x 20 cm		13.8 x 9.5 in / 35 x 24 cm
Safe Overload Capacity	150% of capacity
Construction	Stainless steel weighing pan / Painted cast-aluminum housing
Protection	IP43 for non-SW units, NEMA 4/IP65 for SW units
Weighing Units / Modes	lb, oz, g, kg / Weighing, Dynamic Weighing
Display	0.63 inch / 16 mm digit height (backlit LCD)
Keyboard	Six button membrane switch
Stabilization Time	< 2 seconds
Auto Zero Tracking	0.5, 1, 2, 5, 10d, OFF
Power	Internal AC adapter, rechargeable NiHM battery optional
Calibration	External span, 20 - 100%
Operating Temperature	14° F to 104° F / - 10° C to 40° C
Net (Shipping) Weight	12 lb / 5.1 kg (15 lb / 6.6 kg)		20 lb / 8.9 kg (25 lb / 11.1 kg)
Scale Dimensions (W x D x H)	10.5 x 13.2 x 4 in / 26.5 x 33.5 x 10 cm		14.2 x 14.6 x 4.5 in / 36 x 37 x 11.5 cm
Shipping Dimensions (W x D x H)	16.5 x 19 x 10 in / 42 x 48 x 25 cm		20 x 20.5 x 10.5 in / 52 x 53 x 27 cm
