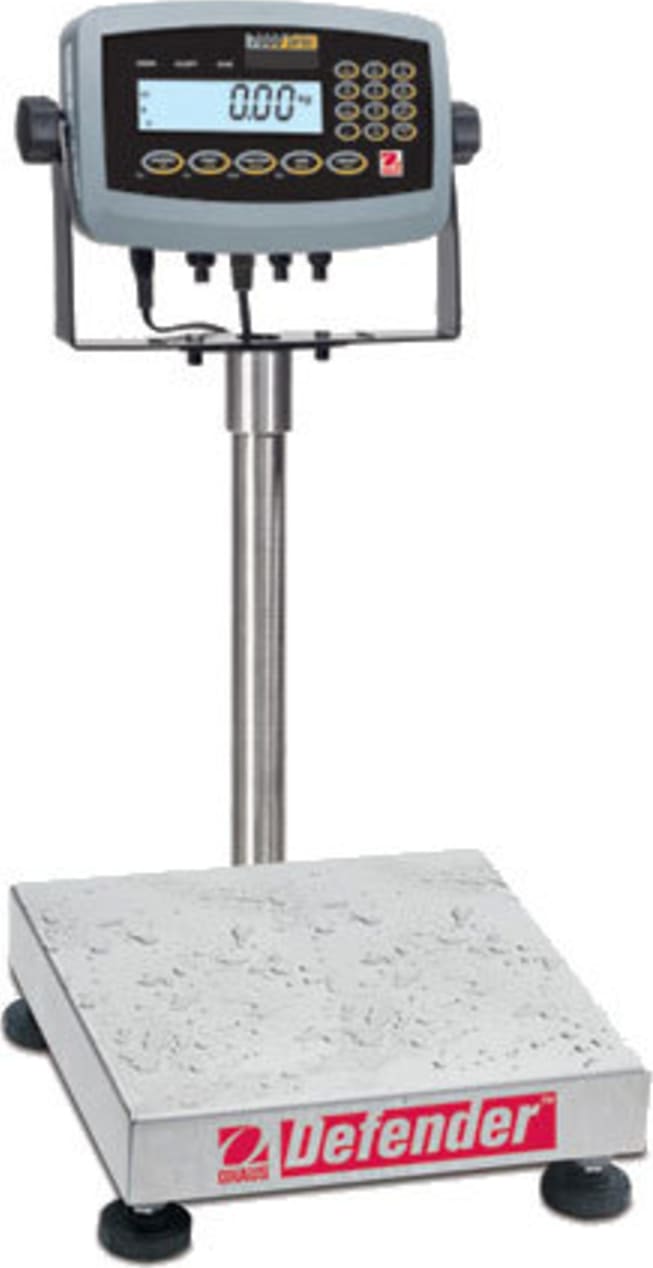

Ohaus D71P25WR3 Discontinued Products

Name: Ohaus D71P25WR3 Discontinued Products
Brand: Ohaus
SKU: OhausD71P25WR3
Price: 925.95 USD
Availability: InStock

0 reviews | Model: Ohaus D71P25WR3

Compare

50lb x 0.005lb (25kg x 0.002kg) default resolution Platform Size 12 x 12 x 3.8 in / 30 x 30 x 10 Cm

Capacity 50 lb x 0.01 lb
Certified/Approved Readability 25 kg x 0.005 kg
3-Color LED Checkweigh Indication
High-Visibility Dual Line LCD Display
Internal Slot for Capacity Label
Reversible Rear Housing
Library Data Storage Function
One-Key, Multiple Mode Selection
Built in RS232 bi-directional interface and built-in external input
Plug-in Load Cell Connector
Durable Base Frame Construction
Four rugged, adjustable feet help prevent slippage on wet or uneven surfaces
Stainless Steel Columns
Universal Switching Power Supply
Included Table/Wall Mount Bracket
Simple Plug-In Battery Installation

View Product Details

List Price: $1,330.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Ohaus D71P25WR3

Ohaus 80251933 Ink Ribbon, CBM910

Catalog: 80251933

(0)

In Stock!

Add to Cart

Ohaus 80500524 Cable, 25 Pin-9 Pin, PC-TxxP

Catalog: 80500524

(0)

In Stock!

Add to Cart

Ohaus 80500525 Cable RS232 IBM 9P Male-to-Female

Catalog: 80500525

(0)

In Stock!

Add to Cart

Ohaus 80251932 Paper Roll, CBM910

Catalog: 80251932

(0)

In Stock!

Add to Cart

Ohaus 80251992 Printer, Thermal, STP-103, US

Catalog: 80251992

(0)

In Stock!

Add to Cart

The OHAUS Defender 7000 Series is a feature-rich line of bench scales, combining an ABS plastic T71P indicator with stainless steel bases and columns. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations.

Standard Features Include:

Stainless steel base with ABS indicator
10,000-12,500d default resolution
1:5,000 certified resolution
Quick display of results using large dual line LCD with high-contrast white backlight
Temporary display of 10x readability in weighing mode using quick key press
Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold, and Accumulation
255 item Library data storage function
Internal power supply with universal line cord or 6 “C” batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input for dual-base counting
Base and indicator connected using quick connect plug
Options include DC relay control kit, AC relay control kit, RS485/422 and 2nd RS232 interfaces, Alibi memory module

The Defender 7000 Offers Multiple Features and Easy Configuration:

To meet different operational needs, the Defender 7000 includes a suite of configurable software:

Counting mode for packaging and inventory control, enabling counting into a container or out of a container for bulk operations. Supports a maximum counting resolution to 1:500,000 (minimum APW equal to 0.1d), selectable auto-optimization of average piece weight (APW). APW data can be displayed at any time using a quick key press.

Percent Weighing mode for formulation and mixing applications, with display of reference weight with quick key press.

Dynamic/Animal Weighing with selectable averaging times from 0-60 seconds.

Checkweighing function for count and weight checking, with display of results using LCD display and red/yellow/green LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range. Target values can be displayed at any time using a quick key press.

Display Hold mode for weighing large packages, holds last stable weight on display until cleared manually or automatically

The Defender 7000 weighs in one or more user-selectable units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit

Supports GMP/GLP data output with date, time user ID, project ID and scale ID. The Defender 7000 features selectable print options for data and print format

To limit operator access to functions, the Defender 7000 offers both software lockouts for menu items as well as individual key functions.

Library storage for up to 255 memory records that may contain data from a combination of different modes. These reference data can be quickly and conveniently recalled for use with the active mode.

Multi-language feature allows the user to display operation and menu text in the language of their choice: English, Spanish, French, German, Italian. This allows for convenience and ease of training and operation of the Defender 7000.

Accumulation mode with statistics feature allows totalizing weight and count values manually or automatically. The total accumulated value is displayed in real-time. With the press of the “Info” key, the number of weighments, average, standard deviation, minimum, maximum and difference are displayed. These statistical values can also be printed.

Dual scale connections are built-in for 2-scale counting configuration. Connect two bases, a higher resolution base to optimize average piece weight, in conjunction with a large capacity base to weigh/count in bulk.

Store, view and print over 262,000 date and time-stamped weighing results with the optional Alibi memory kit.

Defender 7000 Semi-Washdown Scales Specifications
Models	D71P10WR3	D71P25WR3	D71P50WL4	D71P100WL4	D71P250WX4

Capacity (max) x Default Readability (d)	25lb x 0.002lb 400oz x 0.05oz 25lb : 0.05oz 10kg x 0.001kg 10000g x 1g	50lb x 0.005lb 800oz x 0.1oz 50lb x 0.1oz 25kg x 0.002kg 25000g x 2g	100lb x 0.01lb 1600oz x 0.2oz 100lb : 0.2oz 50kg x 0.005kg 50000g x 5g	250lb x 0.02lb 4000oz x .5oz 250lb : .5oz 100kg x 0.01kg 100000g x 10g	500lb x 0.05lb 8000oz x 1oz 500lb : 1oz 250kg x 0.02kg 250000g x 20g
Maximum Displayed Resolution	1:12500	1:12500	1:10000	1:12500	1:12500
Capacity x Certified/Approved Readability	25 lb x 0.005 lb 10 kg x 0.002 kg	50 lb x 0.01 lb 25 kg x 0.005 kg	100 lb x 0.02 lb 50 kg x 0.01 kg	250 lb x 0.05 lb 100 kg x 0.02 kg	500 lb x 0.10 lb 250 kg x 0.05 kg
Maximum Certified Resolution	1:5,000	1:5,000	1:5,000	1:5,000	1:5,000
Indicator Model	T71P
Column	13.8 in / 350 mm stainless steel		26.8 in / 680 mm stainless steel
Construction	ABS plastic indicator, stainless steel removable weighing platform, loadcell, column and base construction
Safe Overload Capacity	150% of maximum capacity
Protection	Dry use for indicator, IP67 loadcell
Weighing Units	lb, oz, lb:oz, kg, g, custom unit
Modes/Features	Static Weighing (single or dual range), Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold, Accumulation, Library
Display	6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight
Keypad	Positive feedback membrane keys, 5 function keys and alpha-numeric keypad
Stabilization Time	Within 2 seconds
Auto-zero Tracking	Off, 0.5, 1 or 3 d
Zeroing Range	2% or 100% of capacity
Calibration	Span: 1kg or 1lb to 100% of capacity / Linearity: 3 or 5 point
Power	100-240 VAC / 50-60Hz internal universal power supply / 6 ‘C’ cell batteries (not supplied) with 80 hour life
Interface	RS232 and external tare Input
Operating Temperature Range	14°F to 104°F / -10°C to 40°C
Shipping Dimensions (L x W x H)	19.3 x 16.1 x 17.3 in 490 x 410 x 440 mm		31.2 x 23.6 x 9.5 in 810 x 600 x 240 mm		39.4 x 29.9 x 9.8 in 1000 x 760 x 250 mm
Scale Dimensions (W x H1 x H2 x D1 x D2)	12 x 3.7 x 23.2 x 12 x 16.7 in 305 x 95 x 590 x 305 x 425 mm		18 x 4.5 x 37 x 18 x 22.7 in 457 x 115 x 940 x 457 x 577 mm		24 x 5.4 x 37 x 24 x 28.7 in 610 x 137 x 940 x 610 x 730 mm
Net Weight	32.4 lb / 14.7 kg		66.6 lb / 30.2 kg		83.8 lb / 38.0 kg
Shipping Weight	37.7 lb / 17.1 kg		71.4 lb / 32.4 kg		97.9 lb / 44.4 kg
