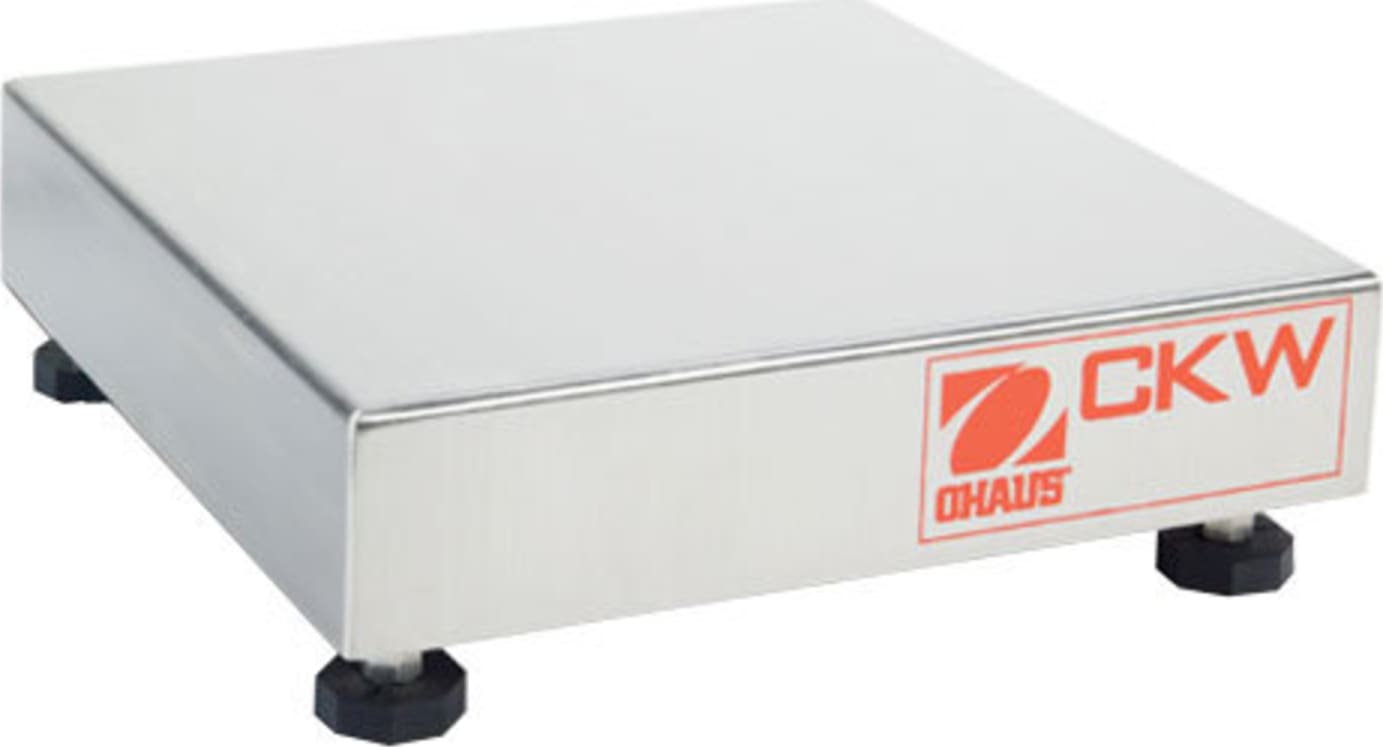

| CKW Series Checkweighing Scale Base Specifications |
| |
![]() |
![]() |
![]() |
![]() |
Capacity (max) x
Enhanced
Readability |
6 lb x .001 lb
96 oz x 0.02 oz
6 lb x 0.02 oz
3 kg x 0.5g |
15 lb x .002 lb
240 oz x 0.05 oz
16 lb x 0.05 oz
6 kg x 1 g |
30 lb x .005 lb
480 oz x 0.1 oz
30 lb x 0.1 oz
15 kg x 2 g |
60 lb x .01 lb
960 oz x 0.2 oz
60 lb x 0.2 oz
30 kg x 5 g |
Maximum Displayed
Resolution |
1:6,000 |
1:7,500 |
1:7,500 |
1:6000 |
Capacity (max) x
Approvable Readability |
6 lb x 0.002 lb
3 kg x 0.001 kg |
15 lb x 0.005 lb
6 kg x 0.002 kg |
30 lb x 0.01 lb
15 kg x 0.005 kg |
60 lb x 0.02 lb
30 kg x 0.01 kg |
| Approval Resolution |
1:3000 |
1:3000 |
1:3000 |
1:3000 |
Platform Dimensions
(WxDxH) |
10 x 10 x 2.3 in /
254 x 254 x 57.5 mm |
12 x 12 x 2.3 in /
305 x 305 x 57.5 mm |
12 x 12 x 2.7 in /
305 x 305 x 69.5 mm |
| Load Cell Capacity |
6 kg |
10 kg |
30 kg |
50 kg |
| Safe Overload Capacity |
150% of rated capacity |
| Protection |
Load Cell: IP67, Indicator: NEMA 4X / IP66 |
| Column |
Tubular 304 Stainless Steel 300 mm / 11.8 in Fixed Height with Indicator and Base Mounting Brackets |
| Weighing Units |
kg, lb, g, oz, lb:oz, % |
| Weight Display |
3 / 4 in / 20 mm High 6-digit, 7-segment LED |
| Checkweigh Indication |
24-segment LED (3 color x 8) Bar Graph, Audible Beeper and LED Display with Multiple User Setups |
| Keyboard |
Numeric, 7 Function keys with dedicated Tare and Target Entry Buttons, Raised Tactile Membrane Switch |
| Stabilization Time |
Within 2 Seconds |
| Auto-zero Tracking |
Off, .5, 1 or 3 Divisions |
| Zeroing Range |
2%, 18% or 100% of Capacity |
| Span Calibration |
1 lb / kg to 100% of Capacity |
| Power |
100-240 VAC/50-60Hz Universal Power Supply with Hardwired Cord/Optional: Internal Rechargeable NiMH Battery(10-hour life) |
| Interface |
Built-in RS232 and External Remote Input / Optional: RS485/422, Relay Output |
| Operating Temperature Range |
14°F to 104°F / -10°C to 40°C |
| Net Weight |
5.1kg / 11.2lb |
6.2kg / 13.2lb |
8.3kg / 18.3lb |
9.3kg / 20.5lb |
Shipping
Dimensions
(W x D x H) |
19.1 x 15.3 x 16.1 in /
485 x 390 x 410 mm |
19.1 x 15.3 x 16.1 in /
485 x 390 x 410 mm |
19.1 x 15.3 x 16.1 in /
485 x 390 x 410 mm |
19.1 x 15.3 x 16.1 in / 485 x 390 x 410 mm |
| Shipping Weight |
Net Weight- 5.1kg
Gross Weight- 7kg |
Net Weight- 6.2kg
Gross Weight- 8.1kg |
Net Weight- 8.3kg
Gross Weight- 10.3kg |
Net Weight- 9.3kg
Gross Weight- 11.3kg |
