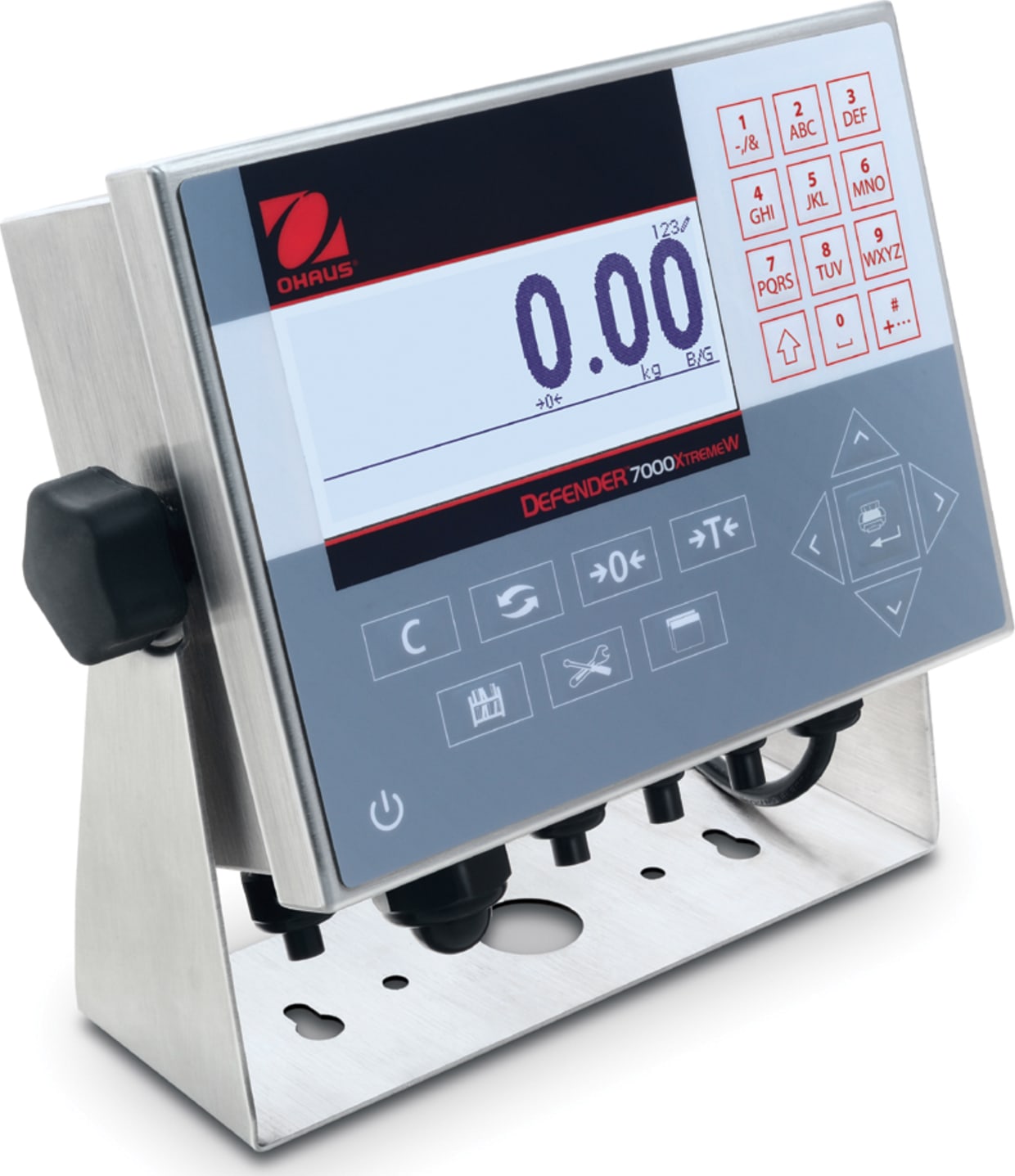

| Model: T72XW Specifications |
| Capacity |
Up to 998000 (t, kg, g or lb) |
| Maximum Displayed Resolution |
1:50,000 |
| Maximum Approved Resolution |
1:10,000 (NTEP, Measurement Canada); 1:6,000 (EC, OIML) |
| Weighing Units |
kg, lb, oz, lb-oz, g, ton, t |
| Weighing Modes |
Animal Weighing, Parts Counting, Checkweighing |
| Display |
Transflective graphic LCD with white backlight, 240 x 96 pixels |
| Under/Accept/Over indicators |
3 Zones, up to 25 targets |
| Controls |
8 function, 4 navigation, 12 alpha numeric membrane switches |
| Ingress Protection |
IP66 |
| Load Cell Excitation Voltage |
10 VDC |
| Load Cell Drive |
Up to 10 × 350 ohm load cells |
| Load Cell Input Sensitivity |
Up to 3 mV/V |
| Stabilization Time |
Within 2 seconds |
| Auto-Zero Tracking |
Off, 0.5d, 1d, 3d or 10d |
| Zeroing Range |
+/-2% or +/-20% of capacity |
| Interfaces |
RS232 (included), SD card (included), Ethernet (optional), USB with Discrete I/O (optional), Second RS232/RS485 (optional) |
| Operating Temperature Range |
14 °F to 104 °F / -10 °C to 40 °C |
| Main Power |
100-240 V ~ 0.15 A 50/60 Hz internal power supply |
| Housing dimensions (W x D x H) 1 |
1.1 x 3.4 x 9.1 in / 283 x 86 x 232 mm |
| Net weight |
6.6 lb / 3 kg |
| Shipping weight |
7.5 lb / 3.4 kg |
| Shipping Dimensions |
13W x 9.5D x 7H in / 324W x 240D x 187H mm |
