| Model |
R71MD3 |
R71MD6 |
R71MD15 |
R71MD35 |
R71MD60 |
| Capacity × Readability |
3 kg × 0.00005 kg
3,000 g × 0.05 g
6 lb × 0.0001 lb
96 oz × 0.002 oz |
6 kg × 0.0001 kg
6,000 g × 0.1 g
15 lb × 0.0002 lb
240 oz × 0.005 oz |
15 kg × 0.0002 kg
15,000g × 0.2 g
30 lb × 0.0005 lb
480 oz × 0.01 oz |
35 kg × 0.0005 kg
35,000 g × 0.5 g
70 lb × 0.001 lb
1,120 oz × 0.02 oz |
60 kg × 0.001 kg
60,000 g × 1 g
150 lb × 0.002 lb
2,400 oz × 0.05 oz |
| Maximum Displayed Resolution |
1:60,000 |
1:75,000 |
1:75,000 |
1:70,000 |
1:75,000 |
| Internal Counting Resolution |
1: 1,200,000 |
1: 1,500,000 |
1: 1,500,000 |
1: 1,400,000 |
1: 1,500,000 |
| Certified Capacity × Readability |
3 kg × 0.0005 kg
3,000 g × 0.5 g
6 lb × 0.001 lb
96 oz × 0.02 oz |
6 kg × 0.001 kg
6,000 g × 1 g
15 lb × 0.002 lb
240 oz × 0.05 oz |
15 kg × 0.002 kg
15,000g × 2 g
30 lb × 0.005 lb
480 oz × 0.1 oz |
35 kg × 0.005 kg
35000 g × 5 g
70, lb × 0.01 lb
1,120 oz × 0.2 oz |
60 kg × 0.01 kg
60,000 g × 10 g
150 lb × 0.02 lb
2,400 oz × 0.5 oz |
| Certified/Approved Resolution |
1:6,000 |
1:7,500 |
1:7,500 |
1:7,000 |
1:7,500 |
| Linearity/Repeatability |
±2d |
| Base Housing Dimensions (W × D × minH) |
280 × 280 × 114 mm/11 × 11 × 4.5 in |
377 × 311 × 128 mm/14.9 × 12.2 × 5 in |
| Platform Dimensions (W × D × H) |
280 × 280 × 31 mm/11 × 11 × 1.2 in |
377 × 311 × 48mm/14.8 × 12.2 × 1.9 in |
| Net Weight |
6.8 kg / 15 lb |
9.9 kg / 21.8 lb |
| Shipping Weight |
8.5 kg / 18.7 lb |
13.4 kg / 29.5 lb |
| Shipping Dimensions |
605 × 405 × 244 mm / 23.8 × 15.9 × 9.6 in |
665 × 525 × 330 mm / 26.2 × 20.7 × 13 in |
| Calibration |
Span or Linear |
| Battery Life |
12 hours continuous use |
| General Specifications |
| Weighing Units |
kg, g, lb, oz, lb:oz |
| Application Modes |

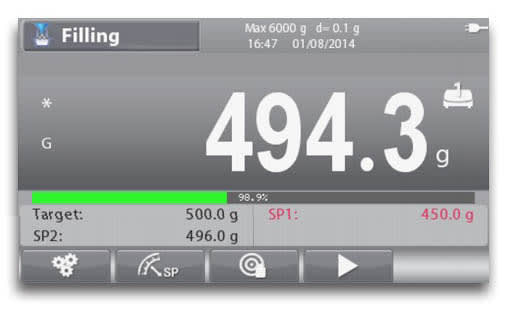

Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling, Formulation, Differential Weighing, Density Weighing |
| Display |
4.3" TFT Graphic LCD |
| Keypad |
8 function, 5 quick, 12 numeric membrane keys |
| Construction |
Stainless Steel Platform, Die Cast Housing |
| Protection |
IP54 |
| Stabilization Time |
1 second |
| Zeroing Range |
2% or 10% of Capacity |
| Safe Overload Capacity |
150% of capacity |
| Interface |

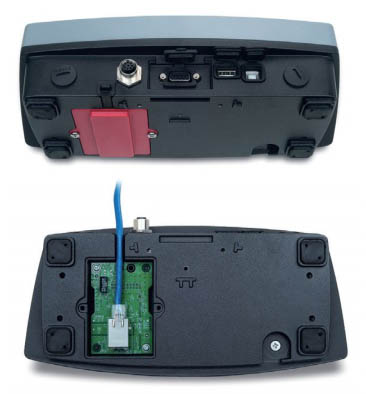

Standard RS232, USB Device, USB Host Optional Ethernet, 2 nd RS232, Remote Base, 2 In/4 Out digital I/O |
| Power |
100-240 VAC / 50/60 Hz Universal Power Supply, rechargeable lithium battery (Optional) |
| Display Dimensions (W × D × H) |
267 × 118 × 72 mm / 10.5 × 4.6 × 2.8 in |
