Models |
R41ME3 |
R41ME6 |
R41ME15 |
R41ME30 |
Capacity (max) × Readability (d) |
3 × 0.0001 kg
3,000 × 0.1 g
6 × 0.0002 lb
96 × 0.005 oz |
6 × 0.0002 kg
6,000 × 0.2 g
15 × 0.0005 lb
240 × 0.01 oz |
15 × 0.0005 kg
15,000 × 0.5 g
30 × 0.001 lb
480 × 0.02 oz |
30 × 0.001 kg
30,000 × 1 g
60 × 0.002 lb
960 × 0.05 oz |
Certified Capacity × Readability |
3 × 0.001 kg
3,000 × 1 g
6 × 0.002 lb
96 × 0.05 oz |
6 × 0.002 kg
6,000 × 2 g
15 × 0.005 lb
240 × 0.1 oz |
15 × 0.005 kg
15,000 × 5g
30 × 0.01 lb
480 × 0.2 oz |
30 × 0.01 kg
30,000 × 10 g
60 × 0.02 lb
960 × 0.5 oz |
Maximum Displayed Resolution |
1:30,000 |
Certified/Approved Resolution |
1:3,000 |
Construction |

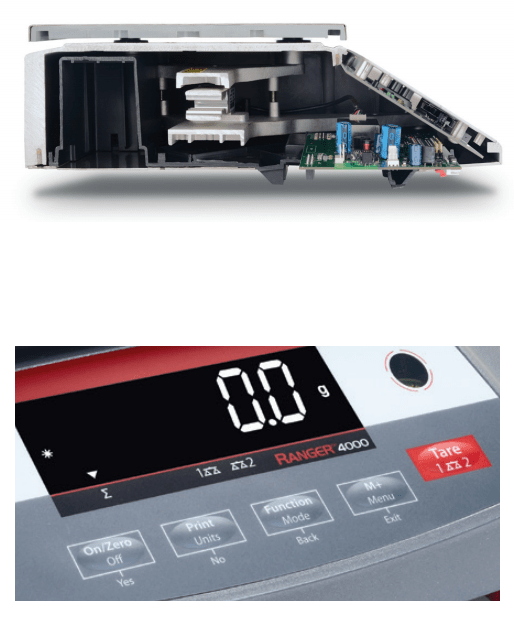

Stainless steel platform, Die cast aluminum housing |
Weighing Units |
kg, g, lb, oz, lb:oz |
Application Modes |
Weighing, Percent Weighing, Parts Counting, Checkweighing, Checkcounting, Checkpercent, Accumulation, Dynamic Weighing/Display Hold |
Display |
1.5-inch / 40mm high White LED display, 6-digit, 7-segment |
Checkweighing Indicators |
3 LED (yellow, green, red) with configurable operation and alert beeper |
Keyboard |
5 mechanical keys |
Zero Range |
4% or 20% of full scale capacity |
Tare Range |
Full capacity by subtraction |
Stabilization Time |
1 second |
Auto-Zero Tracking |
Off, 0.5, 1 or 3 divisions |
Safe Overload Capacity |
150% of capacity |
Power |

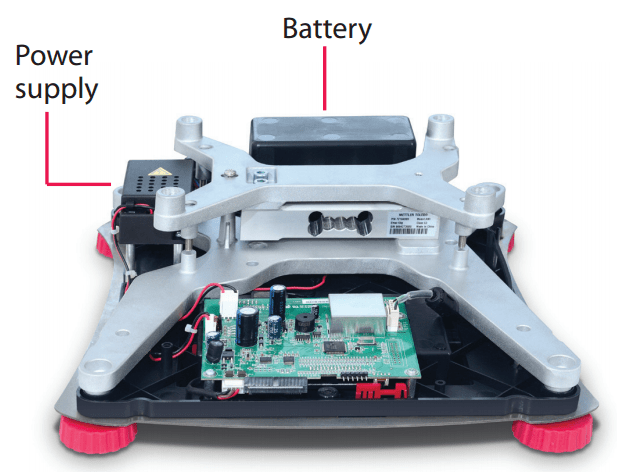

100-240 VAC / 50-60 Hz internal universal power supply, internal rechargeable lead acid battery |
Battery Life |
00 hours continuous use with 12 hour recharge time |
Calibration |
External, with user-selectable calibration weight |
Interface |

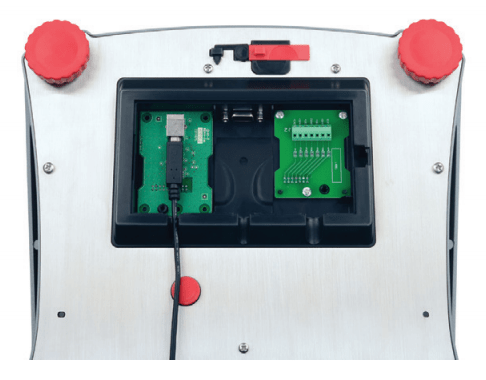

Built-in RS232, optional 2nd platform, 2nd RS232, USB, Ethernet |
Operating Temperature Range |
14°F to 104°F / -10°C to 40°C |
Platform Size (W × L) |
11.8 × 8.9 in / 300 mm × 225 mm |
Scale Dimensions (W × L × H) |
12.4 × 12.9 × 4.8 in / 315 × 327 × 122 mm |
Shipping Dimensions (W × L × H) |
15.6 × 17.6 × 7.7 in / 397 × 447 × 195 mm |
Net Weight |
13 lb / 5.9 kg |
Shipping Weight |
15.9 lb / 7.2 kg |
