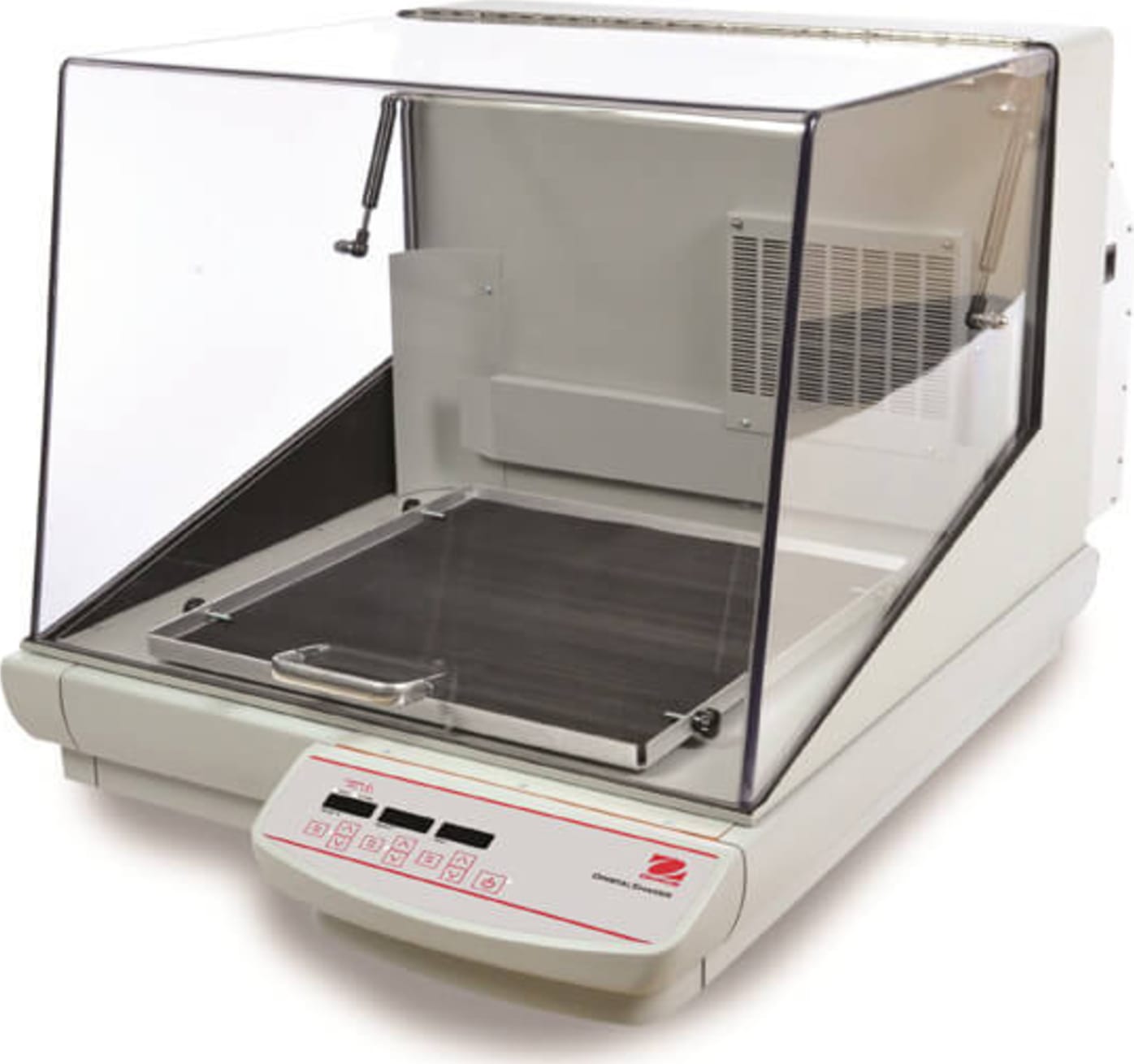

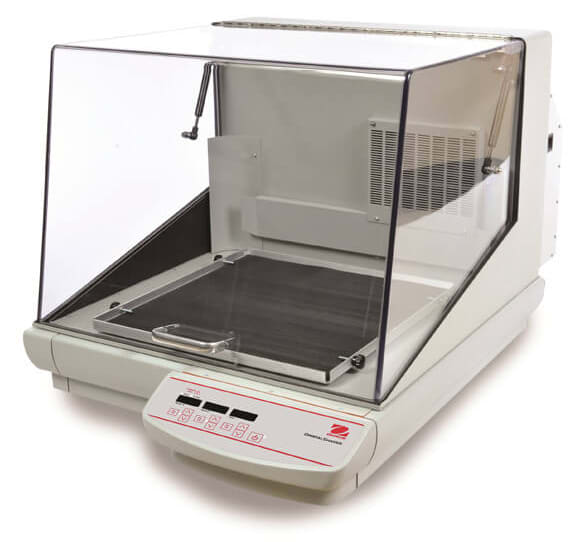

Ohaus ISHD23HDG - Incubating Heavy Duty Orbital Shakers, Orbital, 25 mm

Name: Ohaus ISHD23HDG - Incubating Heavy Duty Orbital Shakers, Orbital, 25 mm
Brand: Ohaus
SKU: OhausISHD23CDG
Price: 10405.06 USD
Availability: InStock

0 reviews | Catalog: 30573779 | Model: Ohaus ISHD23CDG

Compare

Incubating Shaker ISHD23CDG US

Motion: Orbital, 25 mm
Capacity: 50 lb (22.7kg) @ 125 rpm, 10 lb (4.53kg) @ 500 rpm
Temperature Range: 15°C below Ambient - 65°C
Temperature calibration
Overload protection
Overshoot protection (temperature)
Load sensor
PID temperature controller
Triple Eccentric Drive system

View Product Details

List Price: $10,960.00

Your Price: $10,405.06

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Ohaus ISHD23CDG Incubating Shaker ISHD23CDG US	Ohaus ISHD16HDG Incubating Shaker ISHD16HDG US	Ohaus ISHD23HDG Incubating Shaker ISHD23HDG US
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Ohaus ISHD23HDG - Incubating Heavy Duty Orbital Shakers, Orbital, 25 mm

Motion: Orbital, 25 mm
Capacity: 50 lb (22.7kg) @ 125 rpm, 10 lb (4.53kg) @ 500 rpm
Temperature Range: 15°C below Ambient - 65°C
Temperature calibration
Overload protection

Save Incubator Space with Benchtop Incubating and Incubating Refrigerating Shakers Incubating Heavy Duty Orbital Shakers offer exceptional temperature uniformity and are designed for a variety of shaking and incubating applications.

Unique Features Include:

The exclusive Opti-Flow Forced Ventilation System utilizes twin induction or a single large fan. Air is deflected around & not directly on samples, creating a circular flow of air ensuring uniformity.
For repeatable results, the exclusive Accu-Drive shaking system ensures speed accuracy. The Triple Eccentric Drive provides consistent shaking motion throughout the entire speed range.
The chambers for the ISHD23HDG and ISHD23CDG units are large enough to hold 2 x 6 L Erlenmeyer flasks with optional clamps and platform.

The exclusive Opti-Flow Forced Ventilation System utilizes twin induction or a single large fan. Air is deflected around & not directly on samples, creating a circular flow of air ensuring uniformity.

The chambers for the ISHD23HDG and ISHD23CDG units are large enough to hold 2 x 6 L Erlenmeyer flasks with optional clamps and platform.

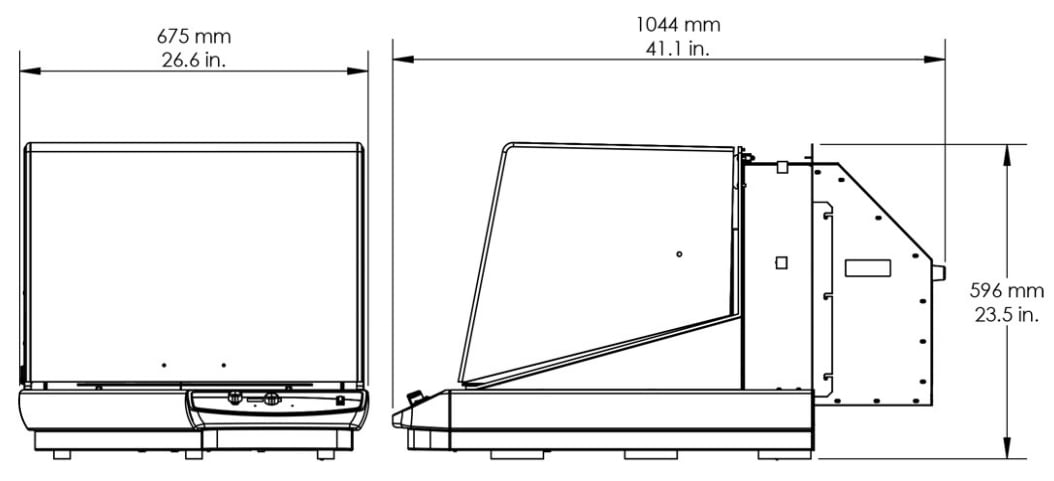

Dimensional Drawing

Motion	Orbital, 25 mm
Capacity	50 lb (22.7kg) @ 125 rpm, 10 lb (4.53kg) @ 500 rpm
Temperature Range	15°C below Ambient – 65°C
Uniformity	± 0.5°C at 37°C
Speed Range	15 rpm – 500 rpm
Tray Size (LxW)	18 in x 18 in (457 mm x 457 mm)
Calibration	Temperature calibration
Communication	RS232
Control	Digital
Dimensions	23.5 in x 32.1 in x 26.6 in (596 mm x 815 mm x 675 mm) (HxLxW)
Drive System	Triple Eccentric; Brushless DC Motor
Inner Dimensions (HxHxLxLxWxW)	17 in x 432 mm x 20.6 in x 523 mm x 24.8 in x 629 mm
Net Weight	290.41 lb (131.7 kg)
Power	120V, 10A, 50/60Hz
Power Consumption	800 W
Safety Certification	TUV
Speed Accuracy	Above 100rpm +/- 1%, Below 100rpm /- 1 rpm
Speed Range	15 rpm – 500 rpm
Timer	1 second – 160 hours
Tray Construction	Aluminum
Working Environment	59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing)
